Ai-Thinker Ra-01SC LLCC68 433MHz LoRa Module

Product detailed description

Developed by Ai-Thinker (the manufacturer of the ESP module), this Ra-01SC LoRa module is for your IoT long range projects.

Based on LLCC68 chip, LLCC68 has high sensitivity above -123dBm, output power +22dBm, long transmission range and high reliability. The Ra-01SC module is mainly used for ultra-long-range spread spectrum communications, compatible with FSK long-range modulation and demodulation technology.

Specifications:

• Frequency range: 410-525MHz
• Support for FSK, GFSK, MSK, GMSK, LoRa™ and OOK mode
• Communication interface:SPI
• Maximum transmission power: +22dBm
• Data transfer rate: <300 kbps
• Crystal frequency: 32 MHz
• High sensitivity: from -129 dBm
• Stand-by Current in sleep mode: 0.2uA
• Current receiving: < 4.2mA
• Transmission current: max. 140mA
• Working voltage: 2.7~3.6V
• Operating temperature: -40°C ~+85°C
• Spacing: 2.0 mm
• Range: 2.8km
• Dimensions: 17x16x3.2xmm

Included in delivery:

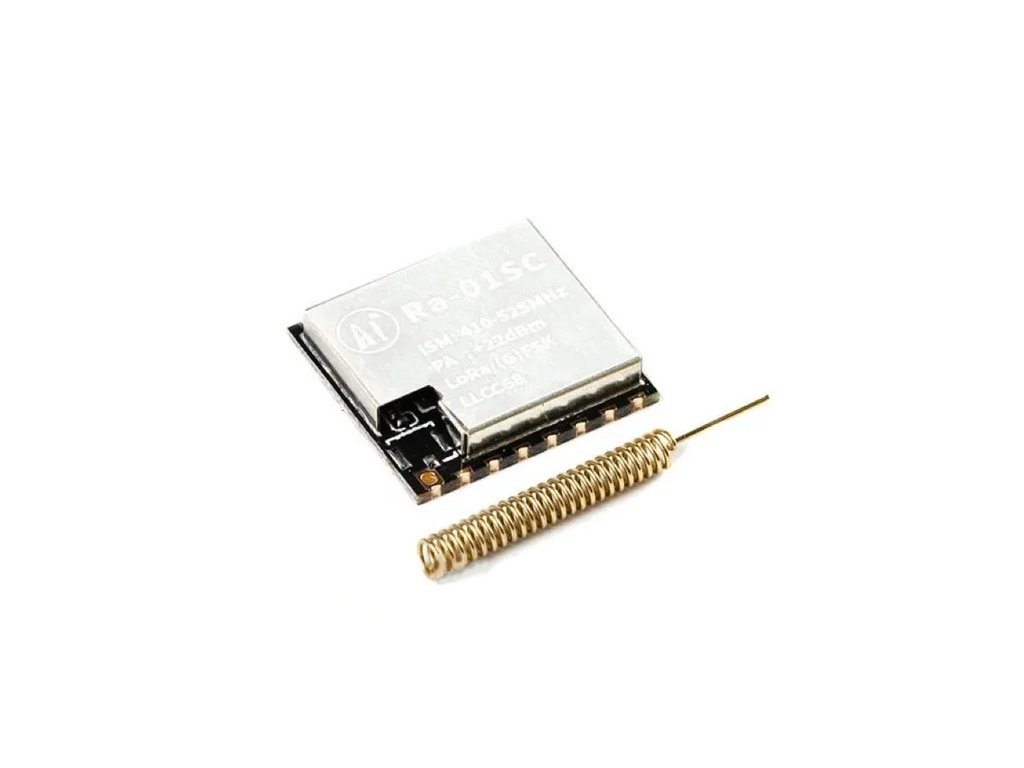

• 1pc Ai-Thinker Ra-01SC LLCC68 433MHz LoRa module
• 1pc Antenna

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
