Miniware TS101 65W Soldering Pen, Deluxe Set
Code: DD240106



Related products
Product detailed description

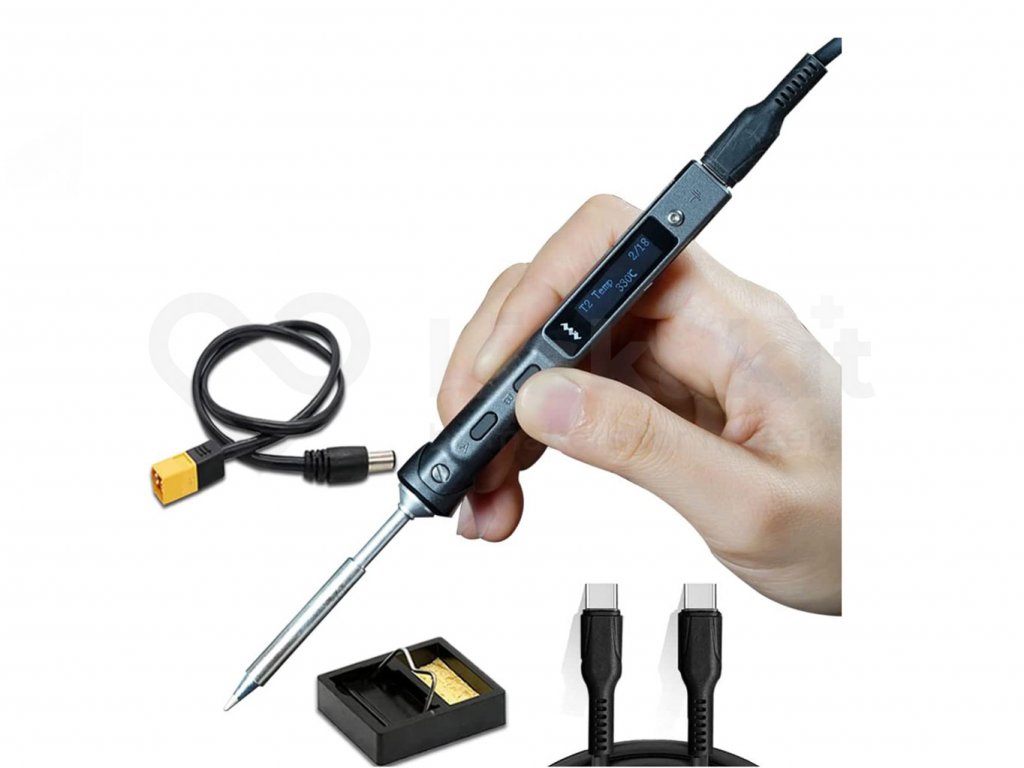

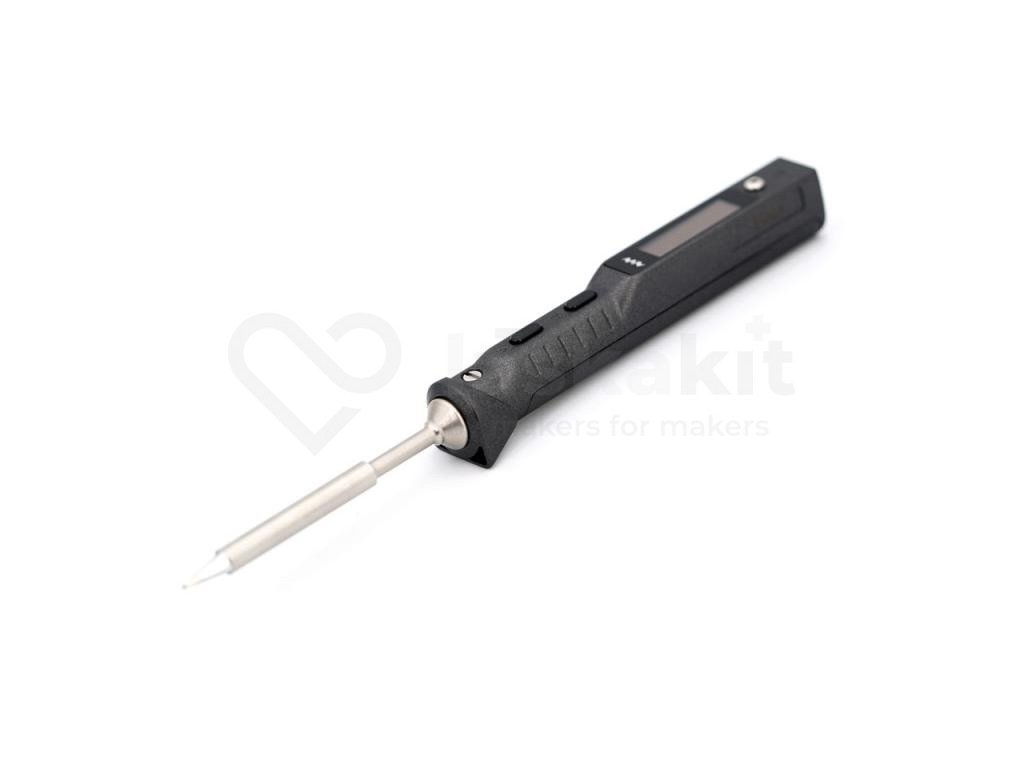

The TS101 is a compact and powerful tool for soldering electronic components, both THT and SMD. Like the TS80, this micro soldering iron is equipped with an OLED display and a control unit with up to 65 W of power, allowing fast and accurate soldering.
The main advantage of the TS101 microsolder is its modularity and the possibility of upgrading and customization. You can choose from many different types of tips and other accessories that allow you to use this microsolder for different types of soldering. For example, you can buy a special tip for soldering SMD components or a special cover for greater thermal protection. It is also widely supported by the 3D printing community and countless accessories can be printed on a 3D printer.
The TS100 microsolder is also very easy to use, thanks to its intuitive controls and low weight. In addition, like the TS80 microsolder, it can be powered from a USB port, allowing use from a portable power bank.
Overall, the TS100 microsolder is an excellent tool for soldering electronic components and offers excellent modularity and adaptability for different types of soldering.
Specifications:
| Features: | Value |
|---|---|
| Power | DC 9-65W, PD3.0 45W |
| Voltage | DC 9-24, PD3.0 9-20V |
| Temperature range | 50-400 °C |
| Temperature stability | ±2% |
| Soldering tip | tS-BC2 is included in the kit, easily replaceable |
| Display | OLED |
| Tip to ground resistance | <2Ω |
| Dimensions (length x diameter) | 168 x 16.5 mm |
| Weight | 33 g |

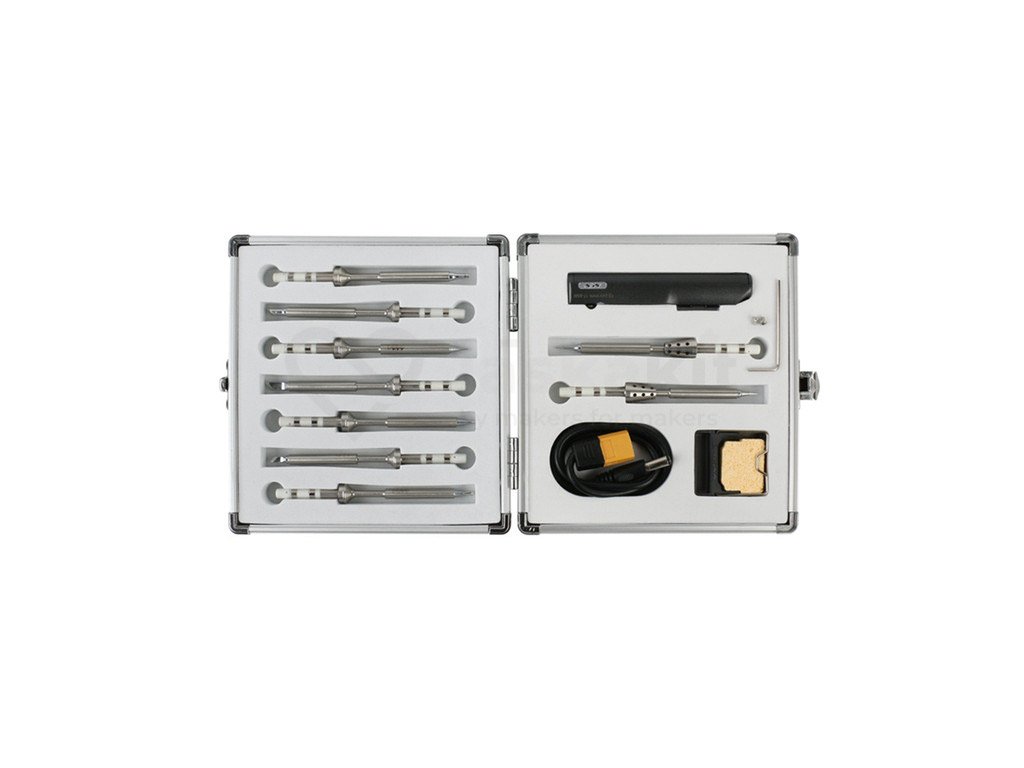

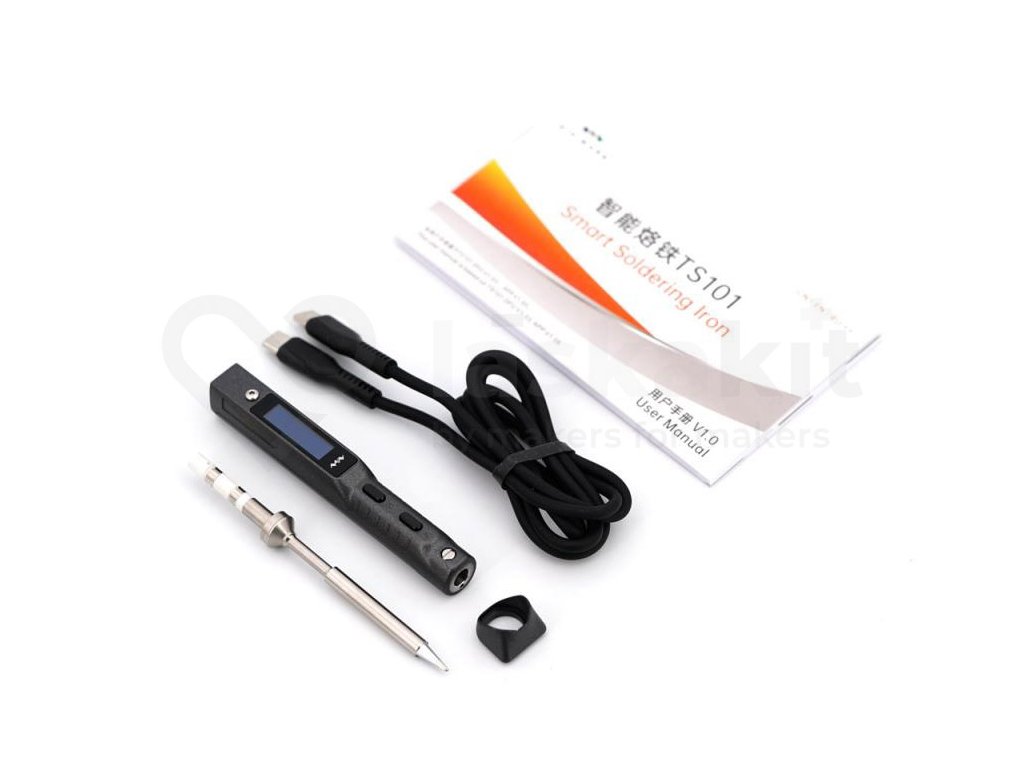

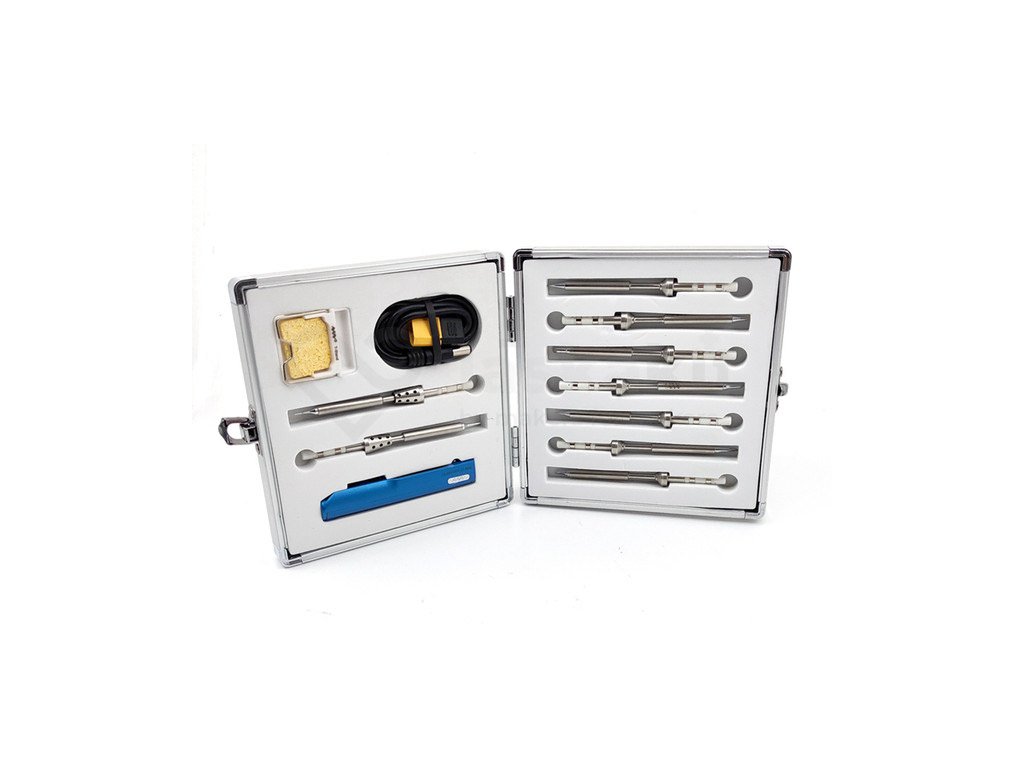

Included in delivery:
- 1pc Miniware TS101 65W soldering iron
- 9 pcs of Tip
- 1pc Power USB-C silicone cable
- 1pc Power DC-XT60 silicone cable
- 1pc Stand for soldering iron
- 1pc Aluminum box
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.597 kg |
