YHDAA YHD-M800D Barcode Scanner, 1D/2D Codes Reader

Product detailed description

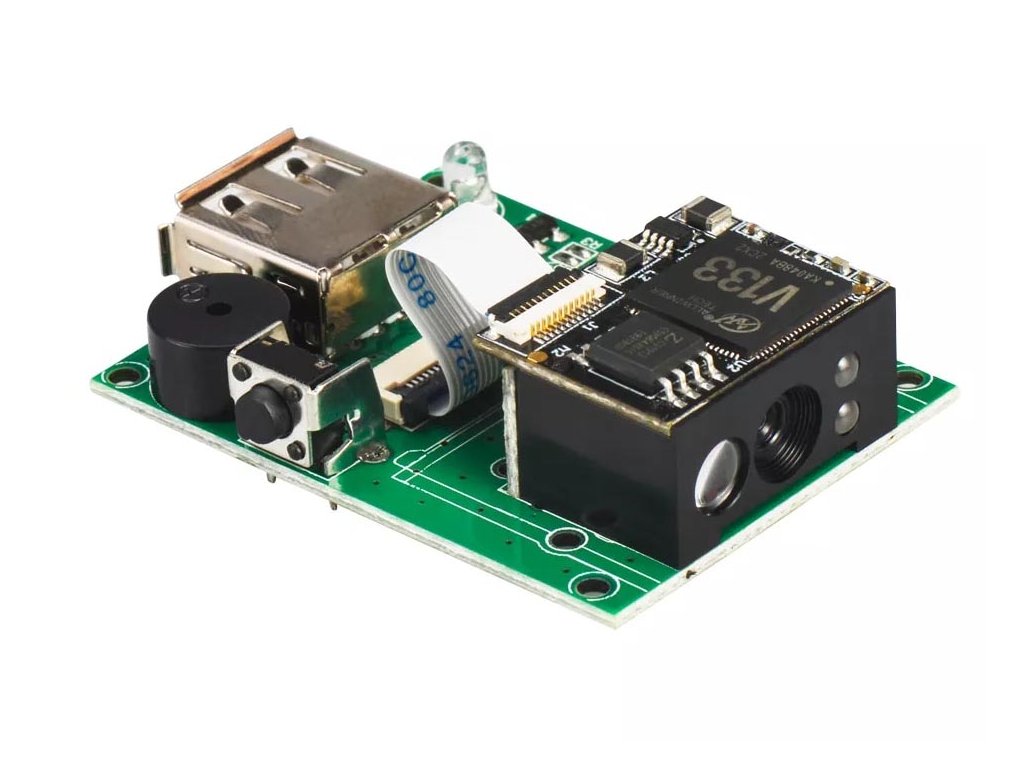

It is a small 1D/2D code reader that uses an intelligent image recognition algorithm to quickly and accurately decode a barcode or 2D code on paper or screen.

Using the built-in USB interface, it can be directly plugged into a computer or can be easily integrated into various devices.

Function:

• Easy to use, no image recognition knowledge required
• Decodes various common 1D/2D codes such as barcode, QR code, etc.
• Integrated micro USB serial port and UART, allows connection to a computer or devices
• Configurable by scanning the "configuration code"
• Backlight, works in the dark
•

Specifications:

• Operating voltage: 5V
• Operating temperature: 0°C ~ 60°C
• Operating humidity: 5%~95% (non-condensing)
• Communication interface: USB
• Decodes codes:
  • 1D: UPC/EAN, with complementaryUPC/EAN, Code128, Code39, Code39Full ASCII, Codabar, industrial /Interleaved 2 of 5 Code93, MSI, Code11, ISBN, ISSN, China post, GS1Databar, etc.
  • 2D: PDF417, QR, Aztec, DataMatrix, Maxicode, Micro PDF417, etc.
• Light source: white
• Scan angle: roll 360°, yaw ± 65°, pitch ± 60°
• Field of view: 28° (horizontal), 21.5° (vertical)
• Size: 44x33x11mm

Included in delivery:

• 1pc YHDAA YHD-M800D Barcode Scanner, 1D/2D Codes Reader
• 1pc USB-A cable

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
