XY-PWM Frequency generator LCD 0-150kHz 3.3V-30V

Product detailed description

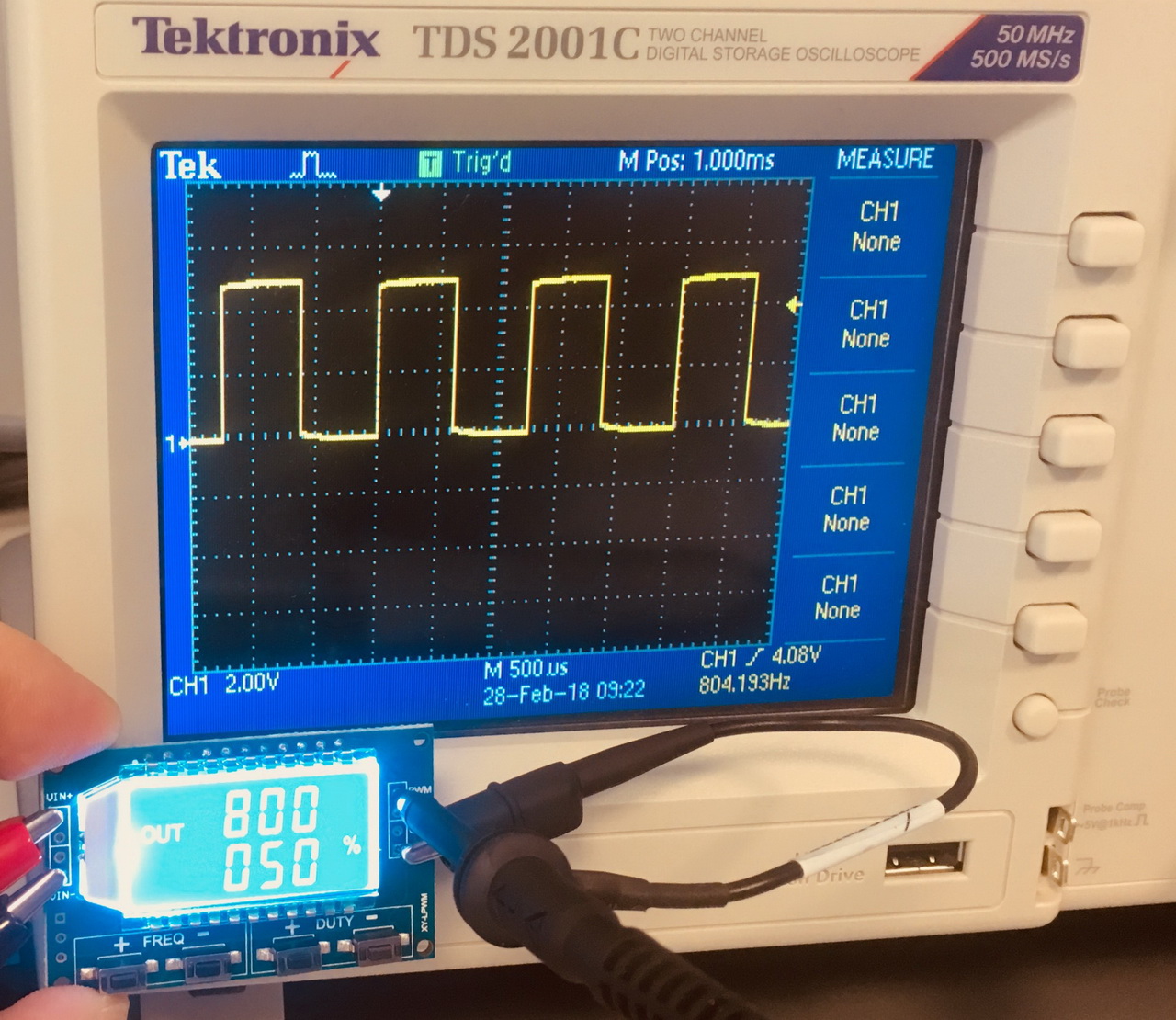

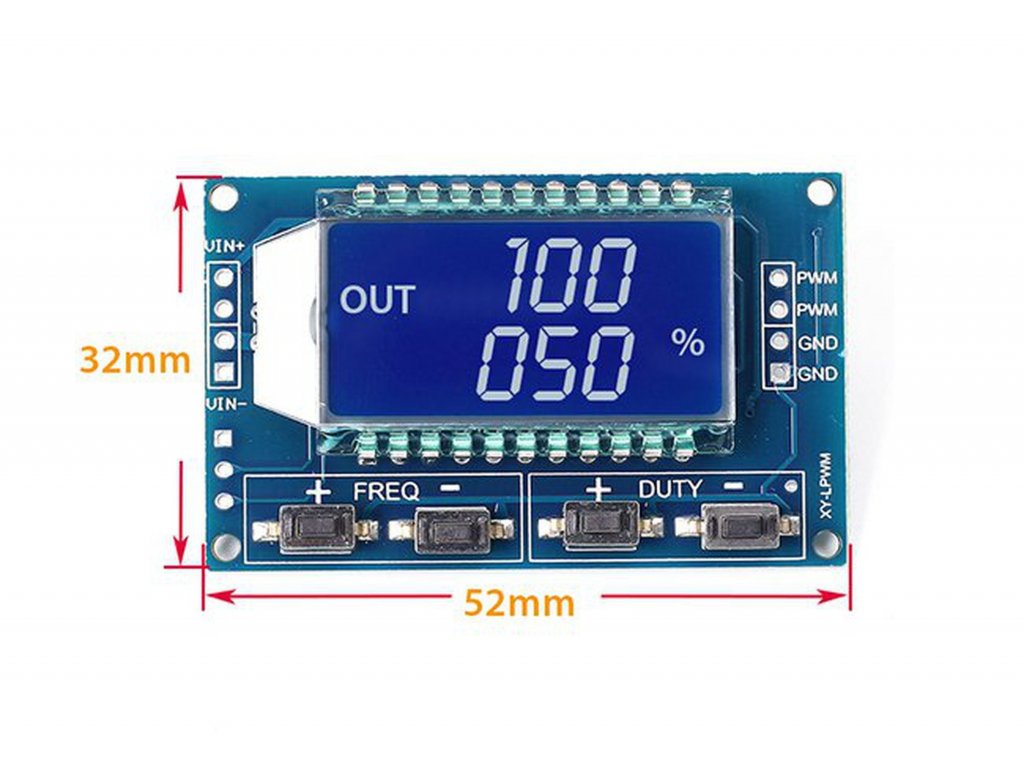

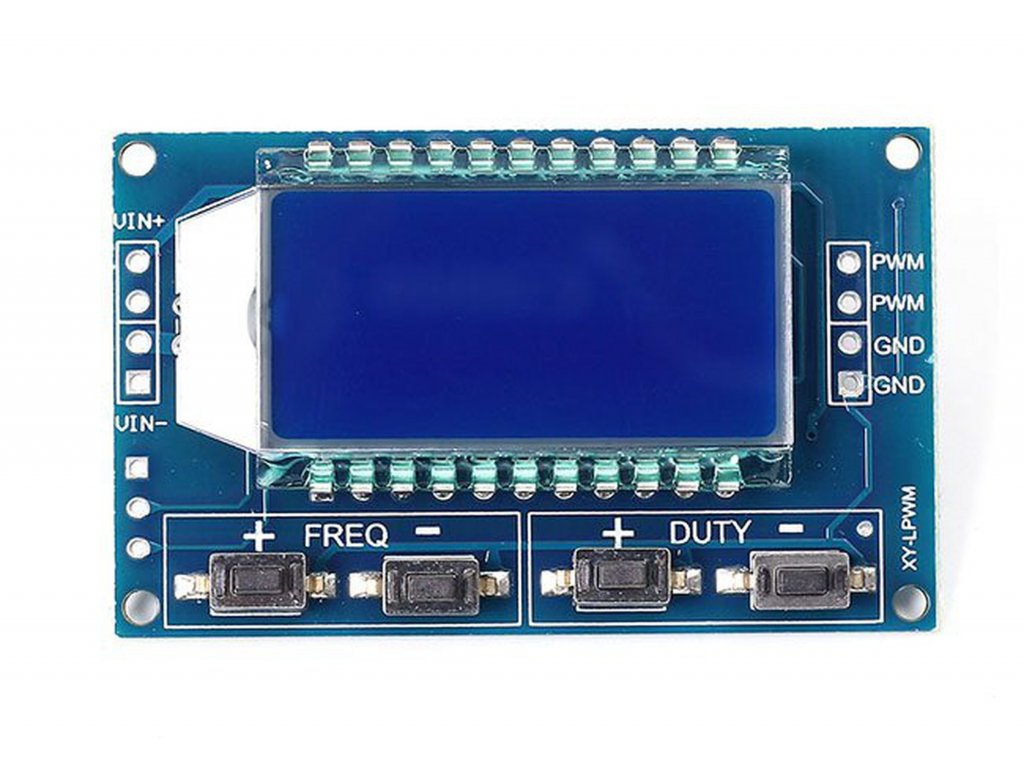

XY-PWM Frequency Generator LCD 0-150kHz 3.3V-30V

PWM output. You can set the frequency and duty cycle. Large frequency range, high accuracy. Serial driving! Feedback.

Frequency is divided into four bands, automatic switching:

1. XXX (no decimal point): smallest unit is 1Hz, range 1Hz - 999Hz;
2. X.XX (decimal point in hundreds) smallest unit is 1.00 KHz, range 1.00 KHz - 9.99 KHz;
3. XX.X (decimal point in tens): smallest unit is 10.0Khz; range 10.0KHz - 99.9KHz
4. X.X.X (three decimal points): smallest unit is 1Khz; range 1KHz - 150KHz

Examples of displayed frequency:

1. "100" indicates that the PWM output pulse is 100Hz
2. "1.01" indicates that the PWM output pulse is 1.01K
3. "54.1" indicates that the PWM output pulse is 54.1kHz
4. "1.2.4" indicates that the PWM output pulse is 124kHz

Parameter setting:

The module has four buttons [FREQ+], [FREQ-], [DUTY+] and [DUTY-] which are used to set the frequency and duty cycle.

Press the buttons to adjust the parameter value (a long press quickly adds or subtracts).

Parameter settings are automatically saved.

Specifications:

• Working voltage: 3.3-30V
• Duty cycle range: 0-100%
• Frequency range: 1Hz-150KHz
• Frequency accuracy: ± 2%
• Output signal current: 5 to 30mA
• Output amplitude: equal to supply voltage
• All set parameters are automatically saved.
• Ambient temperature: -20 to +70°C
• Serial control (UART)
• Dimensions: 52x32mm

Control via UART:

1. Communication standard:

• Transmission speed: 9600 bps
• Data bits: 8
• Stop bits: 1
• Parity bit: none
• Flow control: none

• "F101": set the frequency to 101 HZ (001-999)
• "F1.05": set the frequency to 1.05 KHZ (1.00-9.99)
• "F10.5": set the frequency to 10.5KHZ (10.0-99.9)
• "F1.0.5": set the frequency to 105KHZ (1.0.0-1.5.0)

• "D050": set duty cycle to 50% (001-100)

• They left "read" to read the set parameters.
• Setup successful: DOWN
• Setup failed: FALL

Included in delivery:

• 1pc XY-PWM Frequency Generator LCD 0-150kHz 3.3V-30V

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
