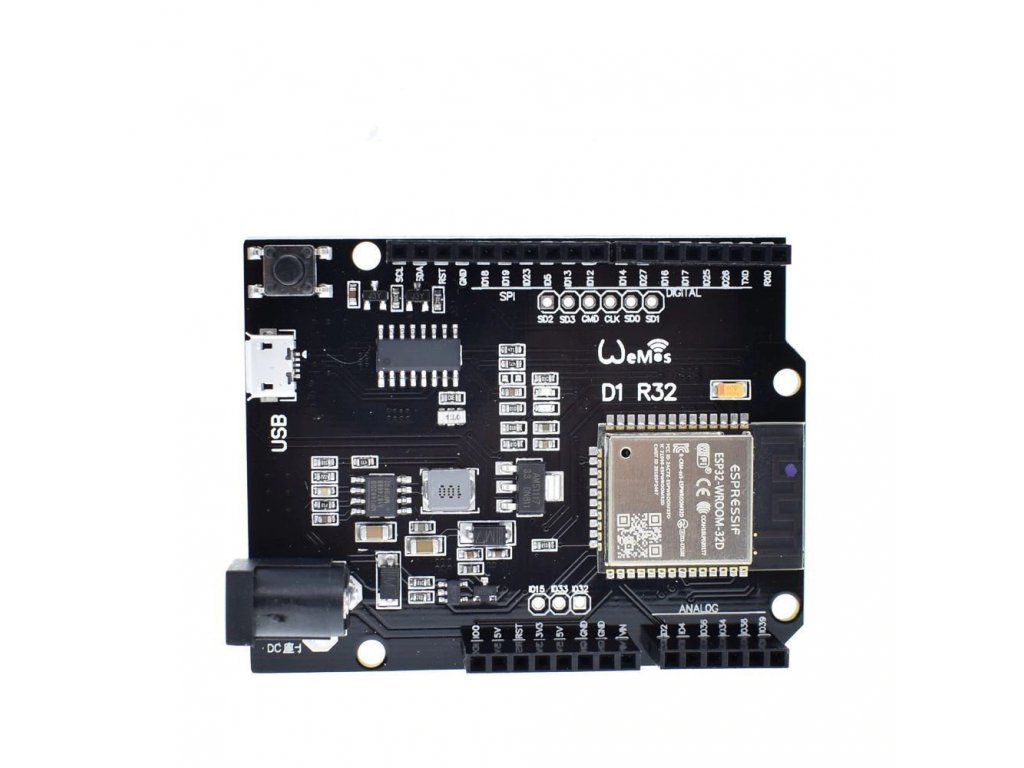

WeMos D1 R32 UNO ESP32
Code: DD100078
Product detailed description
Board integrating wireless WiFi module with ESP-32 chip) and also USB interface from which the module can be powered and programmed. Communication is provided by the CH340 controller. The ESP-32 module itself is equipped with a highly integrated and powerful 32-bit microprocessor with many GPIO pins, that can perform the action according to the programmed code even without using the Arduino control.
The board is compatible with Arduino IDE and NodeMCU.
The board has a USB Micro connector and a USB to serial (UART) converter, making it easy to connect this board to your computer using a USB Micro cable.
Some pieces may have a problem with the standard FLASH - QIO mode setting. If you load the program into the board and it does not run, try selecting Flash Mode: DIO.
These pieces from the new shipment no longer suffer from the power supply problem as mentioned in the discussion for this product. The power supply delivers full 5V and 3.3V.
Specifications(deliberately in the original so that nothing is lost in translation):
| Key Features |
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS Integrated 520 KB SRAM Integrated 802.11 b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP Integrated dual mode Bluetooth (classic and BLE) 4 MB flash, memory-mapped to the CPU code space 2.3V to 3.6V operating voltage -40°C to +125°C operating temperature On-board PCB antenna or IPEX connector for external antenna |
| Sensors |
Ultra-low noise analogue amplifier Hall sensor 10x capacitive touch interfaces 32 kHz crystal oscillator |
| 34x GPIOs |
3 x UARTs, including hardware flow control 3 x SPI 2 x I2S 12 x ADC input channels 2 x DAC 2 x I2C PWM/timer input/output available on every GPIO pin OpenOCD debug interface with 32 kB TRAX buffer SDIO master/slave 50 MHz Supports external SPI flash up to 16 MB SD-card interface support |
|
Security Related |
WEP, WPA/WPA2 PSK/Enterprise Hardware accelerated encryption: AES/SHA2/Elliptical Curve Cryptography/RSA-4096 |
| Performance |
Supports sniffer, Station, SoftAP and Wi-Fi direct mode Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n Minimum receiver sensitivity of -98 dBm 135 Mbps UDP sustained throughput 5 µA power consumption in deep sleep |
Included in delivery:
- 1pc WeMos D1 R32 UNO ESP32
Remark:
- All pins work only at +3.3 volts and any connection of 5 V data pins may destroy the ESP module
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.022 kg |
| Type: | ESP |
| Logical levels: | 3.3V |
| I/O pins: | 18 |
| PWM pins: | 18 |
| ADC pins: | 12 |
| Frequency: | 40MHz |
| Flash memory: | 4MB |
| SRAM memory: | 520kB |
| EEPROM memory: | Ne |
| Connector with battery charger: | No |
| Microcontroller: | ESP32 |
| Converter: | CH340 |
| Bluetooth: | Yes |
| WiFi: | Yes |
-
