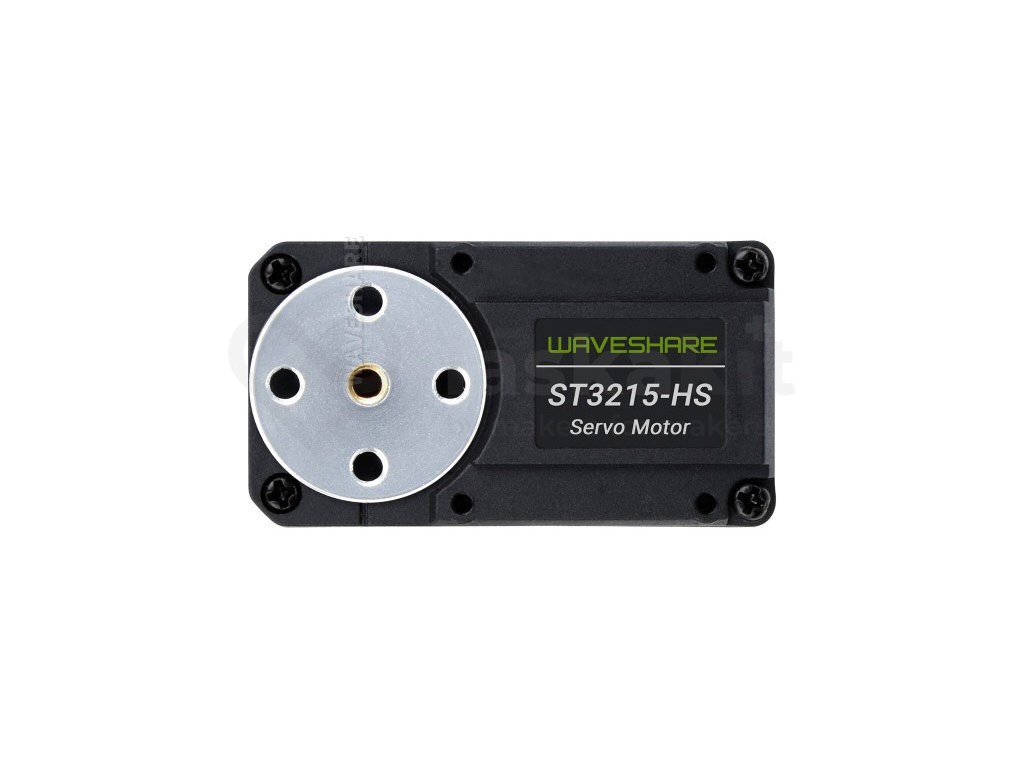

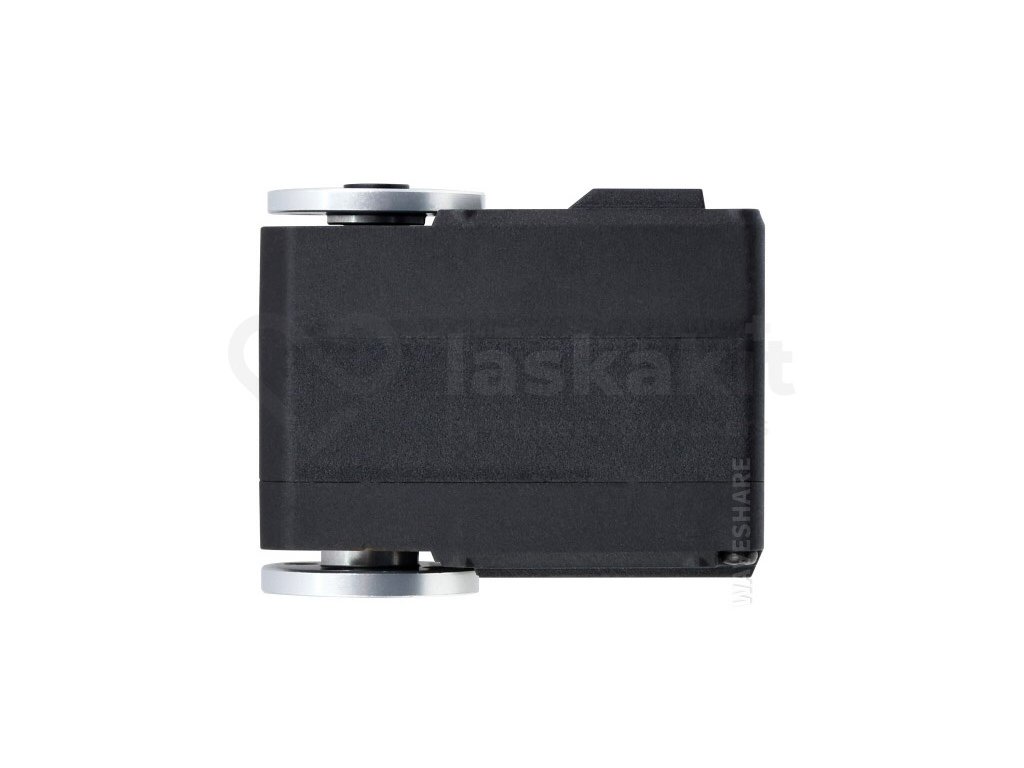

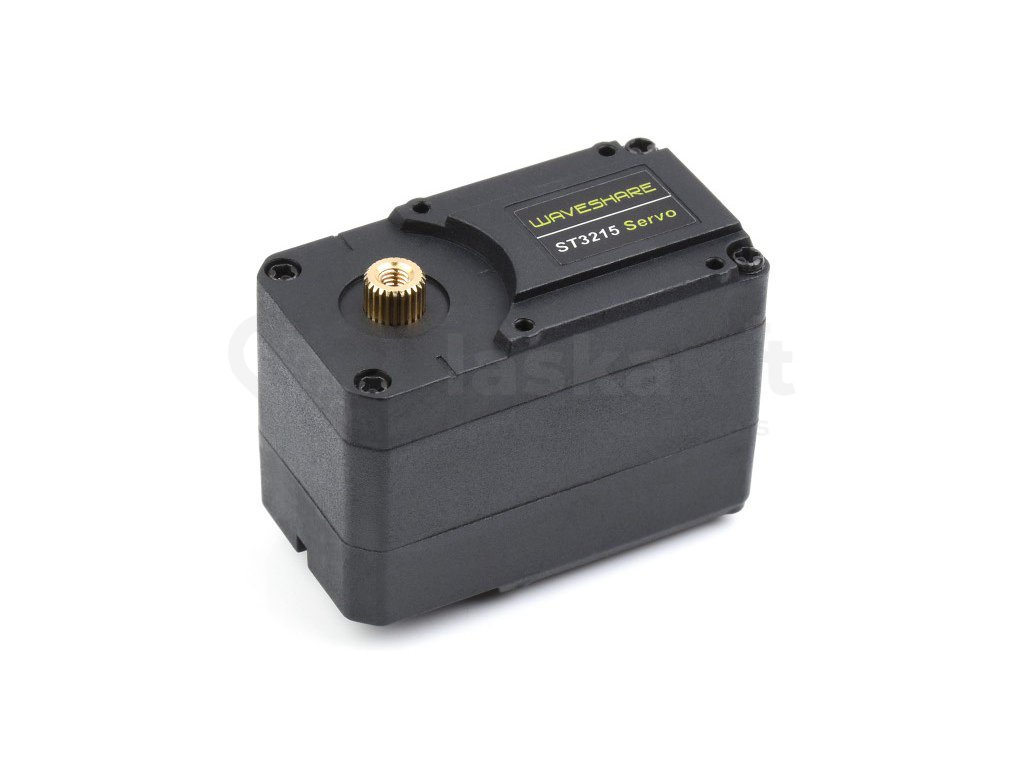

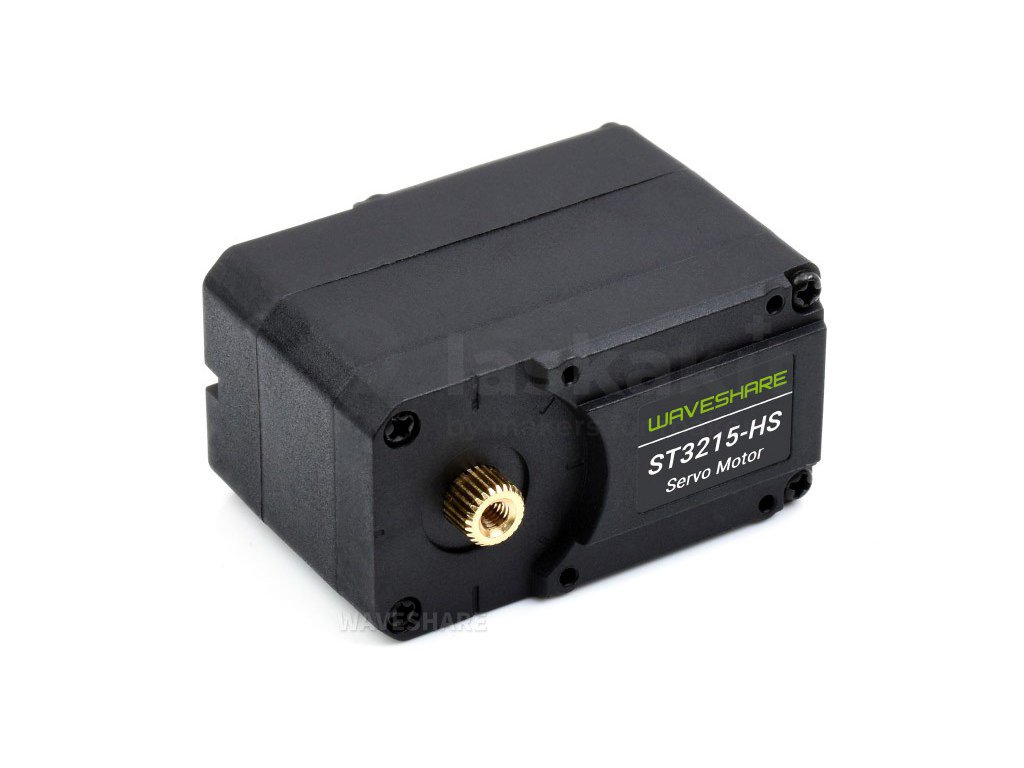

Waveshare ST3215 Serial Bus Servo 30kg

Code: LA143105
€27,79 €22,97 excl. VAT
Skladem (5 pcs)
Delivery to:
16/12/2024

the 30KG Bus Servo Motor is a programmable servo with a magnetic encoder that allows full 360° rotation. Any angle can be set as the center position and the device can be switched to continuous or stepper motor mode. It operates with a voltage of 6-12.6 V and provides torque up to 30 kg*cm at 12 V. The servo Waveshare is precise and reliable, ideal for use in robotics and engineering. With a maximum speed of 106 rpm and high programmability, it is a great choice for demanding projects.

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

the 30KG Bus Servo Motor is a programmable servo with a magnetic encoder that allows full 360° rotation. Any angle can be set as the center position and the device can be switched to continuous or stepper motor mode. It operates with a voltage of 6-12.6 V and provides torque up to 30 kg*cm at 12 V. The servo Waveshare is precise and reliable, ideal for use in robotics and engineering. With a maximum speed of 106 rpm and high programmability, it is a great choice for demanding projects.

Specifications:

  • Communication: UART
  • ID range: 1 to 253
  • Supply voltage: 6V to 12.6V
  • Rotation range: 360°
  • Step resolution: 4096
  • Idle speed: 0.222s / 60°
  • Torque with stopped shaft: 30kg*cm / 12V
  • No-load current consumption: 180mA
  • Current consumption when shaft is stopped: 2.7A
  • Feedback: position, load, speed, input voltage
  • Dimensions: 45x35x24.7mm

LaskaKit-waveshare-st3215-hs-serial-bus-servo-20kg

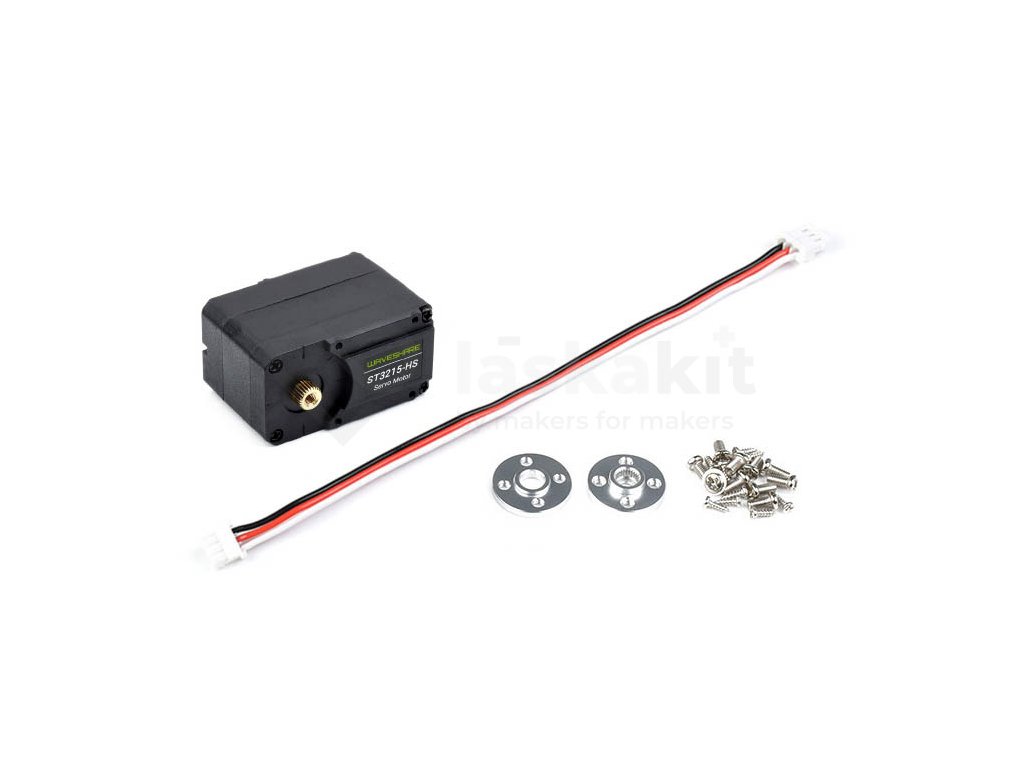

Included in delivery:

  • 1pc Waveshare ST3215 Serial Bus Servo 30kg

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: Servo
Warranty: 2 years
Weight: 0.069 kg
