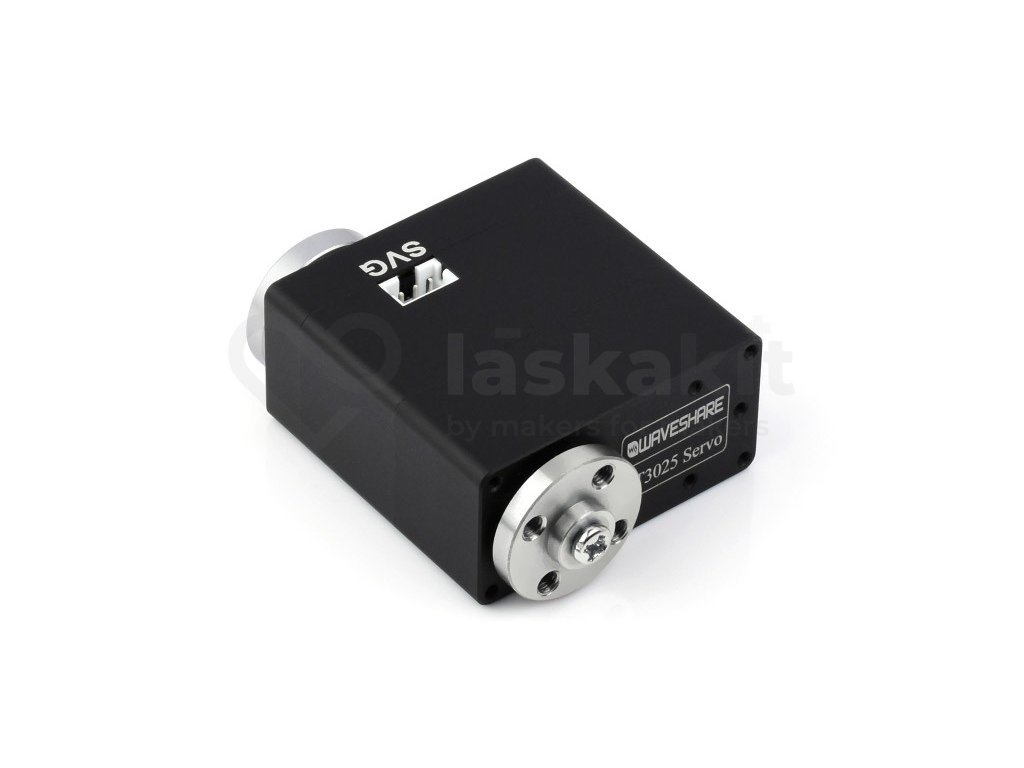

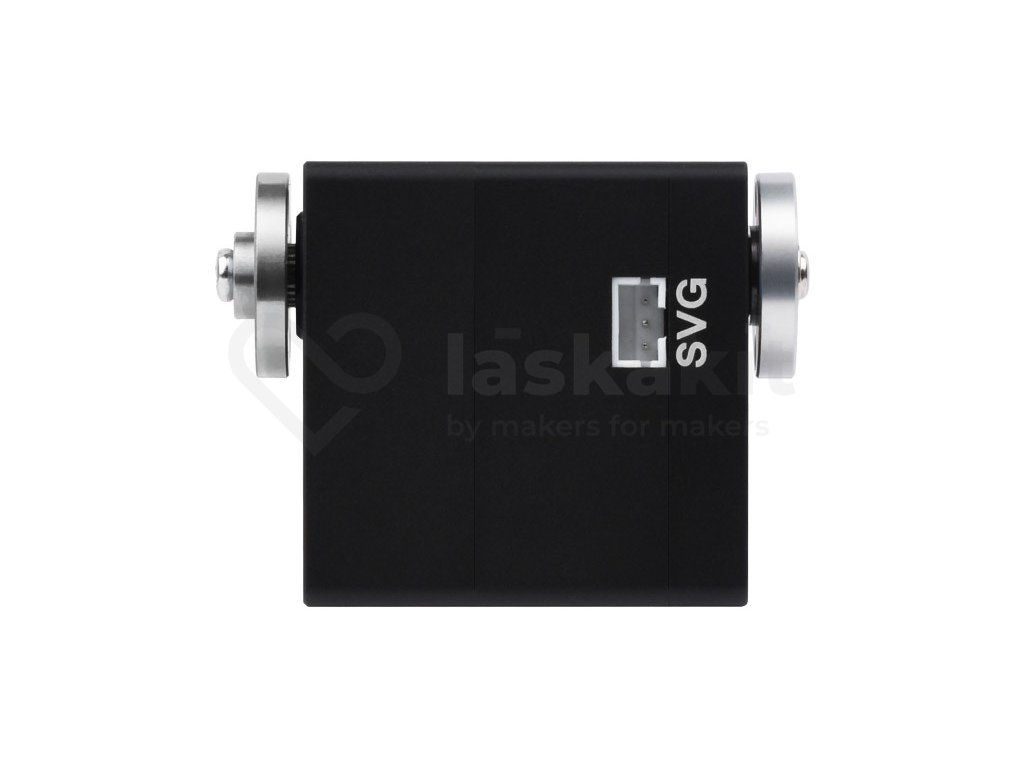

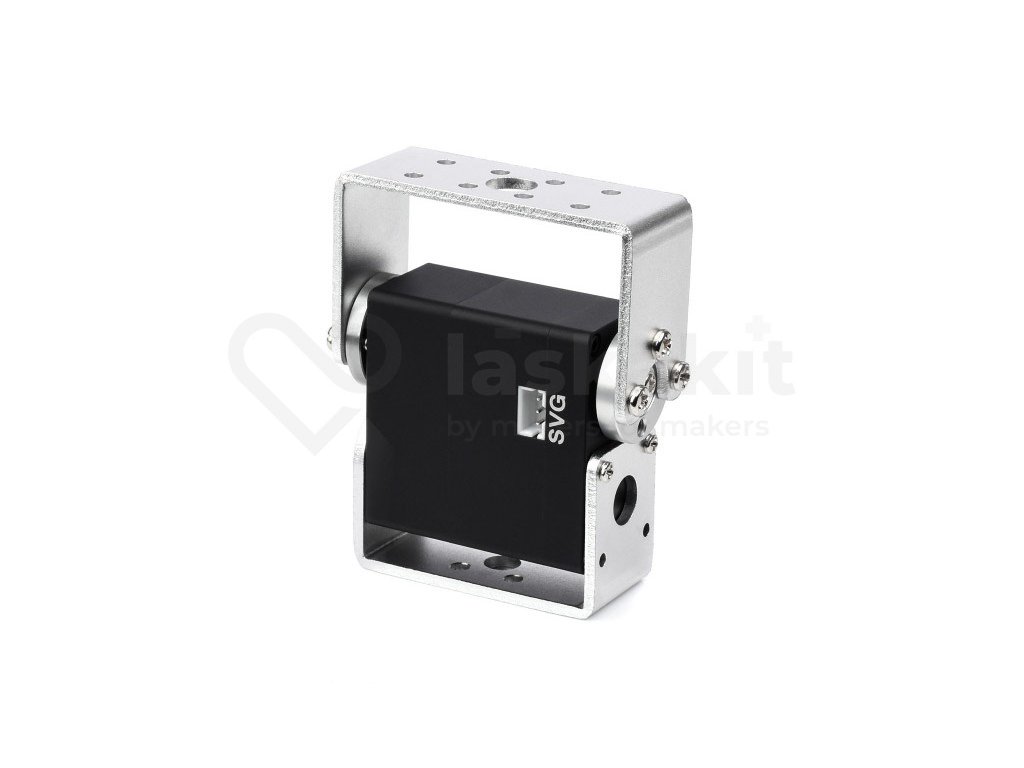

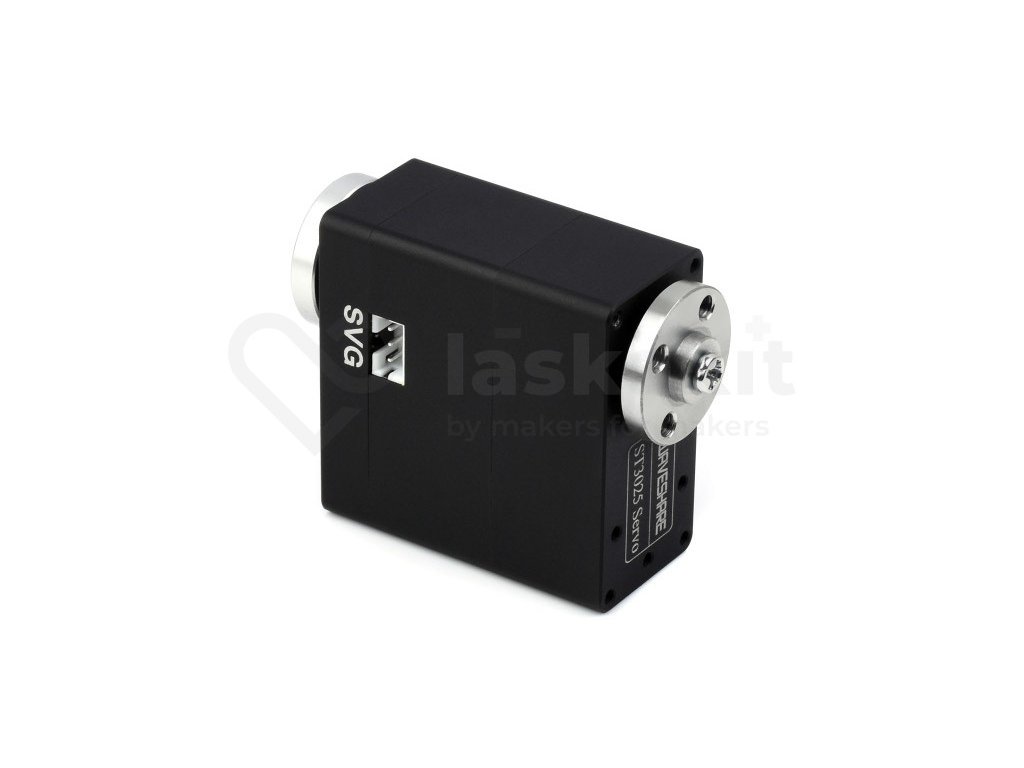

Waveshare ST3025 Serial Bus Servo 40kg

Product detailed description

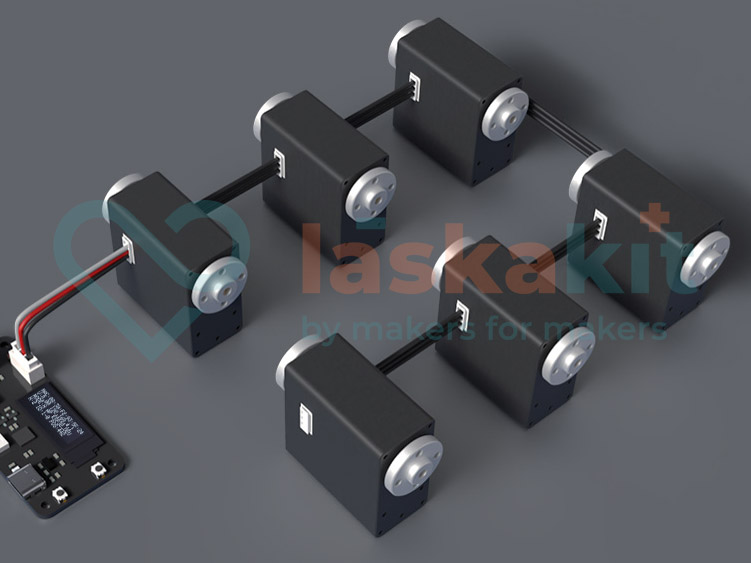

The ST3025 40 kg Serial Bus Servo is a programmable servo with a torque of up to 40 kg*cm on 12V power, allowing 360° rotation. It features a 12-bit magnetic encoder for precise motion control. The servo supports various modes, including standard servo, continuous rotation or stepper motor, and allows you to set any angle as the center position. Thanks to the dual connectors, up to 253 servos can be connected in series. It offers position, load, speed, voltage, current and temperature feedback, with a voltage range of 6-12.6V. Ideal for advanced robotics projects.

Specifications:

• Communication: UART serial bus
• ID range: 0 to 253
• Supply voltage: 6V to 12.6V
• Rotation range: 360° angle control in servo mode / smooth rotation in motor mode
• Step resolution: 4096
• Idle speed: 0.117s / 60°
• Torque: 40kg*cm / 12V
• Current consumption without load: 380 mA
• Rated current: 1.5A
• Current at stopped shaft: 4.4 A
• Feedback: position, load, speed, input voltage, current, temperature
  Dimensions: 40x20x40 mm

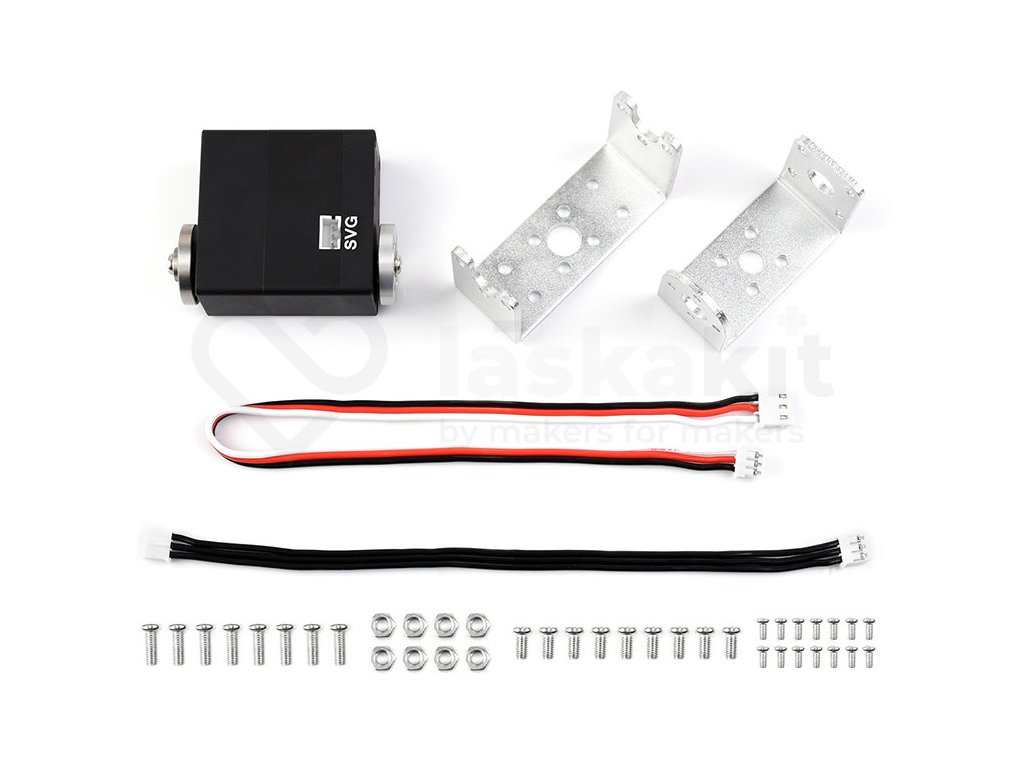

Included in delivery:

• 1pc Waveshare ST3025 Serial Bus Servo 40kg

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
