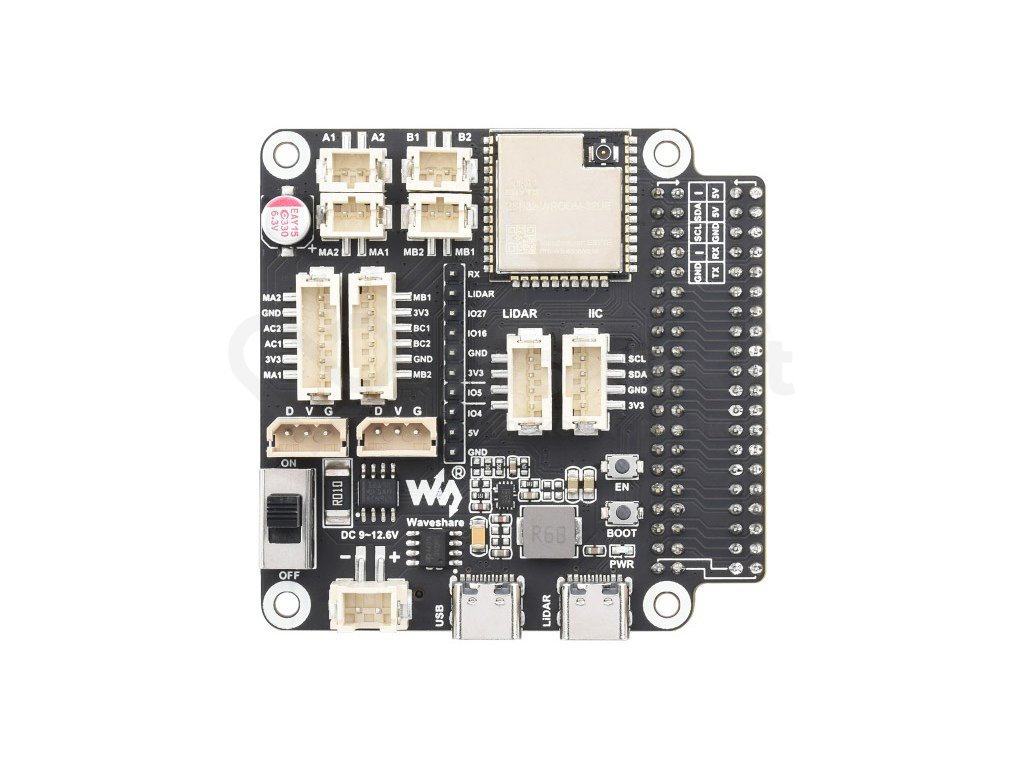

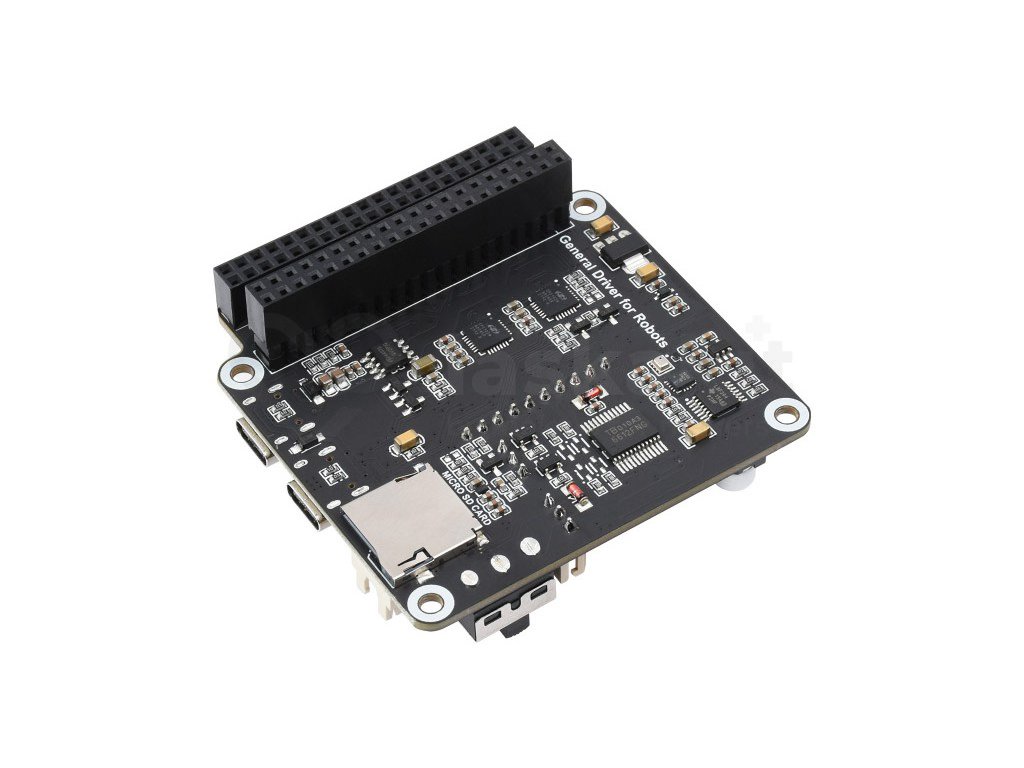

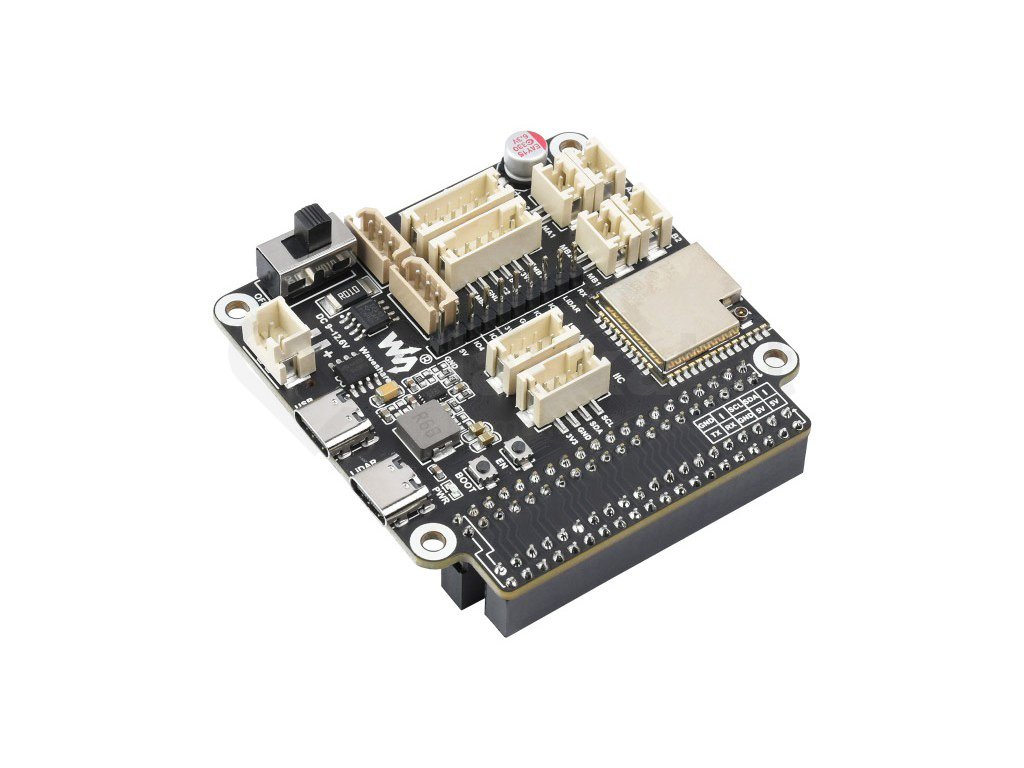

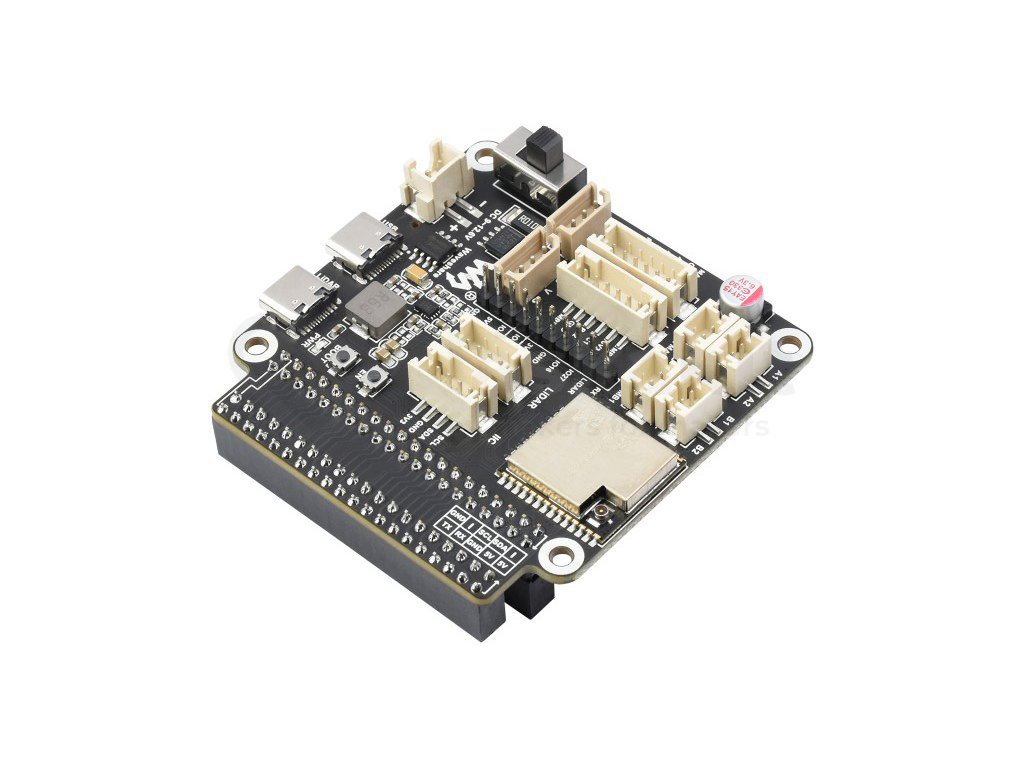

Waveshare ESP32 General Driver board - board for robot, WiFi, Bluetooth, ESP-NOW

Product detailed description

Waveshare ESP32 General Driver Board is an advanced board for robotics projects, equipped with a ESP 32 chip to support wireless communication via WiFi, Bluetooth and ESP-NOW. This board is designed to control and manage various components in robotics and automation. Its versatility allows wireless control and easy integration into IoT projects. It is suitable for applications that require multi-channel control, such as motor and servo control, and provides flexible programming and connection options.

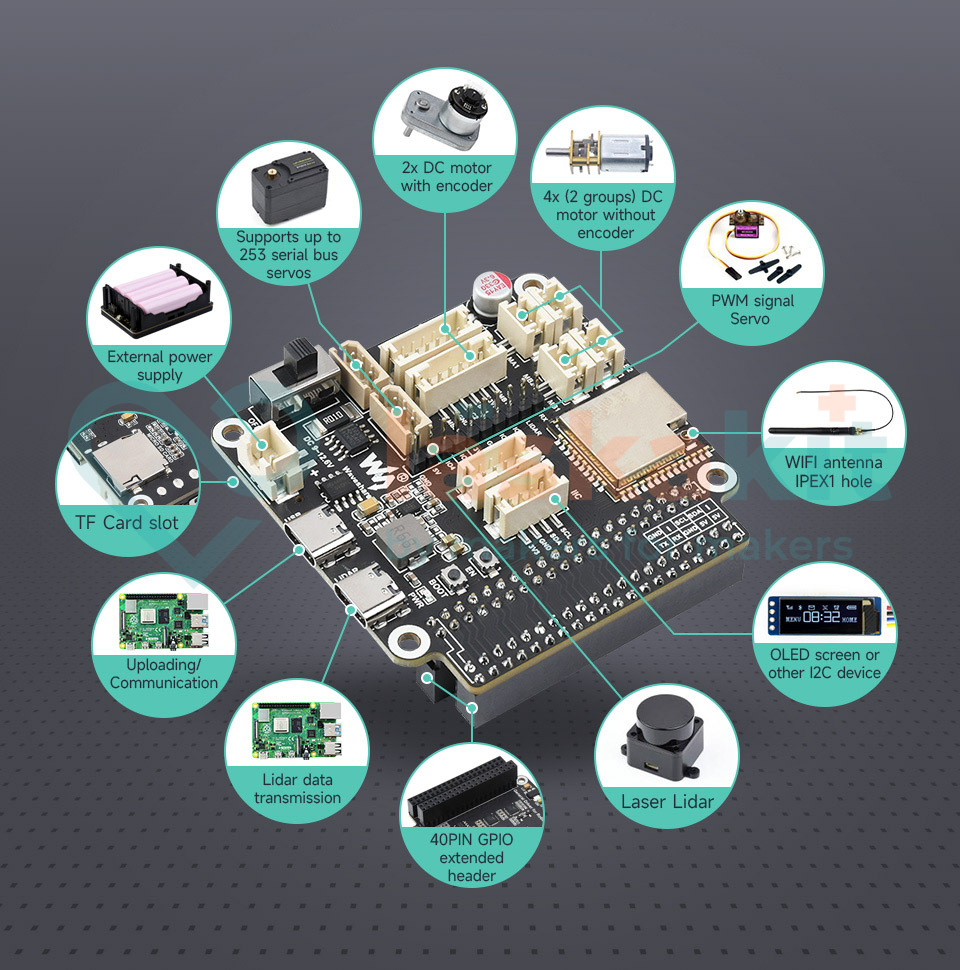

• Based on the ESP32-WROOM-32 module, it supports wireless communication such as WIFI, Bluetooth and ESP-NOW.
• Built-in interfaces for controlling 2 DC motors with encoders or 4 DC motors without encoders.
• Interface for serial servo motors to control up to 253 ST3215 and get feedback.
• Built-in 9-axis IMU for position and orientation information.
• Support 7-13V input voltage, power directly from 2S/3S lithium battery.
• Input voltage/current monitoring.

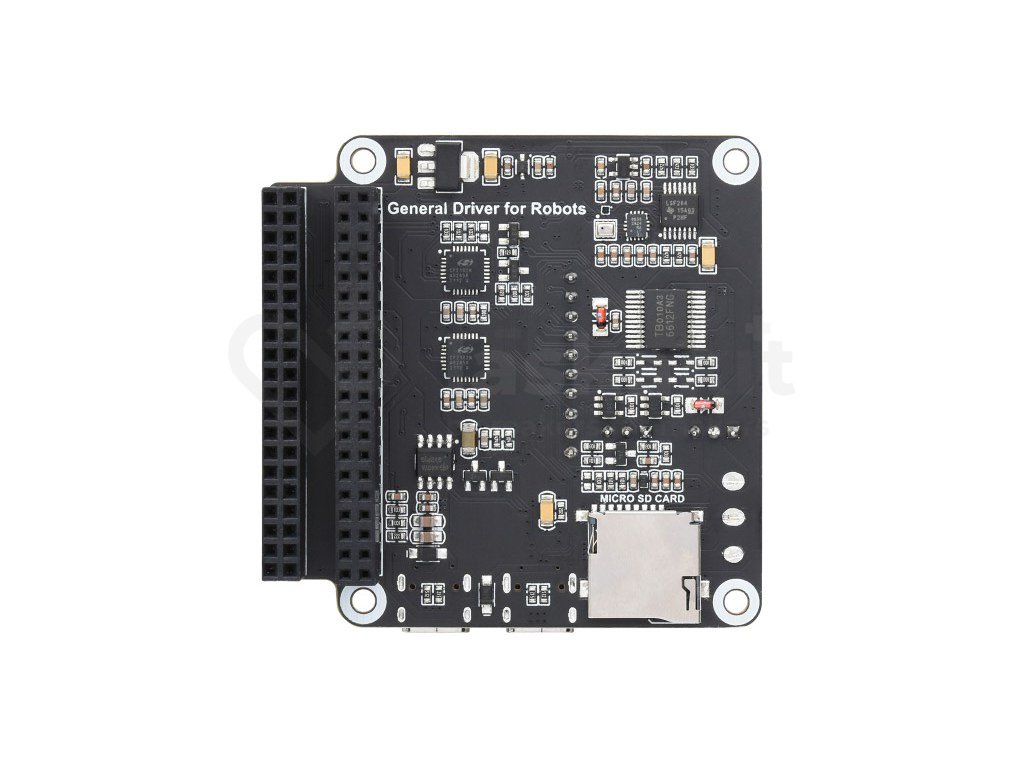

• TF card slot.
• Interface for Laser Lidar and integrated UART function on USB.
• I2C interface for connecting peripherals such as OLEDs and IMUs.
• Built-in 40PIN GPIO header for connecting and powering a computer (e.g. Raspberry Pi/Jetson Nano) with communication via serial port or I2C.

Specifications:

• Type: multifunction driver
• Built-in chip: ESP32
• Communication: WiFi 2.4 GHz, Bluetooth 4.2 BLE and ESP-NOW
• Power supply voltage: 7V to 13V via XH2.54 connector, can be powered directly by 2S or 3S Li-ion battery
• Dimensions: 65x65 mm

Delivery components:

• 1pc Waveshare ESP32 General Driver board - board for robot, WiFi, Bluetooth, ESP-NOW

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
