WaveShare e-Paper Raw Panel Driver Shield for Arduino, NUCLEO

Product detailed description

WaveShare e-Paper Raw Panel Driver Shield for Arduino, NUCLEO

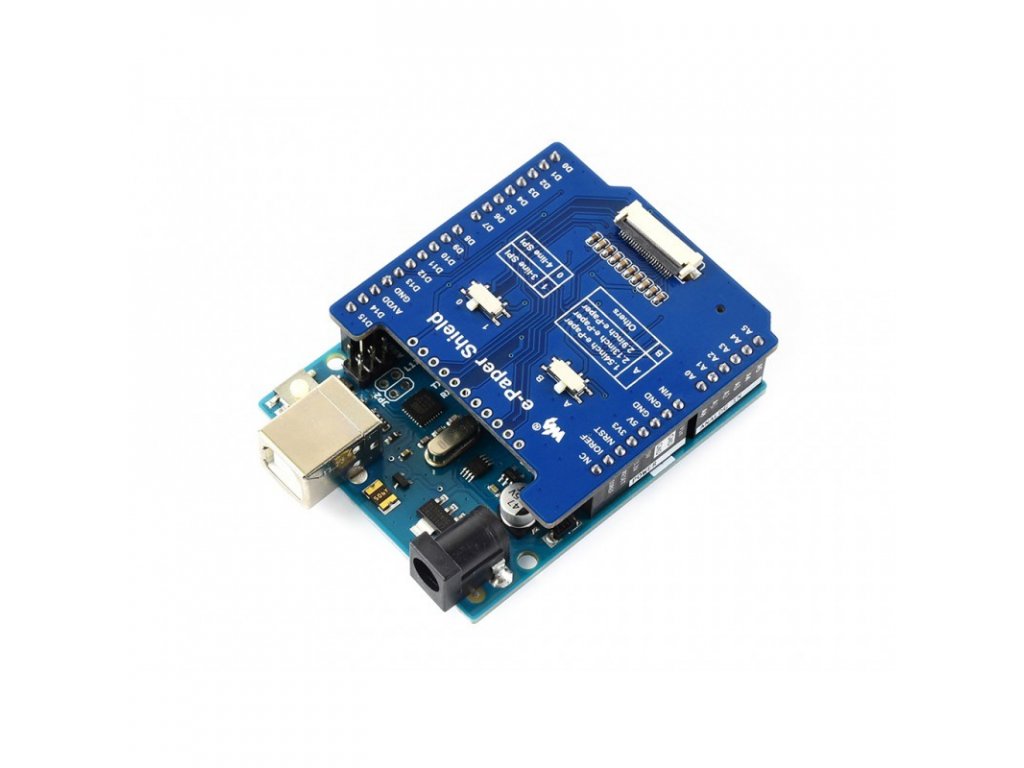

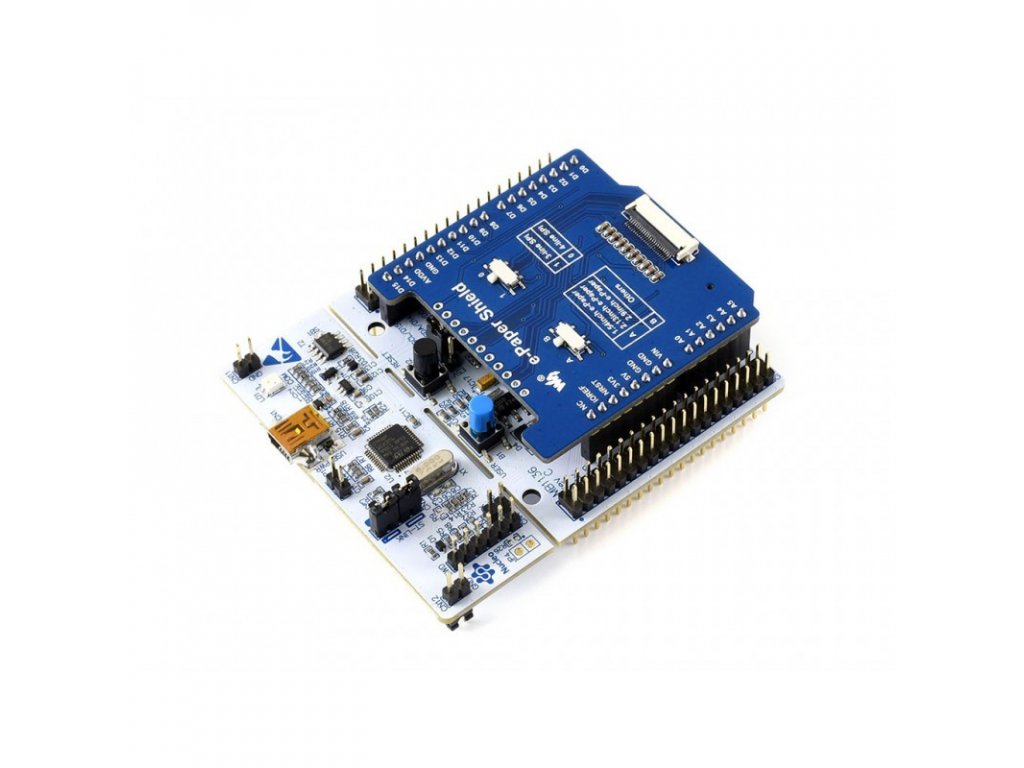

Shield for Arduino UNO, Mega, Leonardo and also NUCLEO, XNUCLEO. Shield enables the connection of all E-paper displays of the company Waveshare with the SPI bus. Logic level converter, compatible with 3.3V/5V MCUs. On-board RAM, more free space. Micro SD slot, pictures can be stored on TF card . SPI interface, to connect to other controllers like Raspberry / Arduino / Nucleo etc.

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.

Unlike conventional displays, ePaper does not glow but reflects light, just like ordinary paper. It's an ideal display for battery-powered devices because it only needs electricity to change the displayed content.

Specifications:

• Voltage: 3.3V - 5V
• Interface: 3 or 4 pin SPI
• Dimensions: 53.34×53.34mm

Included in delivery:

• 1pc WaveShare e-Paper Raw Panel Driver Shield for Arduino, NUCLEO

Sources:

Waveshare Wiki

Remark:

This product is not a standalone functional unit and may require professional installation.
