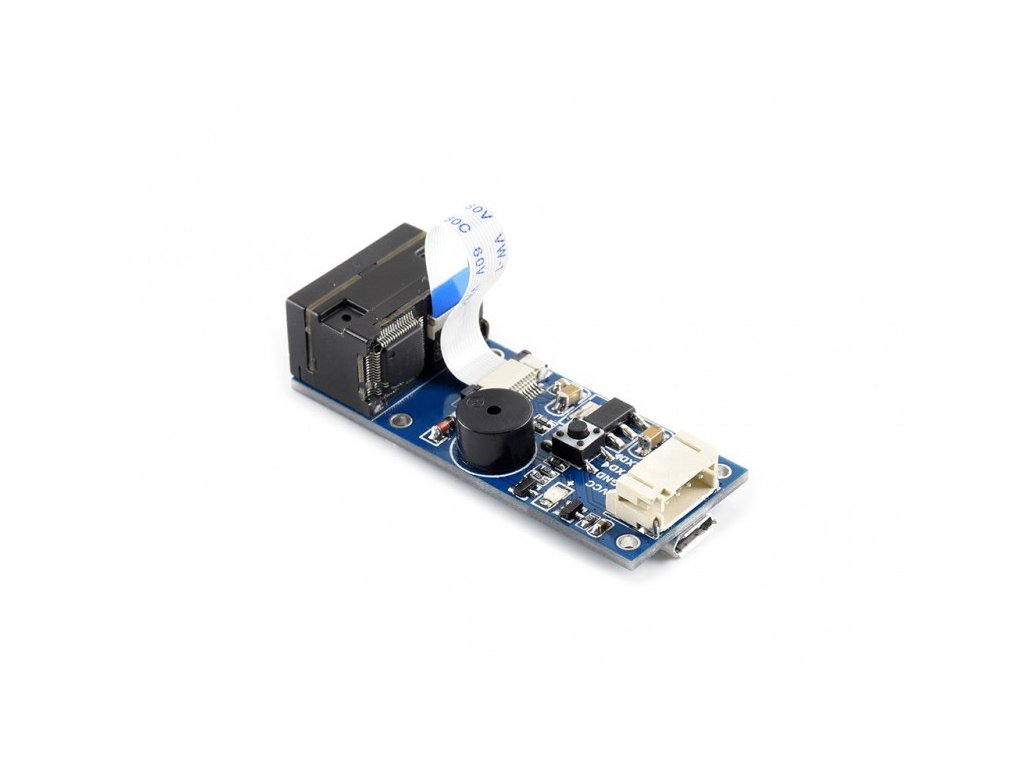

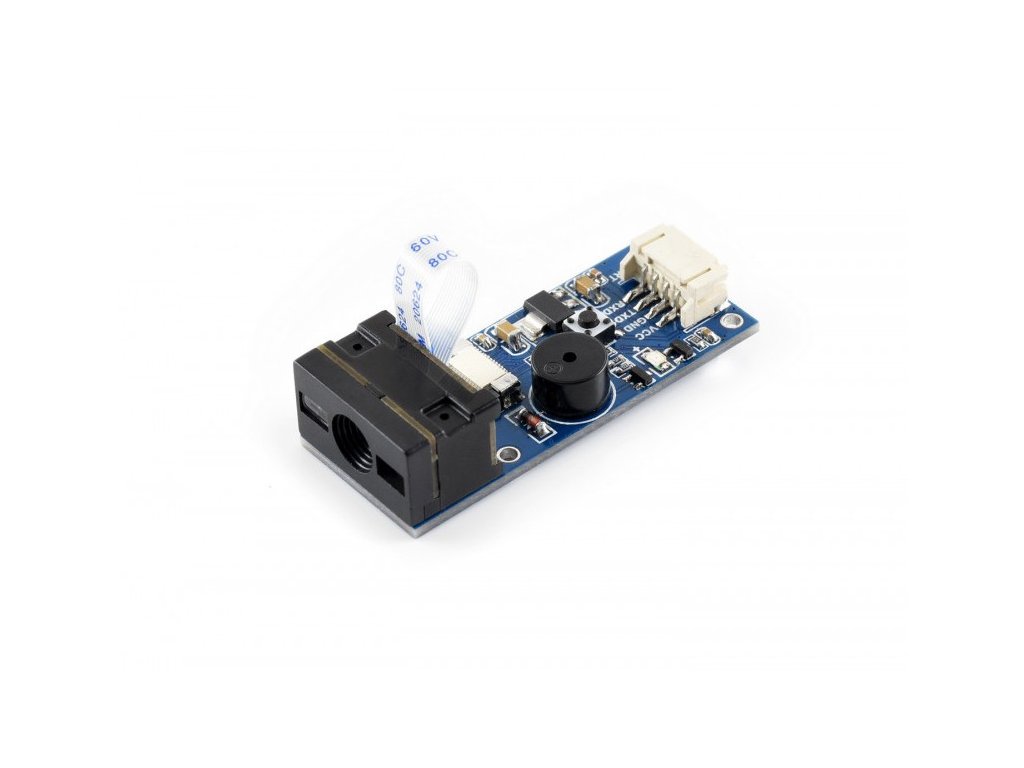

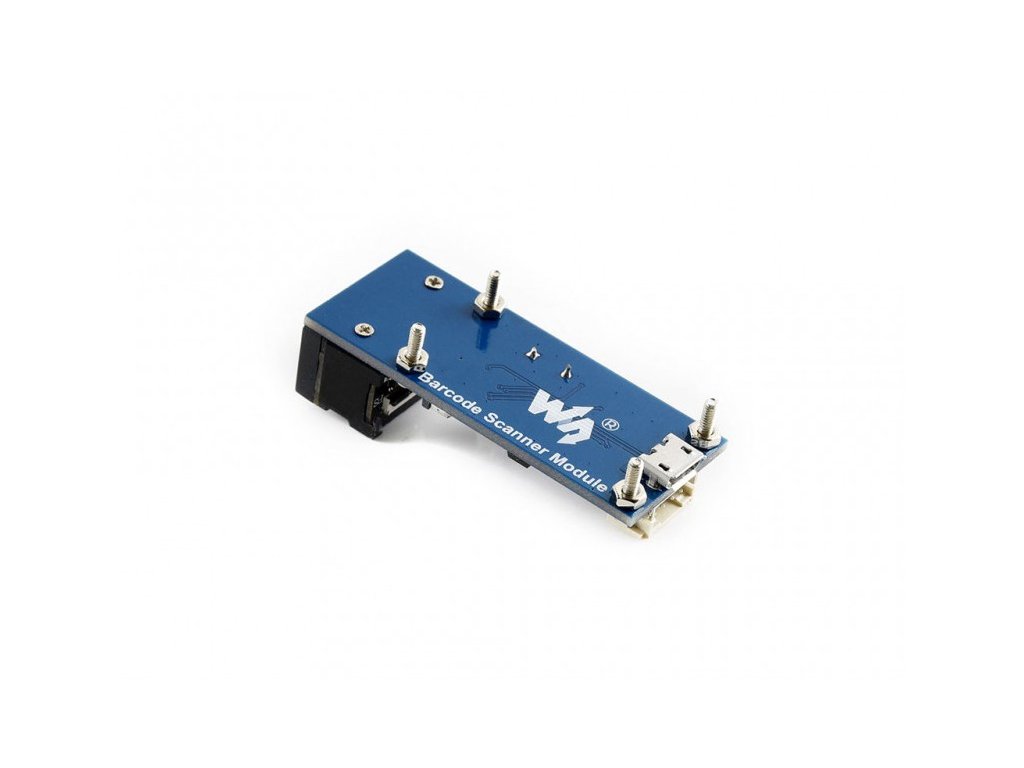

WaveShare Barcode Scanner, 1D/2D Codes Reader

Product detailed description

It is a small 1D/2D code reader that uses an intelligent image recognition algorithm to quickly and accurately decode a barcode or 2D code on paper or screen.

Using the built-in USB and UART interface, it can be directly plugged into a PC or can be easily integrated into various devices.

Function:

• Easy to use, no image recognition knowledge required
• Decodes various common 1D/2D codes such as barcode, QR code, etc.
• Integrated micro USB serial port and UART, allows connection to a computer or devices
• Configurable by scanning the "configuration code"
• Backlight, works in the dark

Specifications:

• Operating voltage: 5V
• Operating current: 135 mA (scan), 58 mA (standby), 2 mA (sleep)
• Operating temperature: 0°C ~ 60°C
• Operating humidity: 5%~95% (non-condensing)
• Communication interface: UART, USB
• Decodes 1D codes: codebar, code 11, code 39 / code 93, UPC / EAN, code 128 / EAN128, interleaved 2 of 5, matrix 2 of 5, MSI code, industrial 2 of 5, database
• S1 (RSS)
• Decodes 2D codes: QR code, Data Matrix, PDF417
• Light source: white
• Scan angle: roll 360°, yaw ± 65°, pitch ± 60°
• Field of view: 28° (horizontal), 21.5° (vertical)
• Size: 53.3x21.4mm

Included in delivery:

• 1pc WaveShare Barcode Scanner, 1D/2D Codes Reader

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
