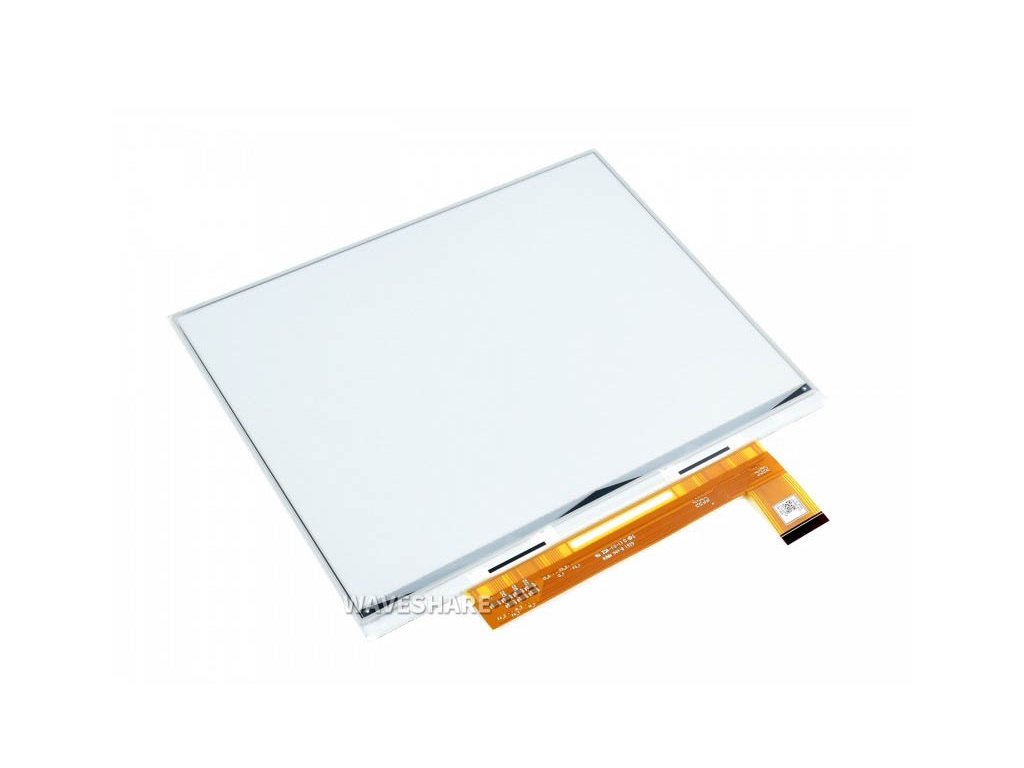

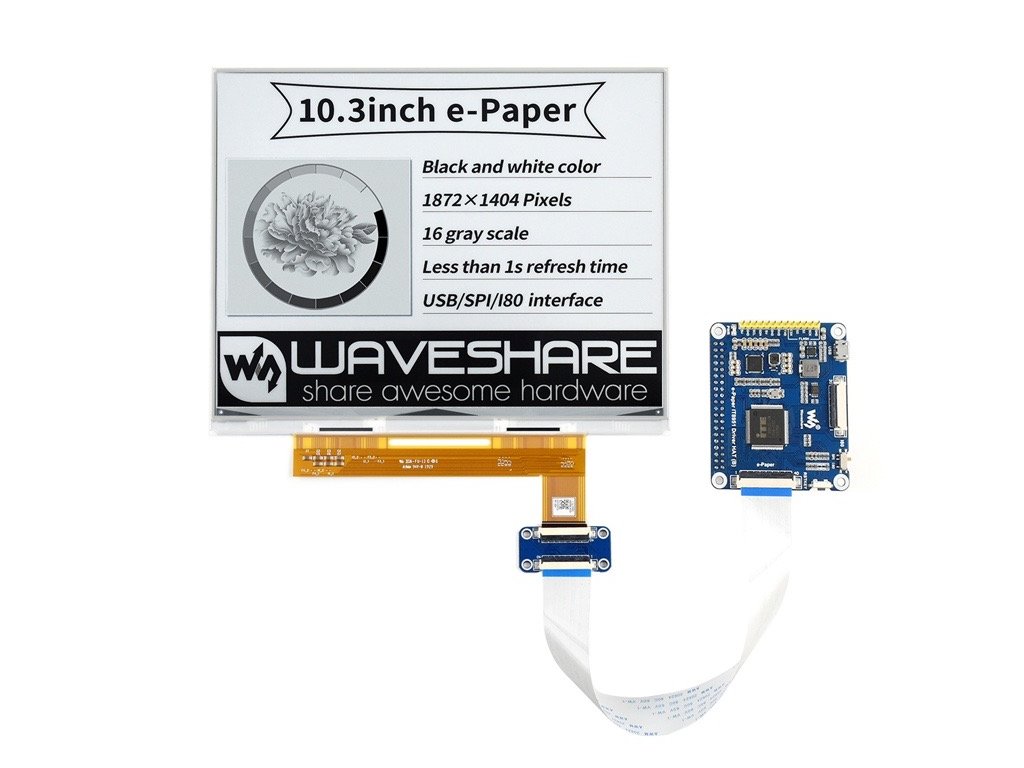

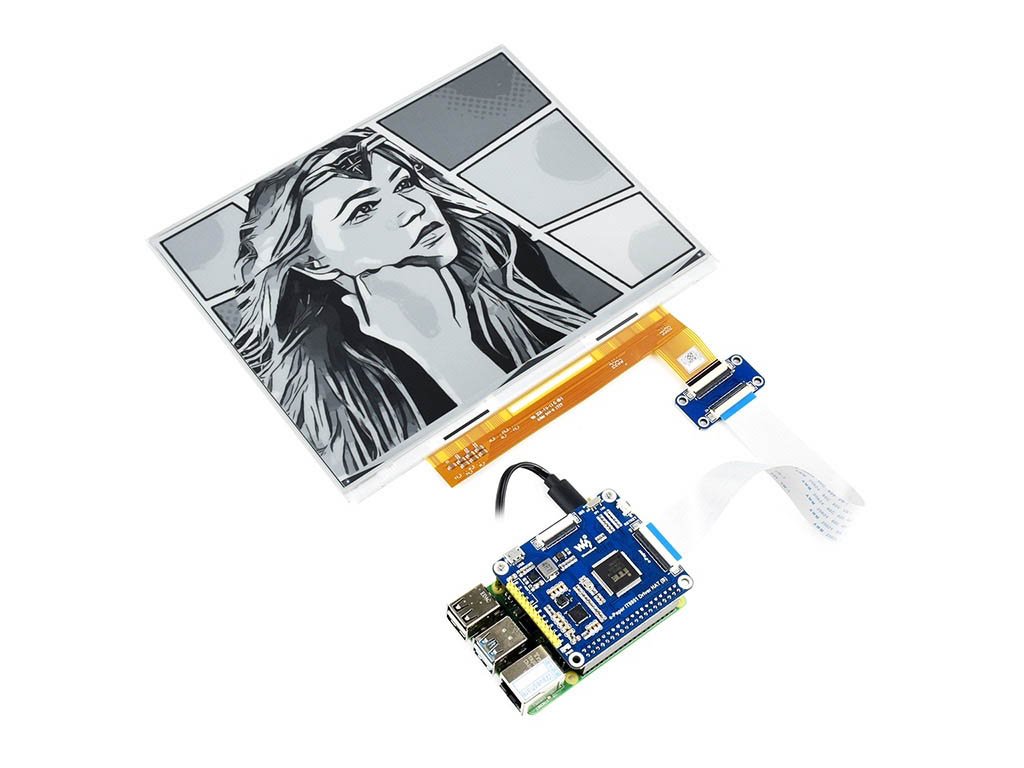

Waveshare 10.3" 1872×1404 Grayscale ePaper raw display, USB/SPI/I80/I2C

Product detailed description

E-Ink (or E-Paper) is a so-called electrophoretic display, i.e. a display containing white particles in microcapsules dispersed in a thin layer of dark viscous solution. By applying a short impulse, these white particles will move, possibly tilting towards the front side of the display, which causes the given pixel to appear white. By applying an impulse of opposite polarity, the given pixel appears black. High viscosity of the solution causes micro-particles to remain in their position without change practically permanently.

Unlike conventional displays, ePaper does not glow but reflects light, just like ordinary paper. It's an ideal display for battery-powered devices because it only needs electricity to change the displayed content.

Specifications:

• Voltage: 5V
• Interface: parallel port
• Interface: USB/SPI/I80/I2C
• Resolution: 1872×1404
• Grayscale: 2-16 (1-4 bit)
• Full refresh time: 450 ms
• Total refresh power: 1.2 W (typ.)
• Total standby power: 0.1 W (typ.)
• Viewing angle: >170°

Included in delivery:

• 1pc Waveshare 10.3" 1872×1404 Grayscale ePaper raw display, USB/SPI/I80/I2C

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
