Ultrasonic water level sensor DS1603

Product detailed description

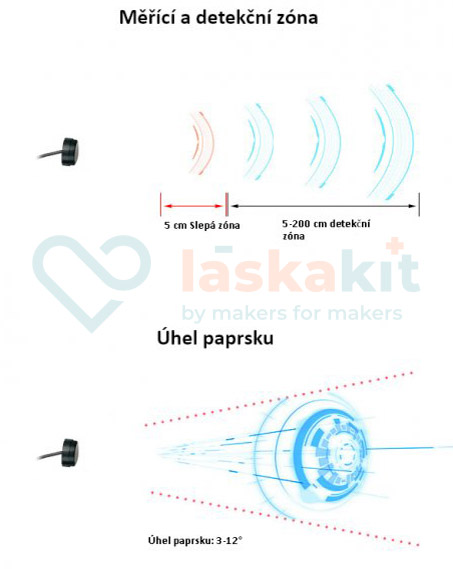

Ultrasonic water level sensor in a waterproof package capable of detecting the water level through the walls of the container. The sensor is blind for the first five centimeters from the sensor, so it is necessary that the detected liquid is further away or perpendicular to the sensor. The sensor is capable of detecting liquids in the range of 5-200 cm.

ATTENTION! Pay attention to the information about the mounting method of the sensor! It is also necessary to lubricate the sensor's contact area with ultrasonic gel, otherwise the sensor may not detect properly. For testing, it is sufficient to paint the area with water only, but this is insufficient for permanent operation.

Variants:

• DS1603NF - Switch
• DS1603L - UART
• DS1603AQ - Analog output (0-5V)
• DS1603DA - RS485

DS1603DA Specifications:

• Output: RS485
• Supply voltage: 10-36V
• Average consumption: <25mA
• Blind zone size: ≤50mm
• Detection zone length: 50-2000 mm
• Operating cycle: 1s
• Response from liquid: 2s
• Wiring: red +12-36V, black GND, yellow RS485 A and white RS485 B
• Mounting of the sensor: from the outside to the bottom of the vessel
• Weight: 30g

DS1603AQ Specifications:

• Output: analog voltage 0-5V
• Supply voltage: 10-36V
• Average consumption: <25mA
• Blind zone size: ≤50mm
• Detection zone length: 50-1000 mm
• Operating cycle: 1s
• Response from liquid: 2s
• Wiring: red +12-36V, black GND, yellow OUT and white not connected
• Calculation of height: S = (measured_napeti / 5000) * 1000 The measured value is entered in mV and the resulting height is in mm
• Mounting of the sensor: from the outside to the bottom of the vessel
• Weight: 30g

DS1603L Specifications:

• Output: UART
• Supply voltage: 3.3-12V
• Average consumption: <25mA
• Blind zone size: ≤50mm
• Detection zone length: 50-2000 mm
• Operating cycle: 1s
• Response from liquid: 2s
• Wiring: red +12-36V, black GND, yellow RX and white TX
• Mounting of the sensor: from the outside to the bottom of the vessel
• Weight: 30g

DS1603NF Specifications:

• Supply voltage: 10-36V
• Average consumption: <25mA
• Output current: max. 0.5A
• Blind zone size: ≤50mm
• Detection zone length: 50-2000 mm
• Operating cycle: 1s
• Response from liquid: 2s
• Wiring: red +12-36V, black GND, yellow OUT H and white OUT L

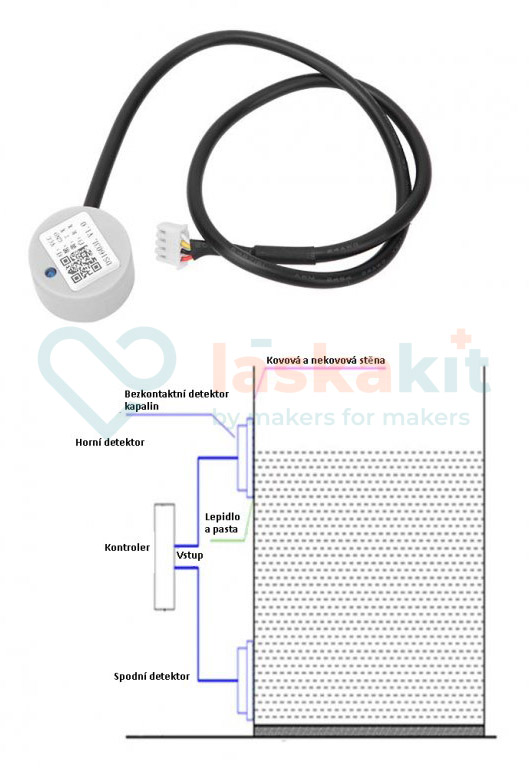

• Mounting of the sensor: from the outside on the side of the vessel
• Weight: 30g

Included in delivery:

• 1pc Ultrasonic water level sensor DS1603

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
