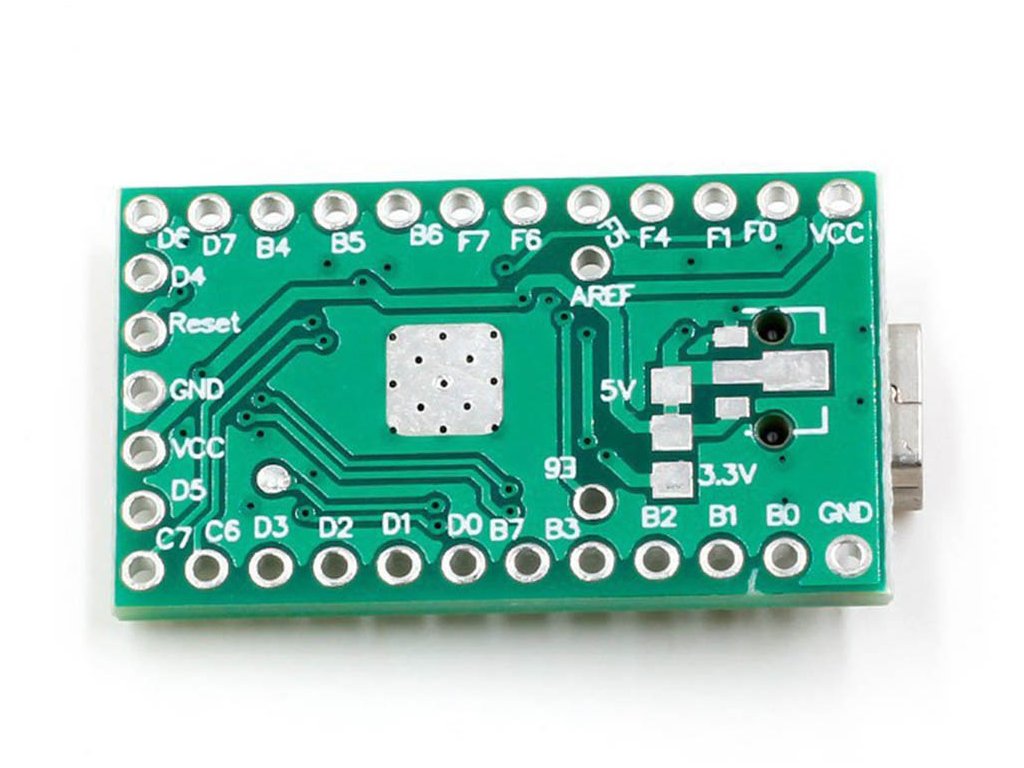

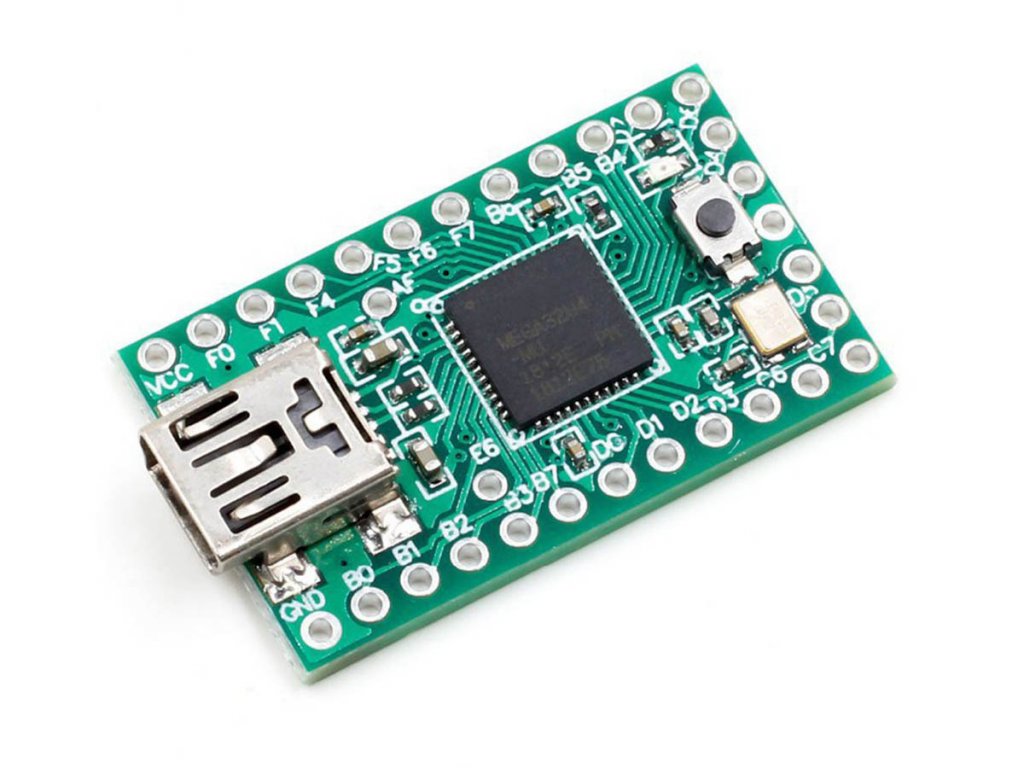

Teensy 2.0 ATmega32u4 16MHz 5V

Product detailed description

Teensy is a small-sized complete USB-based microcontroller development system that can be used in many types of projects. All programming is done via the USB port.

Teensy Loader makes transferring code to your Teensy easy. Just press and release the restart button and the processor will start the "HalfKay" bootloader, which is automatically detected. Teensy Loader allows you to download code and restart it.

Automatic mode downloads and restarts Teensy into your code the moment the computer detects "HalfKay". The latest version of the code is always used. Just press the button and within 1 to 2 seconds your last code will be triggered!

Specifications:

• Model: Teensy 2.0
• Microcontroller: ATmega32U4 8 bit AVR 16 MHz
• Flash Memory: 32256 B
• RAM Memory: 2560 B
• EEPROM: 1024 B
• I/O: 25, 5 V
• Analog In: 12
• PWM: 7
• UART,I2C,SPI: 1,1,1
• Dimensions: 31x18mm

Delivery components:

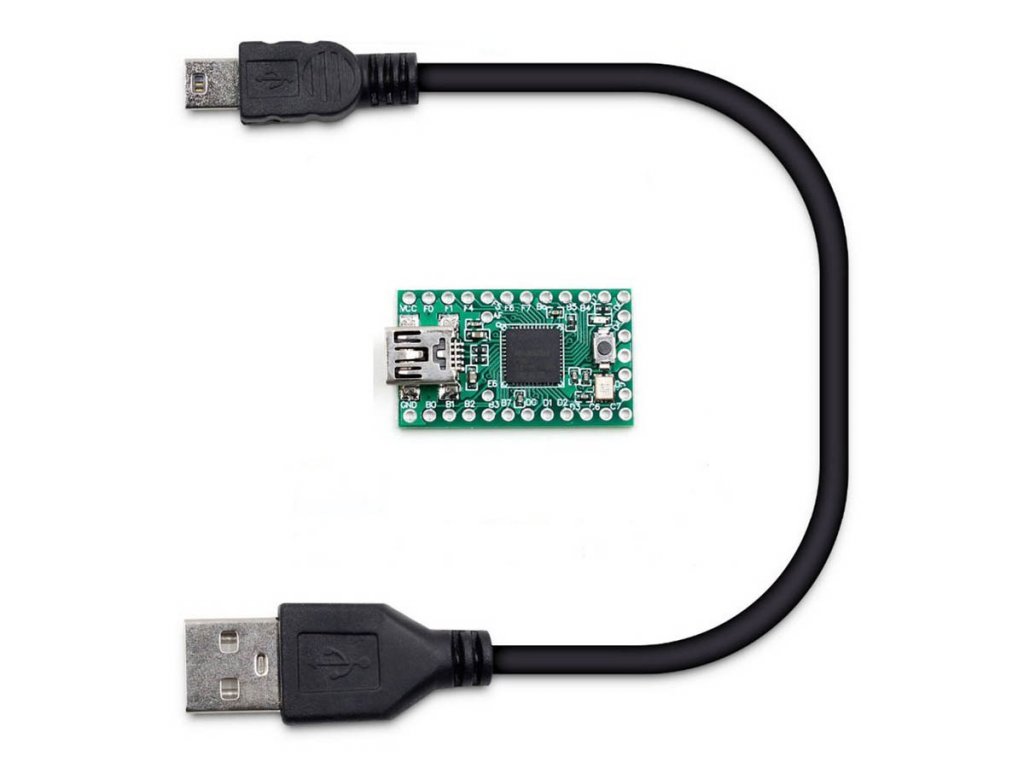

• 1x Teensy 2.0 ATmega32u4 16MHz 5V

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
