Step-down converter with XL4015, CC/CV
Code: LA122013
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Related products
Product detailed description

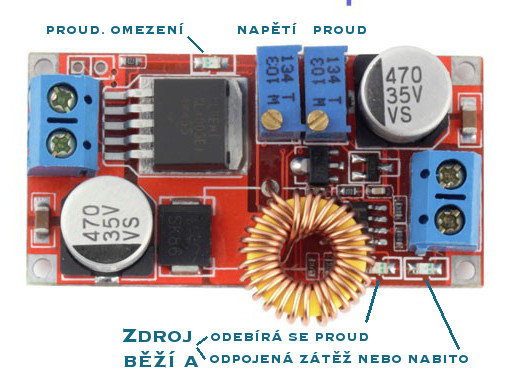

75W High Efficiency Step-down DC/DC Converter Non-isolated, pulsed DC-DC Step-down converter. XL4015 control circuit in D2PAK-5 housing. Output voltage and current is continuously adjustable by a multi-turn trimmer.
Product Description:
- Input voltage: 8-36V
- Output voltage: 1.25-28 V
- Max output current:. 5 A ( with modifications only)
- Output current: 3A ( according to test, no adjustments)
- Output power: type. 50 W (short-term max. 72 W)
- Conversion efficiency: 85-96%
- Load voltage accuracy: 0.8%
- Switching frequency: 180 kHz
- Operating temperature: -40..+85 °C
- Weight: 16 g
Included in delivery:
- 1pc Step-down converter with XL4015, CC/CV
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Step-Down Converters |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.021 kg |
| Výstupní proud max.: | 3-9A |
| Funkce Konstantní proud: | Yes |
| Input voltage max.: | 30-36V |
| Vstupní napětí min.: | 4-7V |
| Output voltage max.: | 20-30V |
| Output voltage min.: | 1-2V |
| Max. Výkon: | 200-500W |
| Nejmenší rozdyl napětí: | 0.3V |
| The item has been sold out… | |
