Product detailed description
The FSR RP-W2.5-L15.5 is a slim, flexible sensor designed for measuring compressive force in small applications.
Specifications:
- Model name: FSR RP-W2.5-L15.5
- Type: Force Sensing Resistor (FSR)

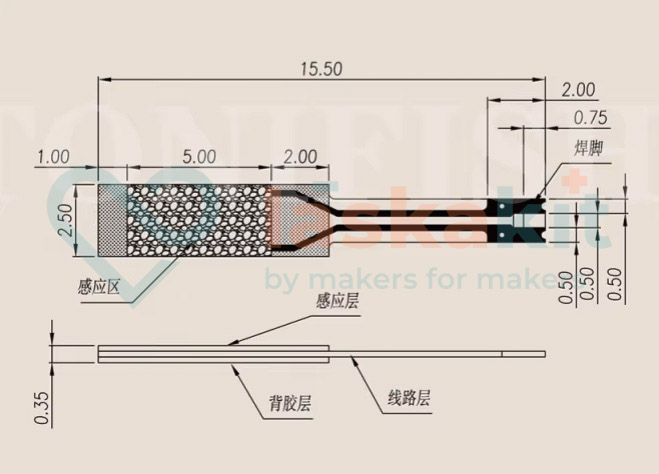

- Shape and size: rectangular shape with dimensions of 5 mm x 2.5 mm
- Length: 15.5 mm
- Minimum activation force: 5 grams
- Pressure sensing range: Approx. 20g-1kg

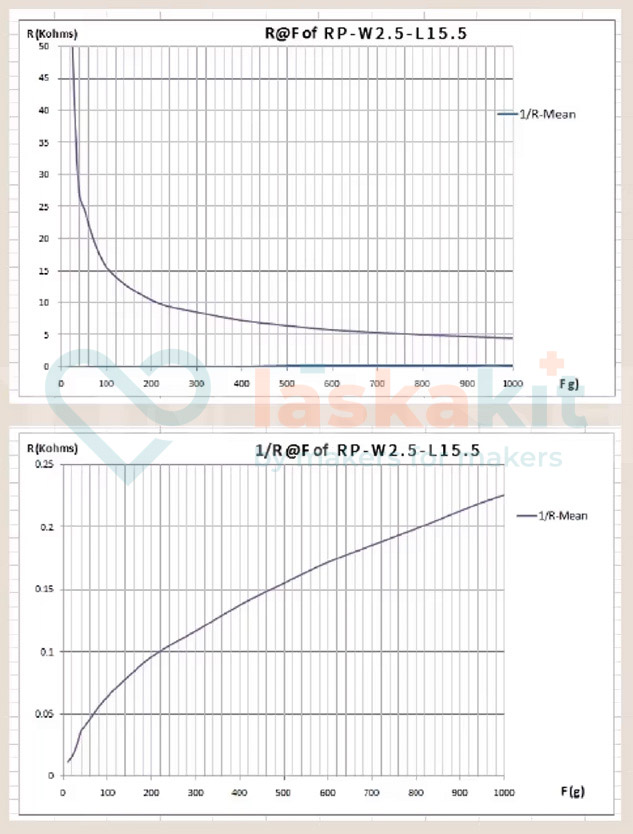

- Resistance range: 3k~100k Ohm
- Sensitivity: the ability to detect changes in applied force with high accuracy depending on the measured range.
- Resistance when not triggered: greater than 1 MΩ.
- Activation time: less than 1ms.
- Response time: <10 ms
- Electromagnetic interference EML: No
- Electrostatic Discharge EDS: Insensitive
Included in delivery:
- 1pc FSR RP-W2.5-L15.5 5g 5x2.5mm pressure sensor
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Weight sensors, weight sensors |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.001 kg |
| Output: | Analog |
| Sensor type: | Pressure |
