Fingerprint sensor with memory ZFM60 BAK V1.4

Product detailed description

Fingerprint sensor with memory ZFM60 BAK V1.4

Each new scan is merged with the previous one stored, so the accuracy of identification increases.

Secure your project with biometrics - this optical fingerprint scanner allows you to easily add fingerprint detection and verification. Here is a high-performance DSP chip that performs image rendering, calculation, profile retrieval. Connect to any microcontroller or system via TTL serial protocol and send data packets. You can also write down new fingers. Up to 162 fingerprints can be stored in Flash memory.

Specifications:

• Stores up to 162 samples
• Sample comparison: 1 s
• False acceptance rate: <0.001% (security level 3)
• False rejection rate: <1.0% (security level 3)
• Profile: 256 bytes
• Temp file: 512 bytes

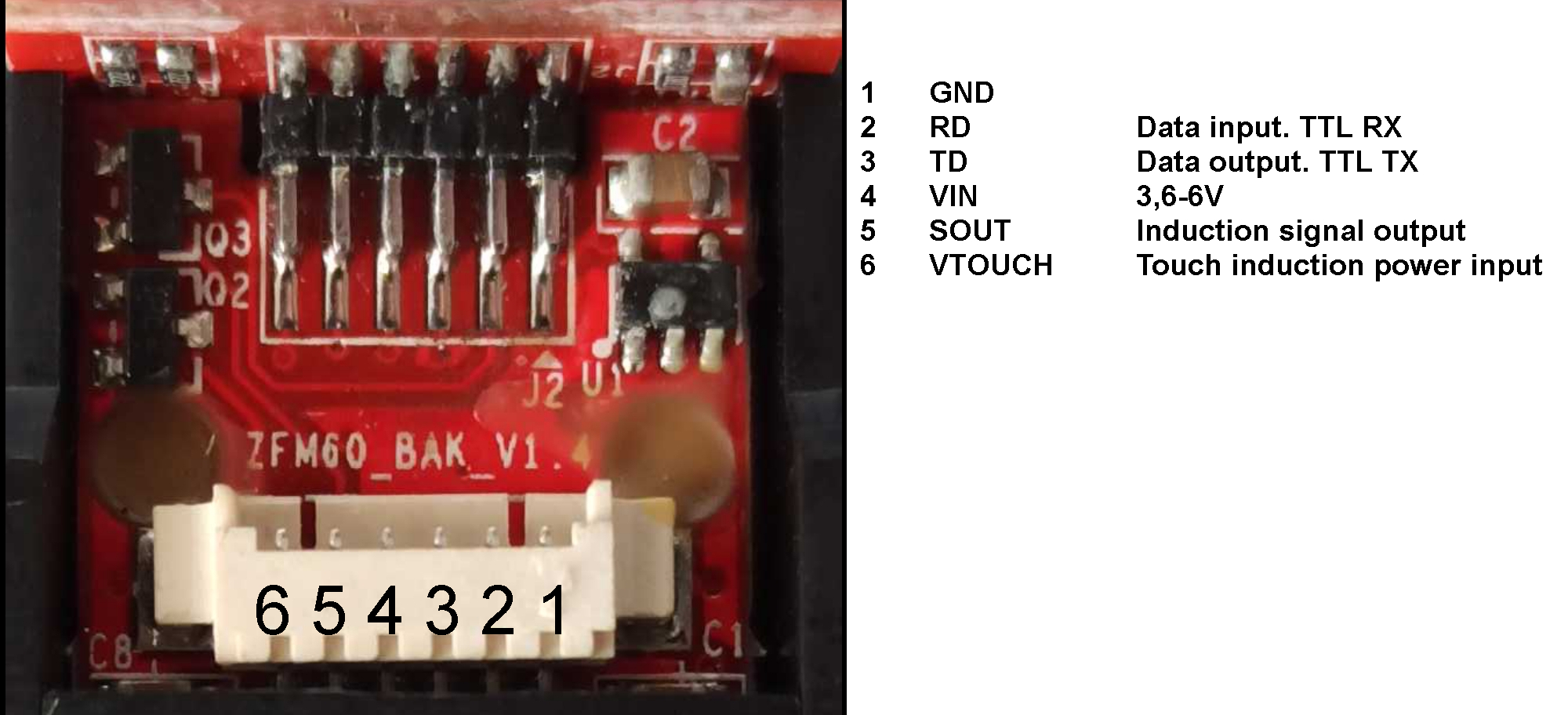

• Interface: UART (TTL logic level)
• Power supply: 3.6 to 6.0 V
• Overcurrent: < 120 mA (150 mA max)
• Window area: 14 x 18 mm
• Dimensions: 56x20x21.5mm
• Operating temperature: -20C to +50C
• Operating humidity: 40%-85% RH

Included in delivery:

• 1pc Fingerprint sensor with memory ZFM60 BAK V1.4
• 1 pc cable

Remark:

• This product is not a standalone functional unit and may require professional installation.

Sources:

• FPM10A Arduino Library
• Windows Fingerprint Capture
• UNLOCK THE GARAGE WITH YOUR FINGERPRINT
