    Home / Shield modules / Arduino Uno / Shield VS1053B MP3 with TF Reader for Arduino Uno

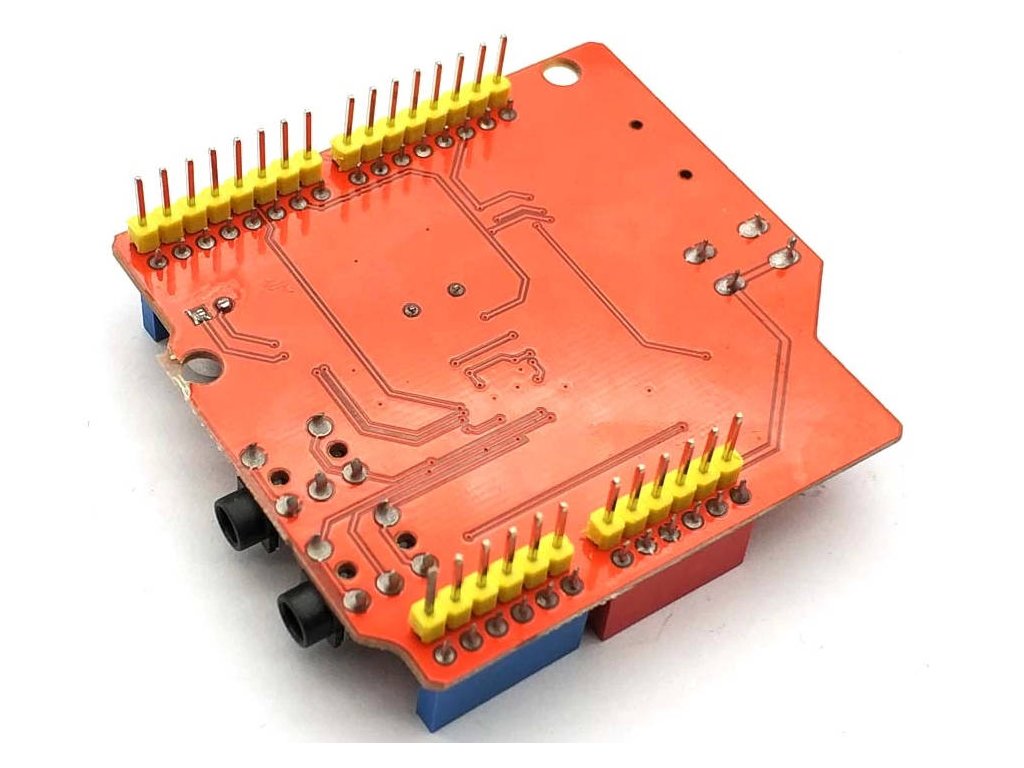

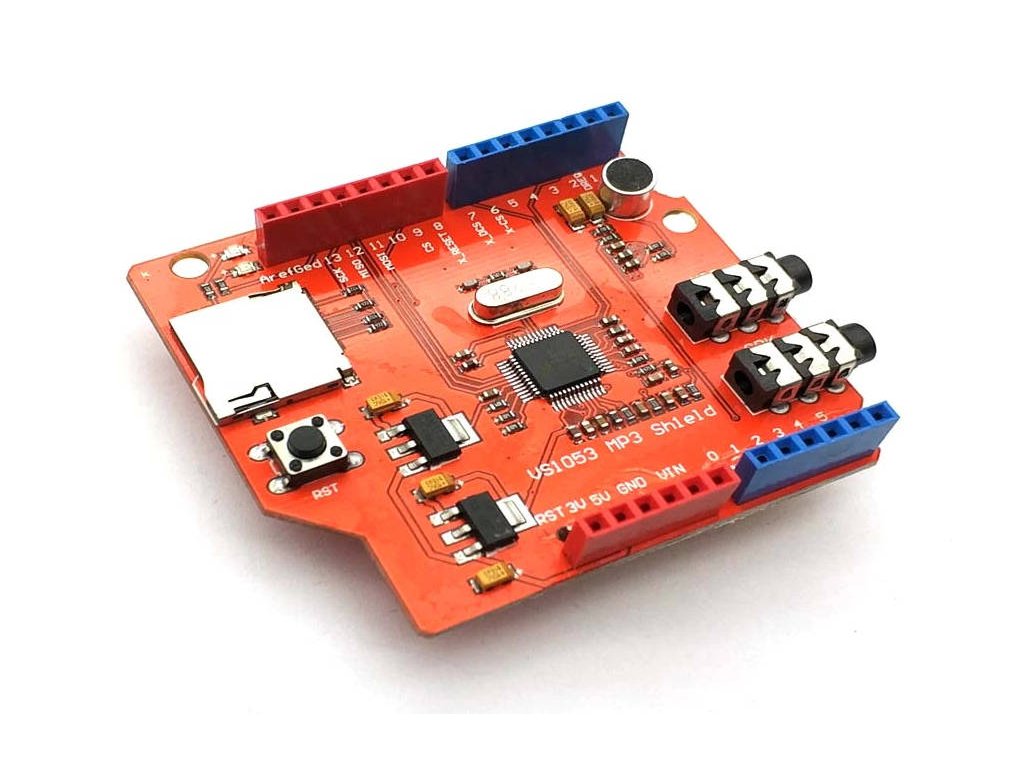

    Shield VS1053B MP3 with TF Reader for Arduino Uno

    Code: LA110026
    1 rating
    6195 2 shield vs1053b mp3 s tf cteckou pro arduino uno
    €11,87 €9,81 excl. VAT
    Skladem (1 pcs)
    Delivery to:
    16/12/2024

    Shield VS1053B MP3 with TF Reader for Arduino Uno

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    5573 arduino pro mini atmega328p tqfp 3 3v 8mhz
    Arduino Pro Mini, ATmega328PB TQFP 3.3V 8MHz
    Skladem (24 pcs)
    €3,22 excl. VAT
    €3,90

    Pro Mini 3.3V development board, compatible with Arduino Pro Mini.

    LA100054A
    foto 1
    Arduino Nano R3, ATmega328 Clone, Soldered pins
    Skladem (70 pcs)
    €5,53 excl. VAT
    €6,69

    Arduino Nano R3 with soldered pins that fits perfectly as a module in various electronic constructions.

    LA100004S
    foto 2
    Arduino Nano R3, ATmega328 Clone, Unsoldered pins
    Skladem (5 pcs)
    €4,87 excl. VAT
    €5,89

    Arduino Nano format development board. Its dimensions and pin layout make it an excellent module for various electronic designs.

    LA100004N
    Show all related products

    Product detailed description

    Shield VS1053B MP3 with TF Reader for Arduino Uno

    It supports a variety of music formats.
    Audio connector for headphones and line in.
    Microphone for recording integrated on the shield

    Specifications:

    • Power supply: from Arduino
    • Decodes formats:
      • WAV (PCM + IMA ADPCM)
      • WMA4.0 / 4.1 / 7/8/9 (5-384 kbps)
      • MP3 = MPEG 1 and 2 Audio Layer III (CBR + VBR + ABR)
      • MP1 and MP2 = MPEG 1 and 2 audio layers I & II optional
      • MPEG4/2 AAC-LC (+ PNS), HE-AAC v2 (Level 3) (SBR + PS)
      • FLAC (up to 24 bit, 48 kHz)
      • General MIDI 1 / SP-MIDI
      • Ogg Vorbis
    • Dimensions: 65x56mm
    • Weight: 21g

    Sources:

    Delivery components:

    • 1pc Shield VS1053B MP3 with TF Reader for Arduino Uno

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Arduino UNO shields
    Warranty: 2 years
    Weight: 0.022 kg
    Shield function: Data storage, Sound
    2114 arduino mega tft lcd shield
    Arduino Mega TFT LCD shield
    Skladem (9 pcs)
    €3,88 excl. VAT
    €4,70

    Shield for boards Arduino Mega with converter for TFT LCD displays./p>

    LA110046
    foto 1
    Reprap 1.6 for 3D Printers, CNC
    Skladem (5 pcs)
    €7,50 excl. VAT
    €9,08

    Plate shield Arduino Mega, thanks to which you can control your 3D printer or other CNC machines.

    LA110063
    foto 5
    Arduino MEGA prototype Shield + mini BreadBoard
    Skladem (19 pcs)
    €2,11 excl. VAT
    €2,55

    Shield for Arduino MEGA designed for prototyping other shields with a blank PCB and an adhesive non-soldering field.

    LA110001
    Show all alternative products
    5,0 1 rating
    5
    1x
    4
    0x
    3
    0x
    2
    0x
    1
    0x
    Do not fill out this field:
    5
    M Avatar of author | 28/04/2024
    Přehrávání funguje dobře, bez prodlevy.
    Do not fill out this field:
    L Avatar of author reklamovanost dilu 22/03/2024 15:34
    Dobry den stalo se Vam ze by zakaznik tenhle modul reklamoval z duvodu propojeni pinů na cipu kapkou cinu nebo neodbornym pripajenim ? mam tehnle modul odjinud a po dlouhe dobe jsem si vsimnul ze tam je kapka cinu - jeste sem ho teda nezkousel nemel sem zrovna cas na projekt tak projizdim fotky na internetu a nasel sem treba 3 ruzne fotografie kde to bylo take
    Reply
    MF Avatar of author reklamovanost dilu 26/03/2024 12:46
    Dobrý den, s něčím podobným jsme se zatím nesetkali.
    P Avatar of author Zpoždění po startu 07/02/2022 09:21
    Dobrý den, chtěl bych se zeptat, jestli má module nějakou prodlevu po příkazu playTrack? Momenálně zkouším https://www.laskakit.cz/audio-mini-mp3-prehravac/ a tam je téměř sekundová prodleva. Pro svůj projekt potřebuji module bez prodlev. Děkuji Petr
    Reply
    MF Avatar of author Zpoždění po startu 14/02/2022 14:33
    Dobrý den, otestovali jsme tu jeden skladový kus a přehrává skladbu ihned po zadání příkazu na spuštění.
