Five-wire servomotor HA-LB5W 6kg

Product detailed description

5-wire central locking servo motor, rotary head, displacement 6 kg, set of rods and fasteners.

Specifications:

• Speed: 0.2s
• Pull/push force:
  • Dynamic: 5-6kg
  • Static: 2.0-2.5kg
• Operating Voltage: 12V (9-15V) DC
• Power consumption: approx. 4A
• Stroke: 21mm
• Operating temperature range -20°C to +80°C
• Lifetime: more than 100 000 cycles

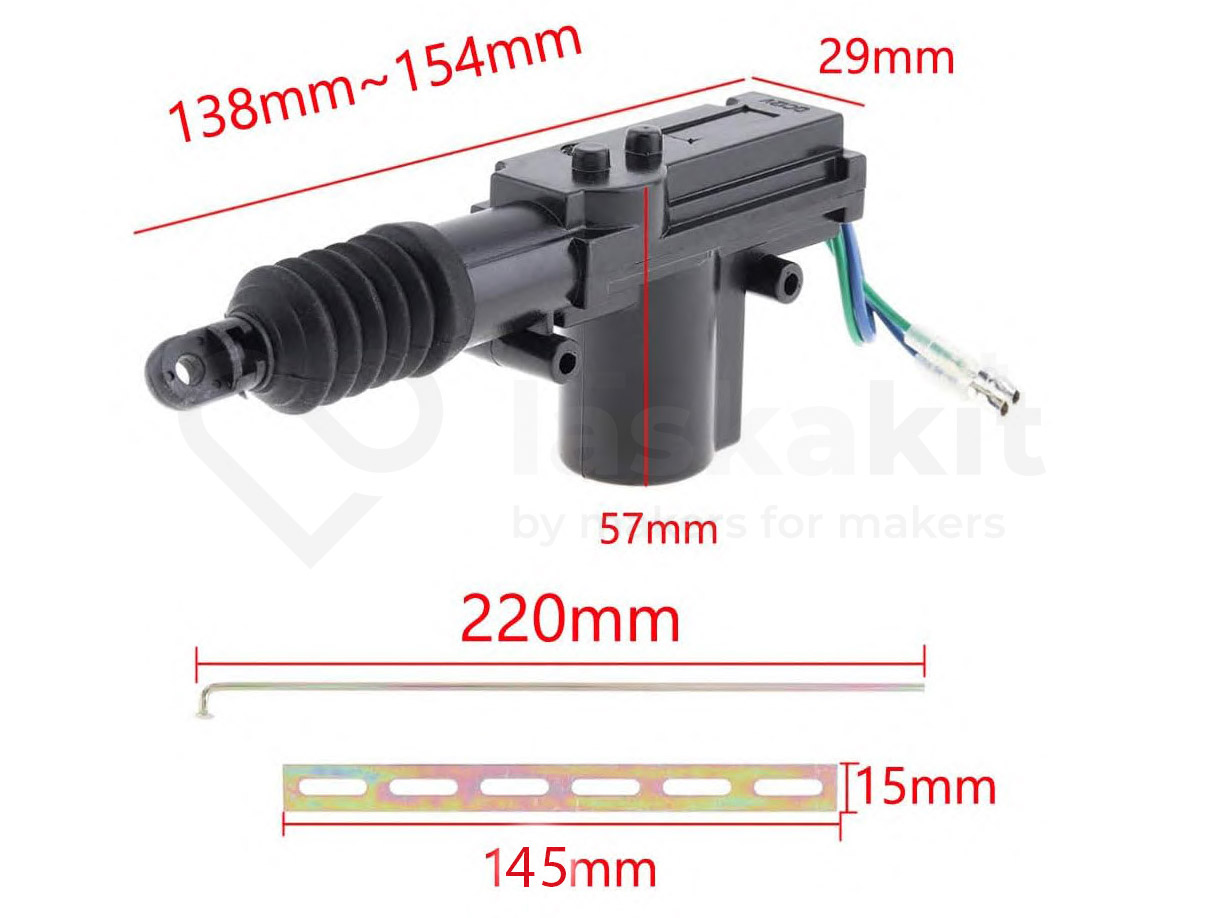

• Dimensions: 145x60x30mm
• Weight: 122g

Wire connection:

• Blue and green wire - Power supply
• Brown and white wire - switched contacts of the internal switch. These wires are connected to the skeleton, which is fed to the motor with a black wire. The skeleton is on brown or white wire depending on the condition of the bike.
• Black wire - ground

Included in delivery:

• 1pc Servomotor five-wire HA-LB5W 6kg

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
