Product detailed description

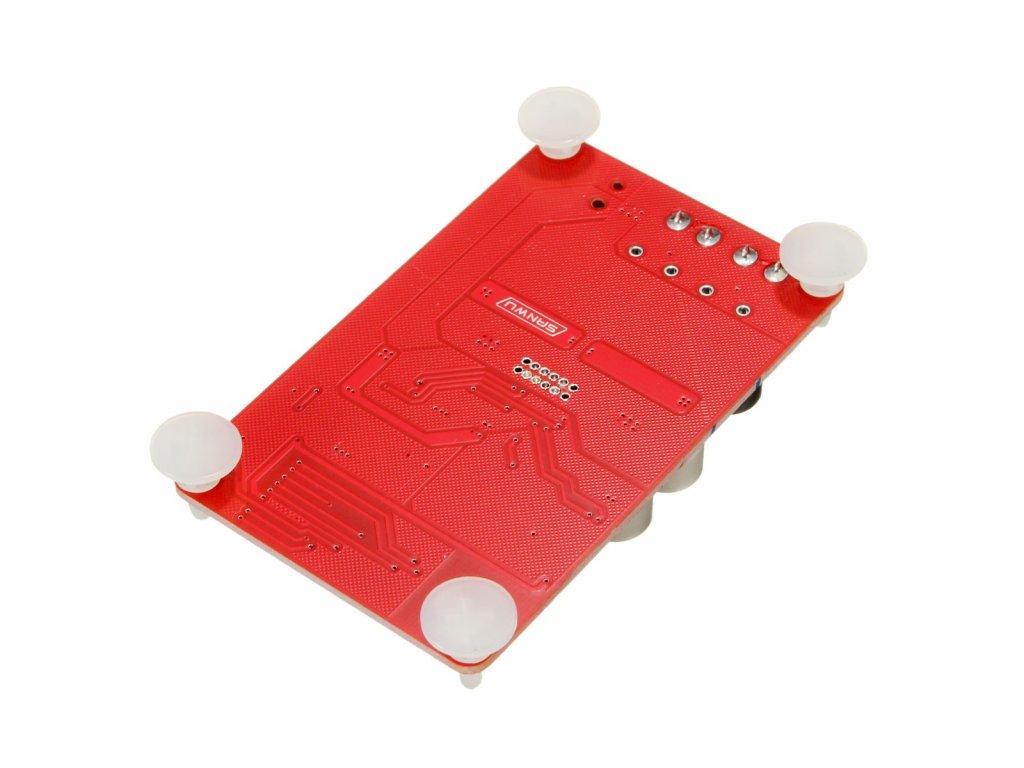

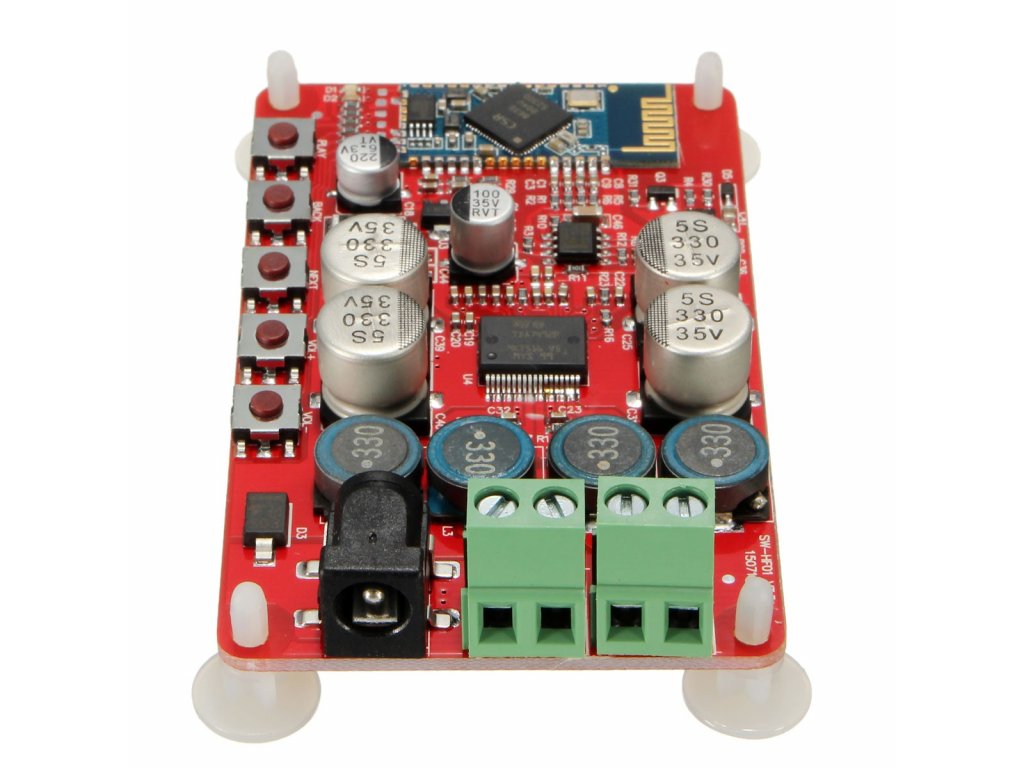

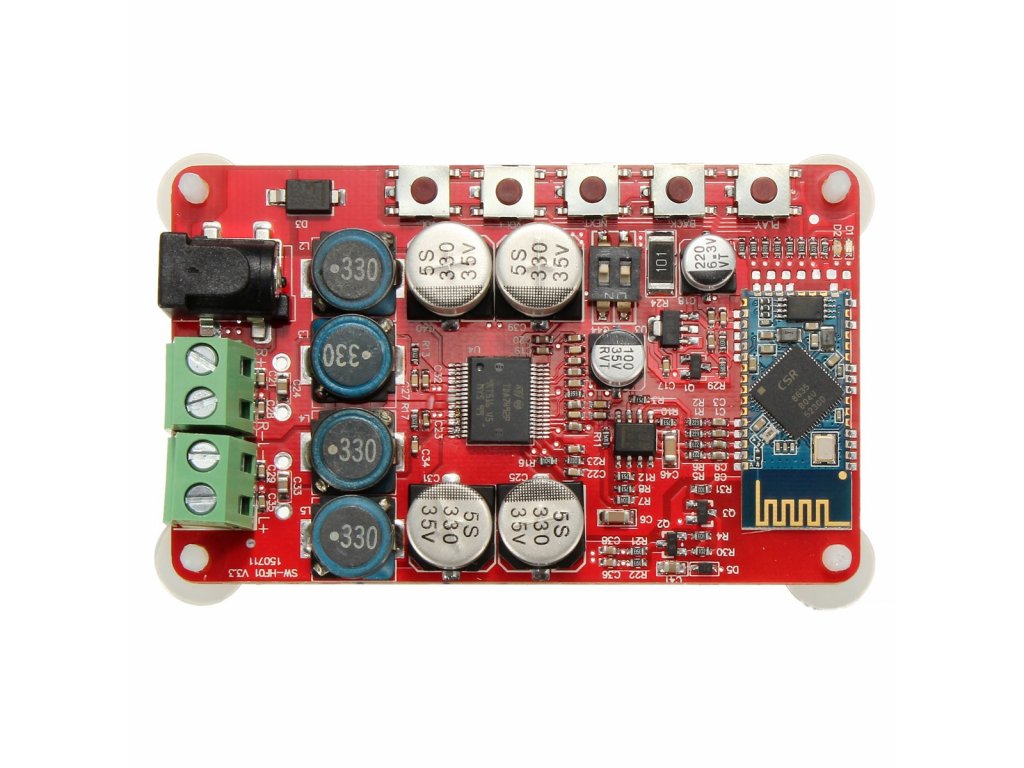

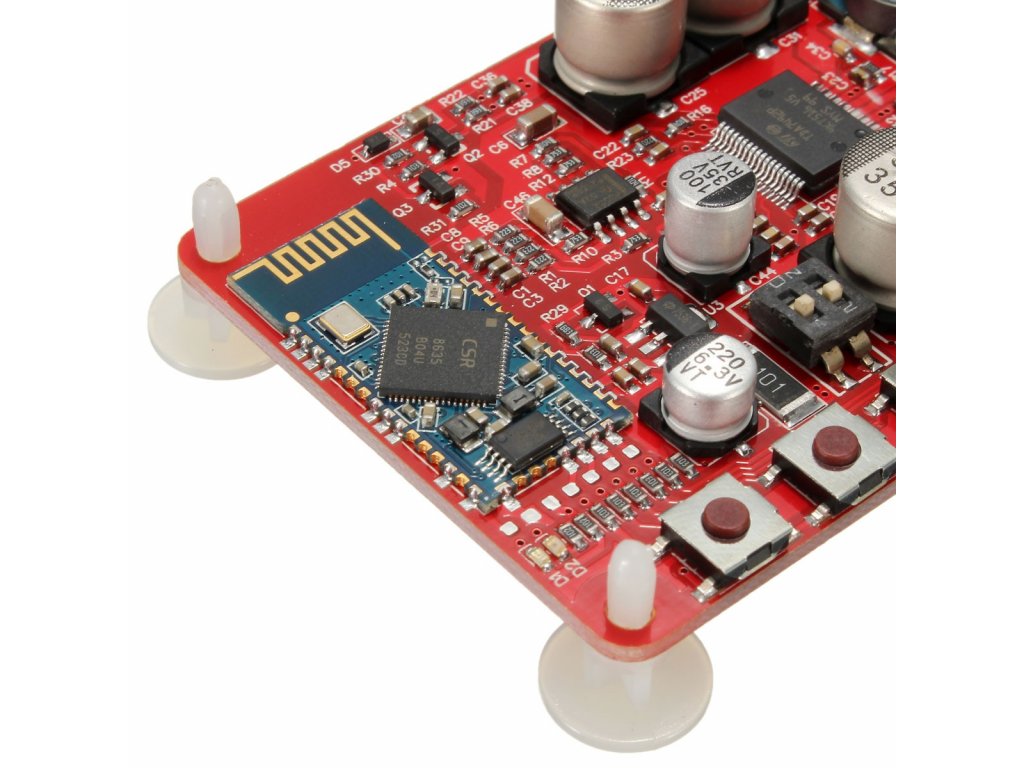

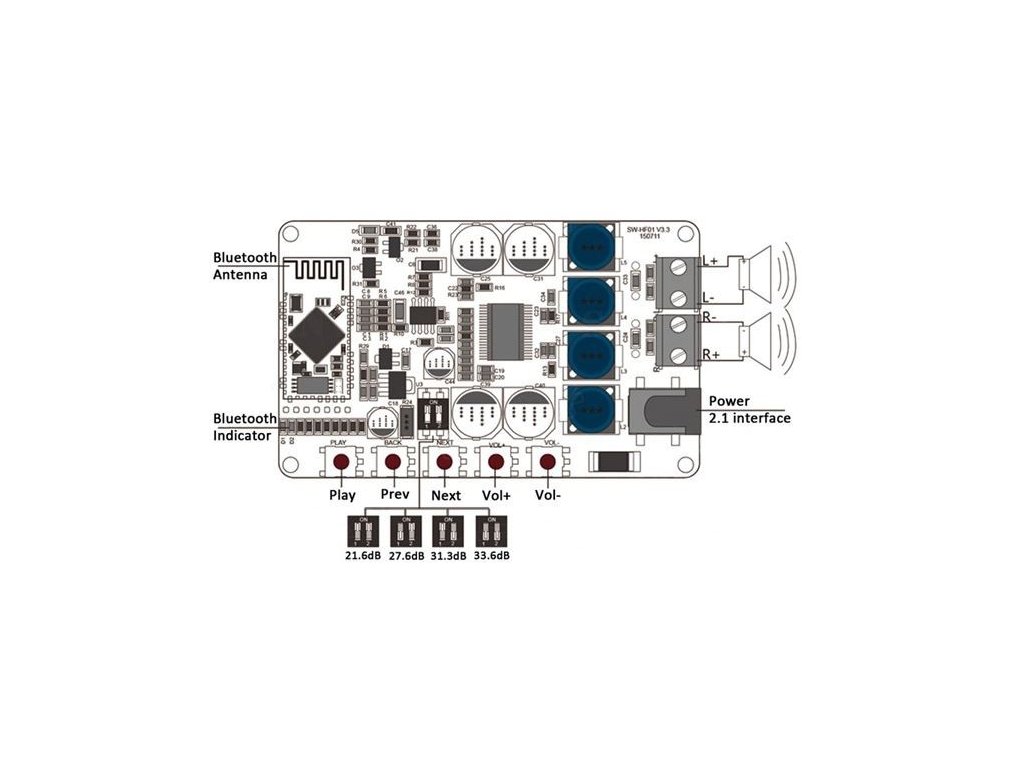

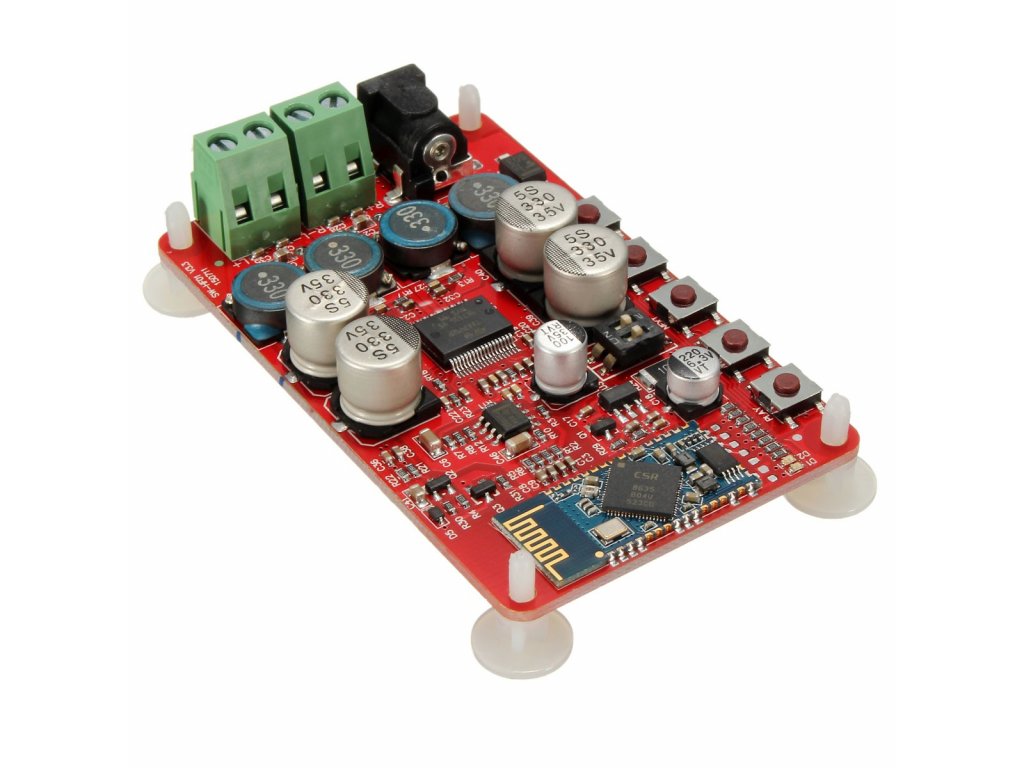

SANWU SW-HF01 V3.2 Bluetooth CSR4.0 Audio Amplifier 2x25W TDA7492P
Integrated protection against overheating and short circuit.
Specifications:
- IO: TDA7492P
- Bluetooth: CSR8635
- Supply voltage: 8-25V, (recommended 20V/2A)
- Output power max 2x25W for 8Ω speakers
- Frequency range: 20Hz to 20kHz
- Quiescent current: approx. 20mA
- Class: D
- Module dimensions: 81x50mm
- Weight: 13g
Included in delivery:
- 1pc SANWU SW-HF01 V3.3 Bluetooth CSR4.0 Audio Amplifier 2x25W TDA7492P
Sources:
Remark:
This product is not a standalone functional unit and may require professional installation.
Additional parameters
| Category: | Pre-Made Electronic Modules & Accessories |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.038 kg |
