Product detailed description
RobotDyn 3D printer KIT Mega 12864 + 5 pcs A4988
Popular Mega shield of the company RobotDyn including Arduino Mega, LCD connectors, 128x64 LCD, limit switch, drivers and passive coolers.
All the electronics of most RepRap printers are controlled by this electronic board. This board is connected to and expands the Arduino Mega programmable logic controller (PLC). Includes 5 slots for A4988 (DRV8825 ) stepper motor drivers.
Board Specifications:
- Adapted for Cartesian coordinate system
- Can be extended with various accessories
- 3 source outputs for printhead/fan/heated pad heating and 3 thermistor circuits for temperature measurement.
- Includes five stepper motor drivers
- Input voltage 12V
A4988 parameters:
- Adjustable current limit,
- Max current 1.5A, 2.2A with active cooling,
- thermal protection,
- current protection,
- 6 resolutions: full-step, half-step, 1/4-step, 1/8-step and 1/16-step,
- Supply voltage 8,2 - 24V.
Wiring

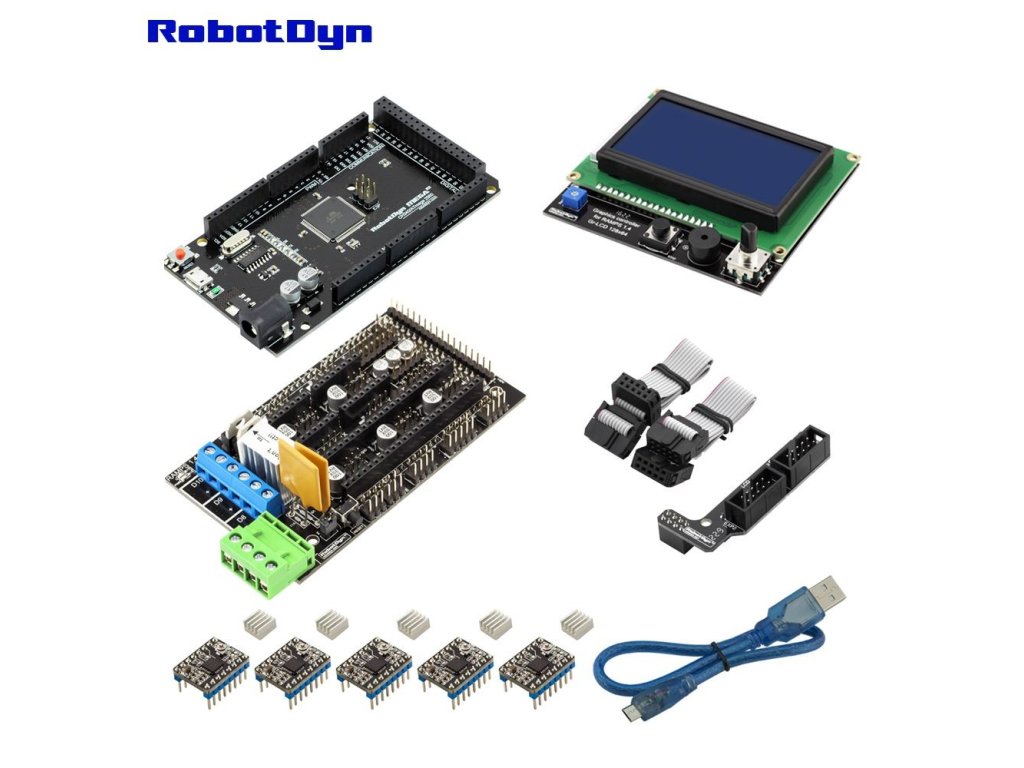

Included in delivery:

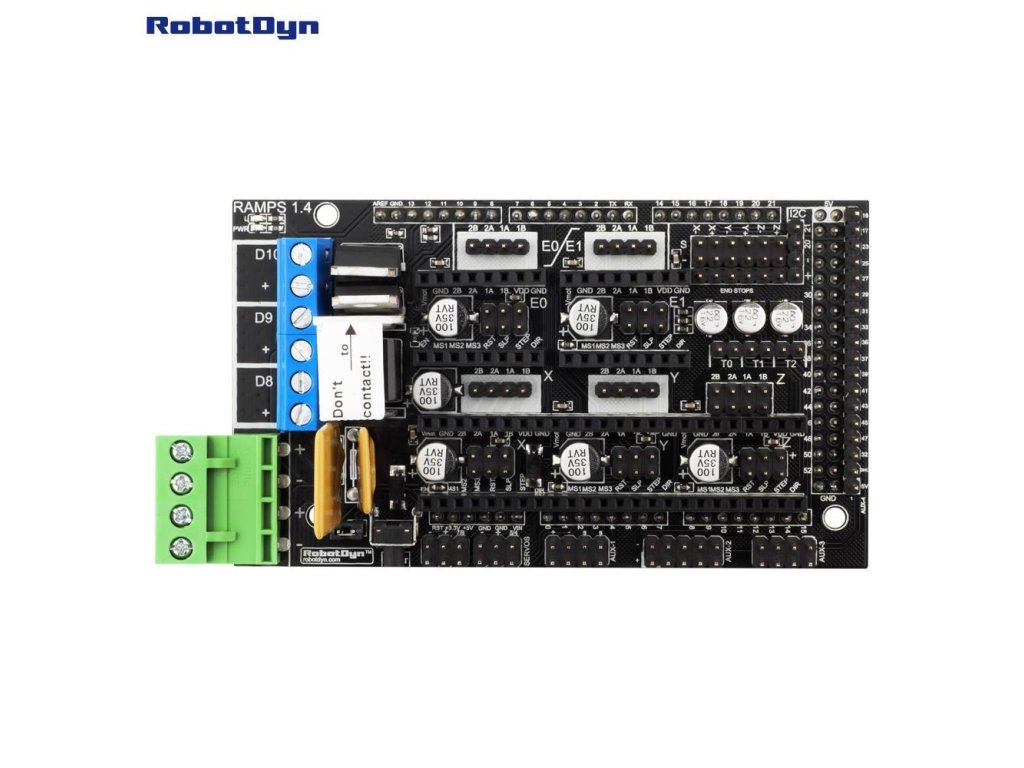

- 1pc RobotDyn Reprap Ramps 1.4 shield

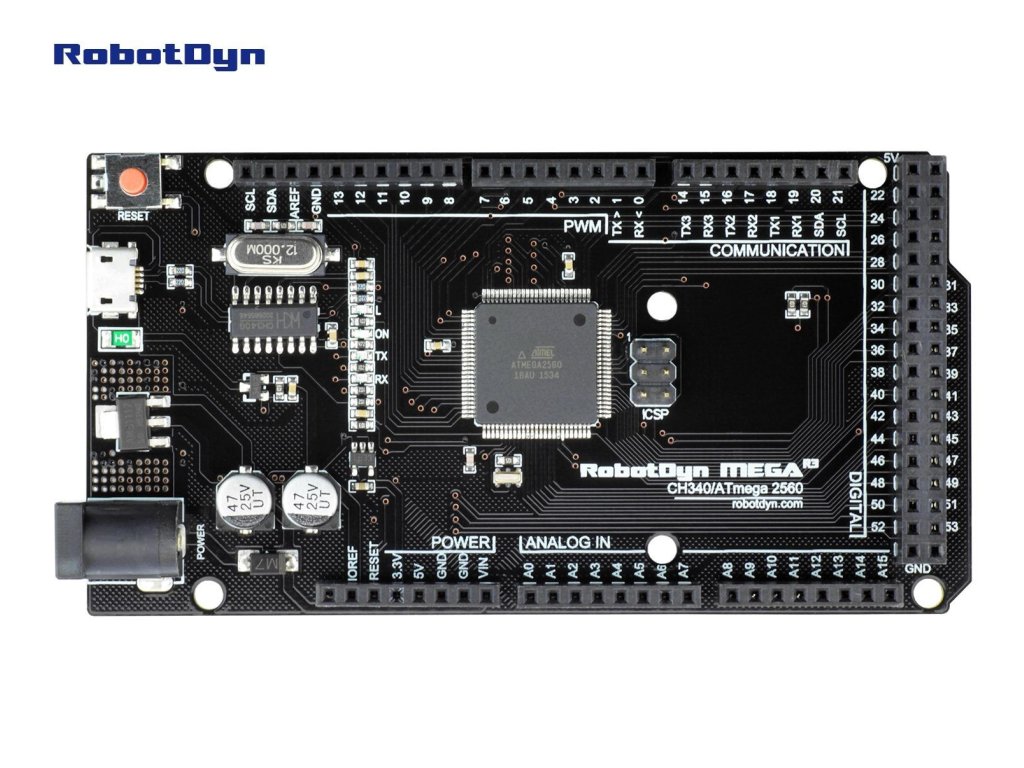

- 1pc RobotDyn Arduino Mega CH340

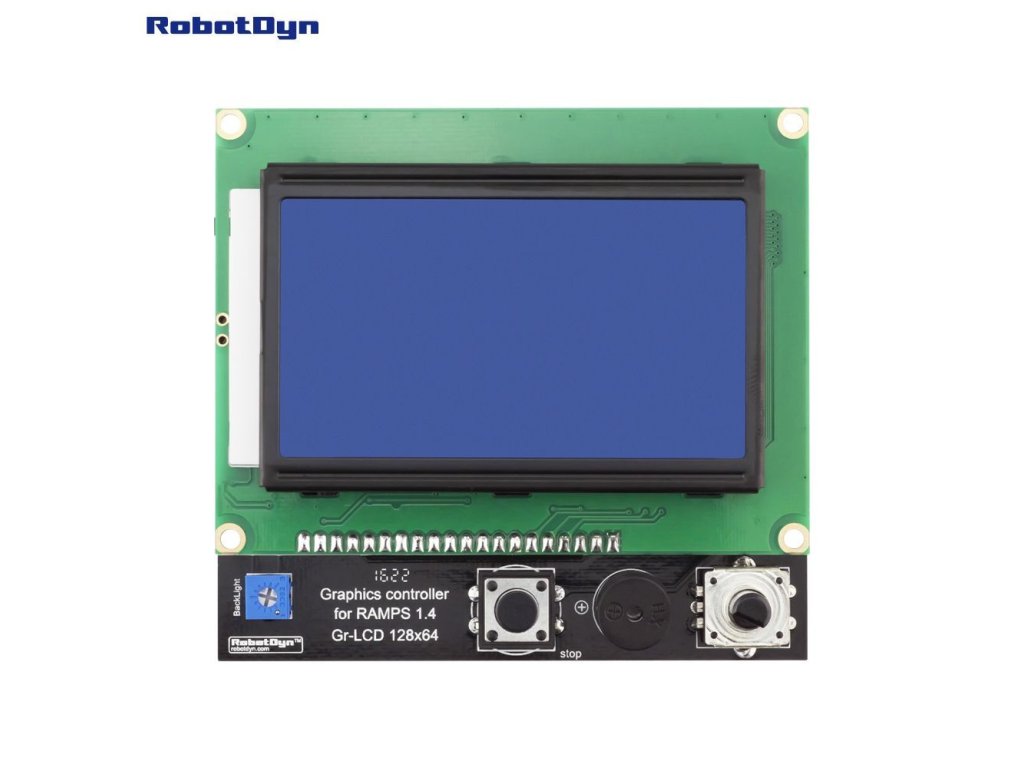

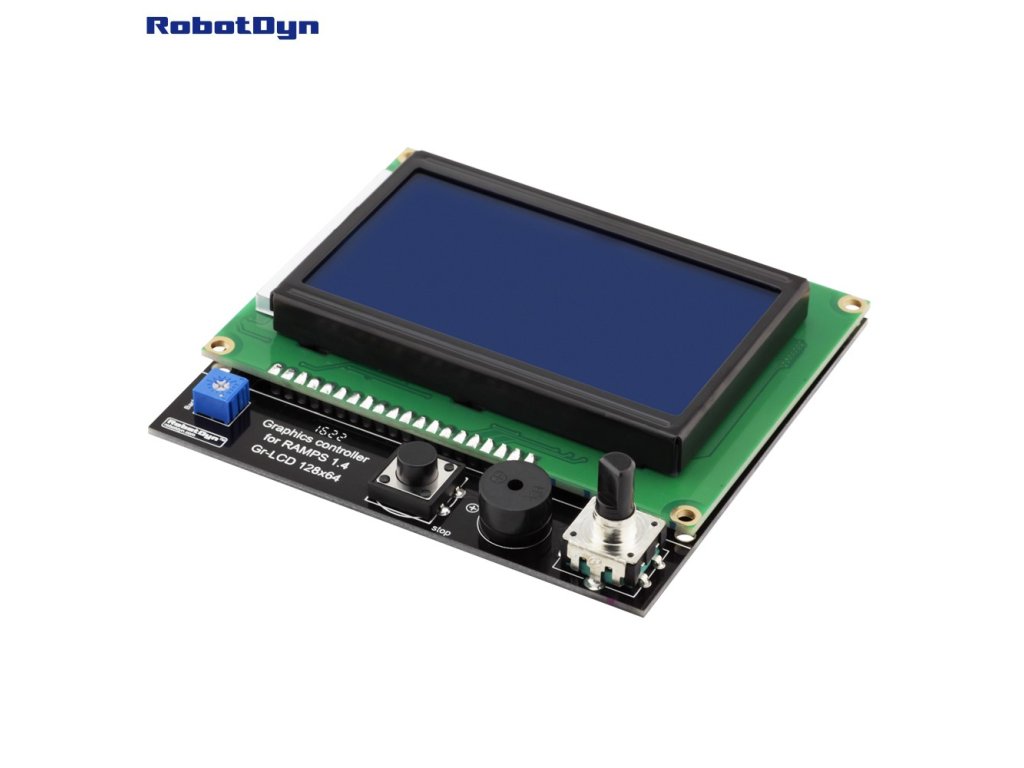

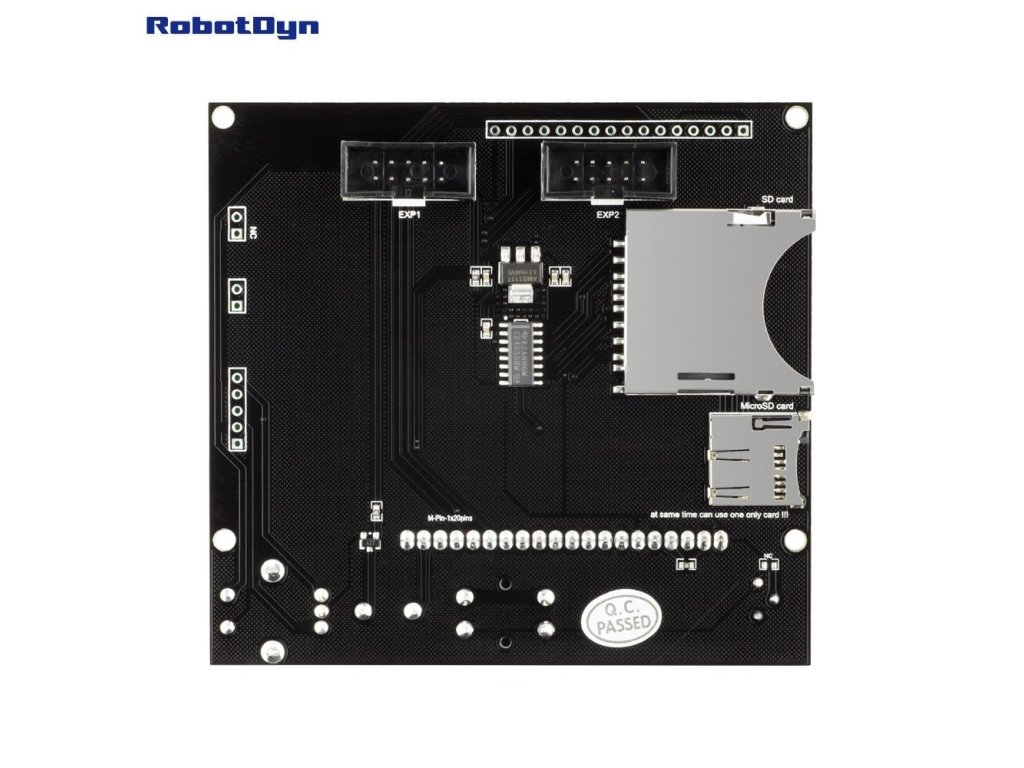

- 1pc RobotDyn 128x64 LCD Display and Driver for 3D Printers

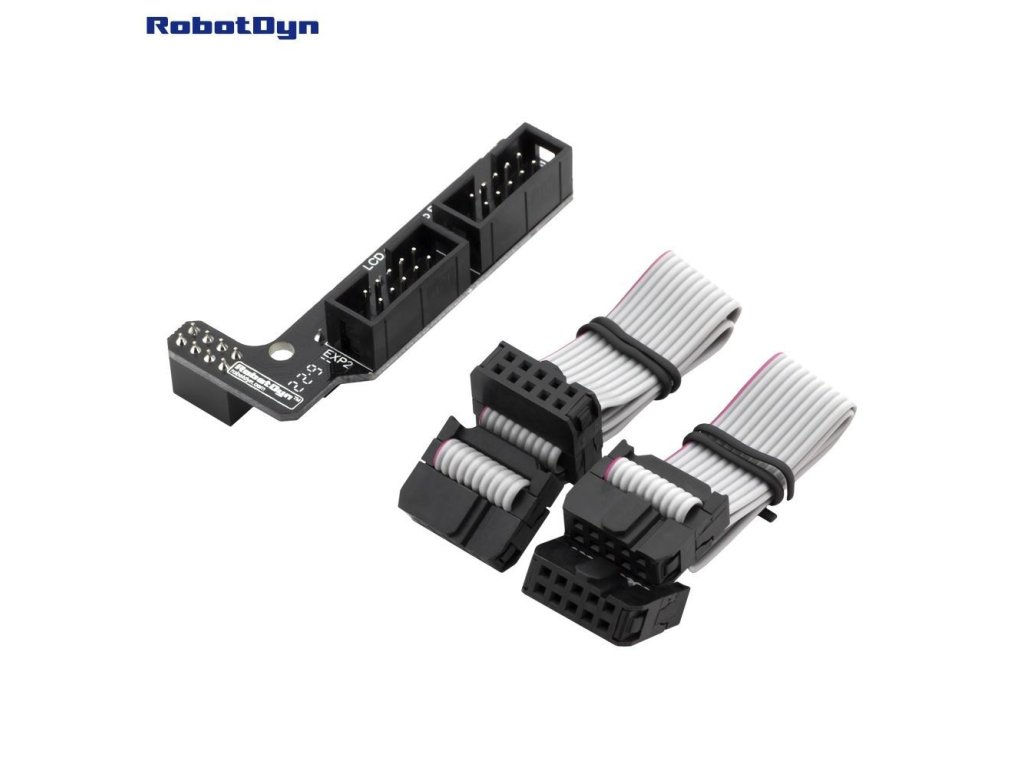

- 1pc RobotDyn LCD Adapter

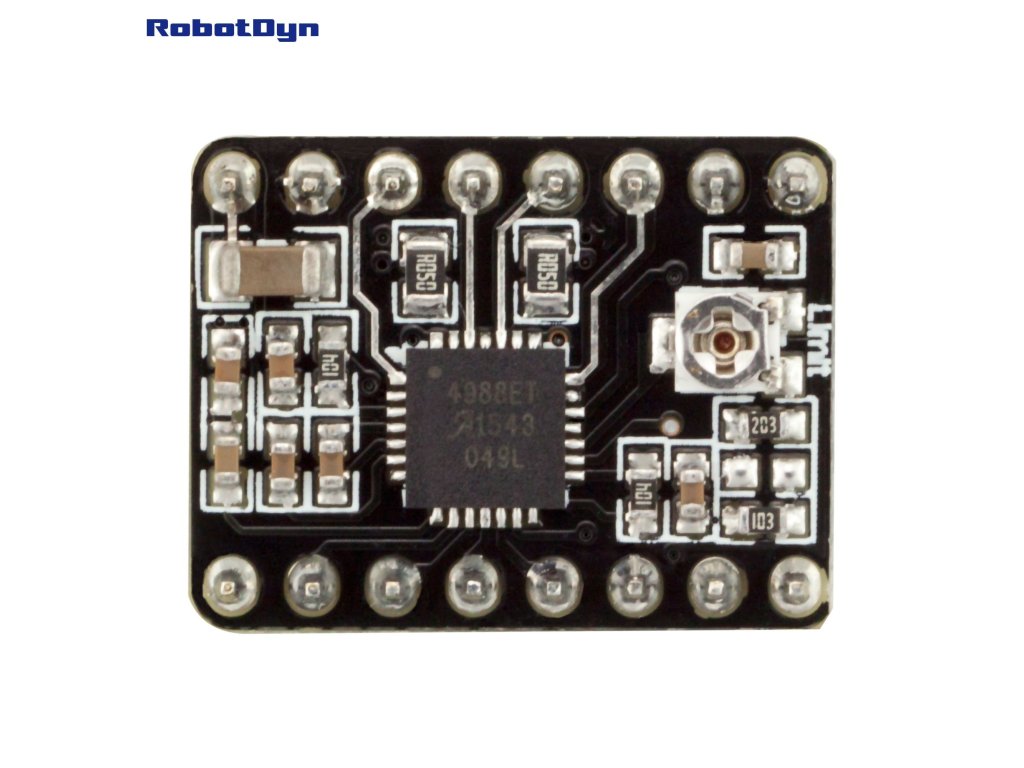

- 5 pcs RobotDyn Driver A4988

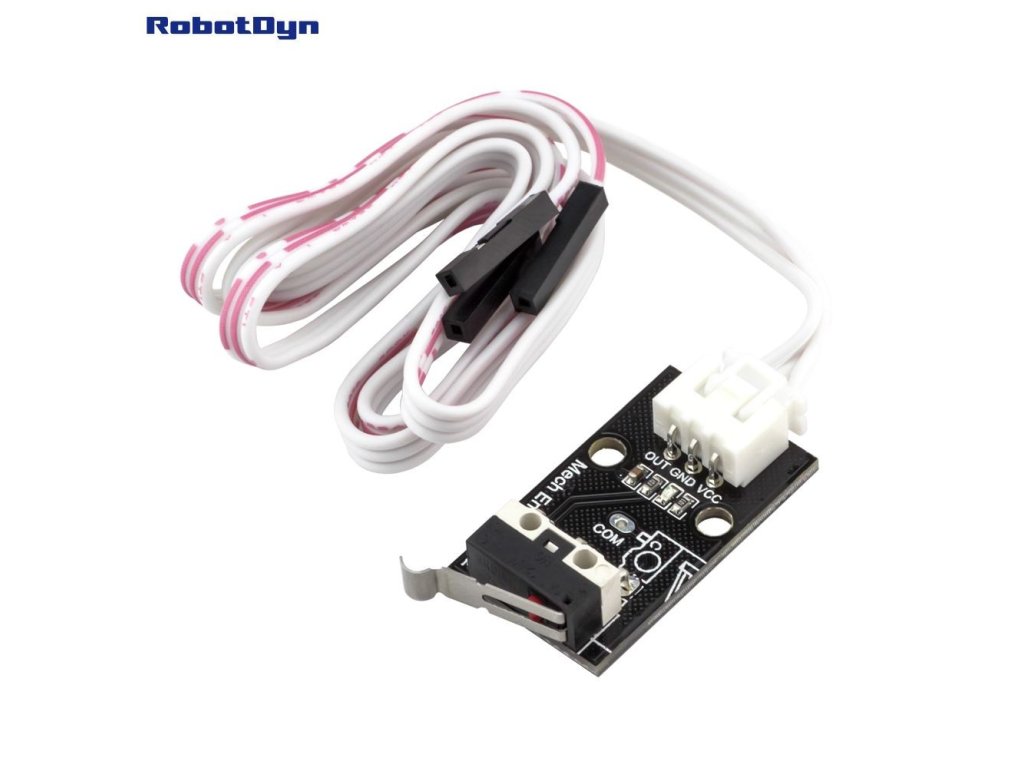

- 6 pcs RobotDyn end stop / switch

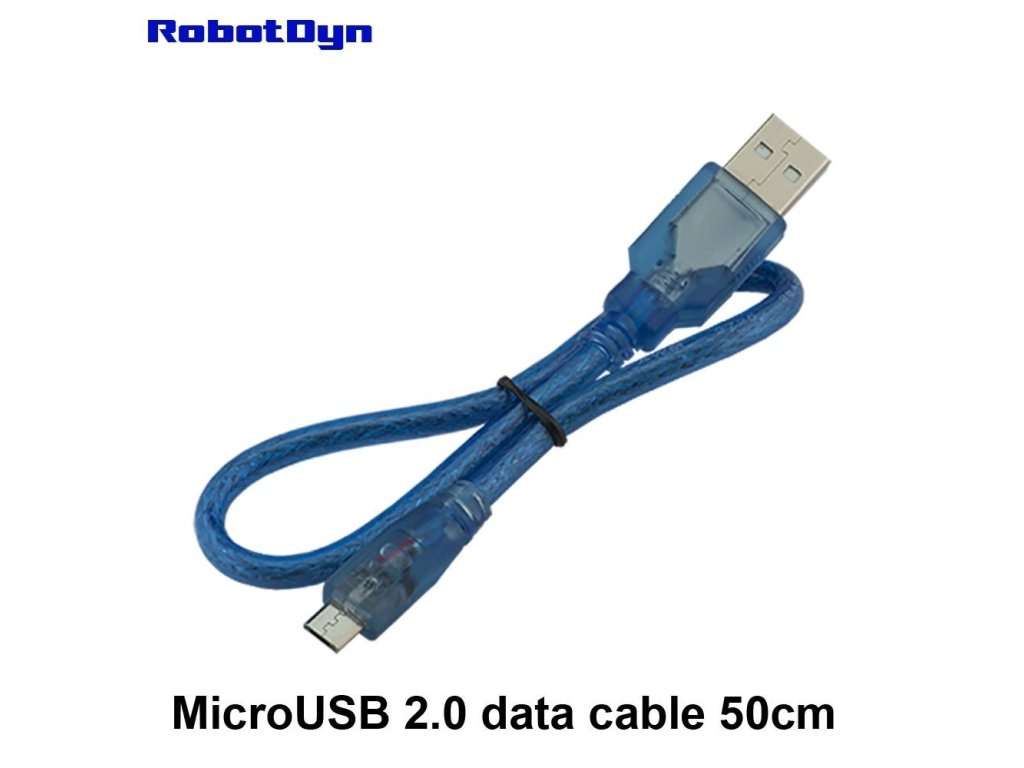

- 1 pc microUSB cable
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
- After mounting the shield, please check that the pins from the bottom side do not touch the component housings on the bottom plate! This could cause a short circuit and destroy the shield or even the motherboard. Goods damaged in this way are not covered by the warranty!
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.44 kg |
