Raspberry Pi Pico W

Product detailed description

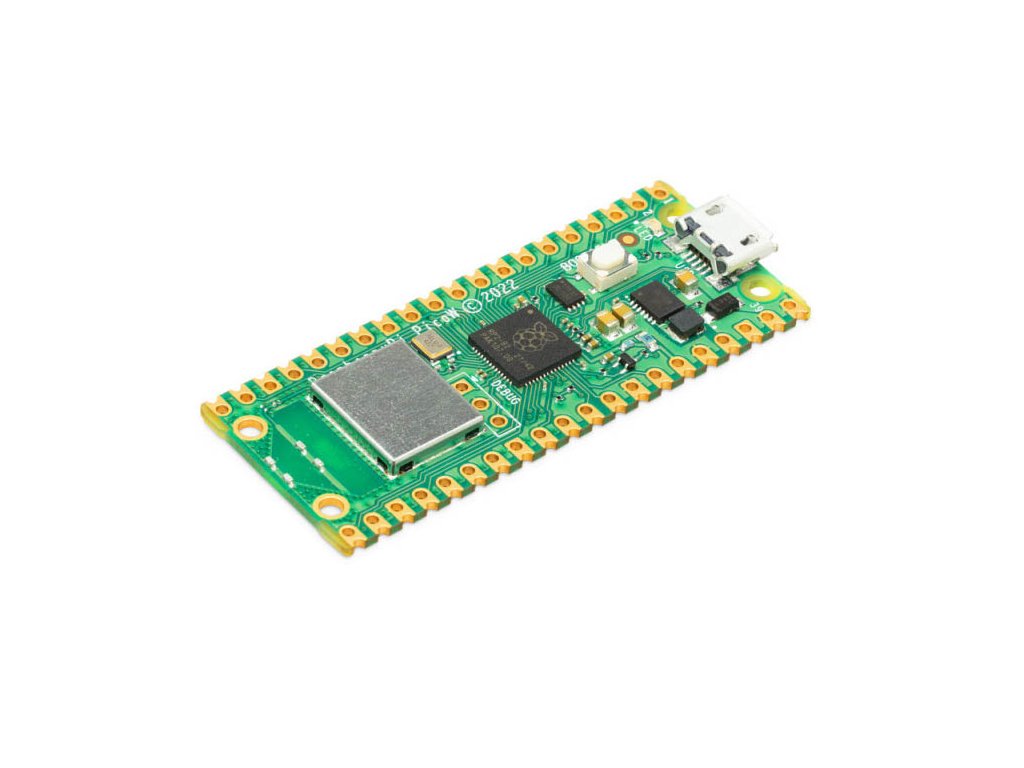

Raspberry Pi Pico W is a microcontroller board developed by the Raspberry Pi Foundation RP2040.

The chip is equipped with two ARM Cortex-M0+ cores at 133 MHz; 256 kB RAM and 6 dedicated I/Os for SPI Flash. Raspberry Pi Pico is designed to be flexible and cost effective, has 2MB of built-in QSPI Flash memory and gives you access to 28 GPIO pins and a wide range of interface options. This version is enriched with WiFi.

The Pico board is equipped with multifunctional soldering faces that allow soldering of pin rails and, thanks to the standard 2.54mm pitch of the faces, it can be inserted into a non-solderable field or the entire board can be used as a surface mount module.

A MicroPython port, detailed documentation, and easy installation make the Raspberry Pi Pico board suitable for beginners. An SDK for C/C++ is also available. But Pico also has the power and flexibility to suit professional users, whatever your applications from machine learning, smart homes, wearables to robotics.

Specifications:

• Dual-core Arm Cortex M0+ processor, up to 133MHz
• 264KB of SRAM + 2MB on-board Flash memory
• USB 1.1 - device or host mode
• Sleep mode and low power sleep mode
• 26x multi-function GPIO pins
• 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC, 16x programmable PWM channels
• Precision clock and timer on chip
• Temperature sensor
• Libraries for floating point on chip
• 8x programmable IO (PIO) peripherals
• WiFi: 2.4GHz 802.11n
• Drag-and-drop programming using USB mass storage
• Dimensions 21x51x1mm - DIP40 pin format with 2,54mm pitch

Included in delivery:

• 1pc Raspberry Pi Pico W

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
