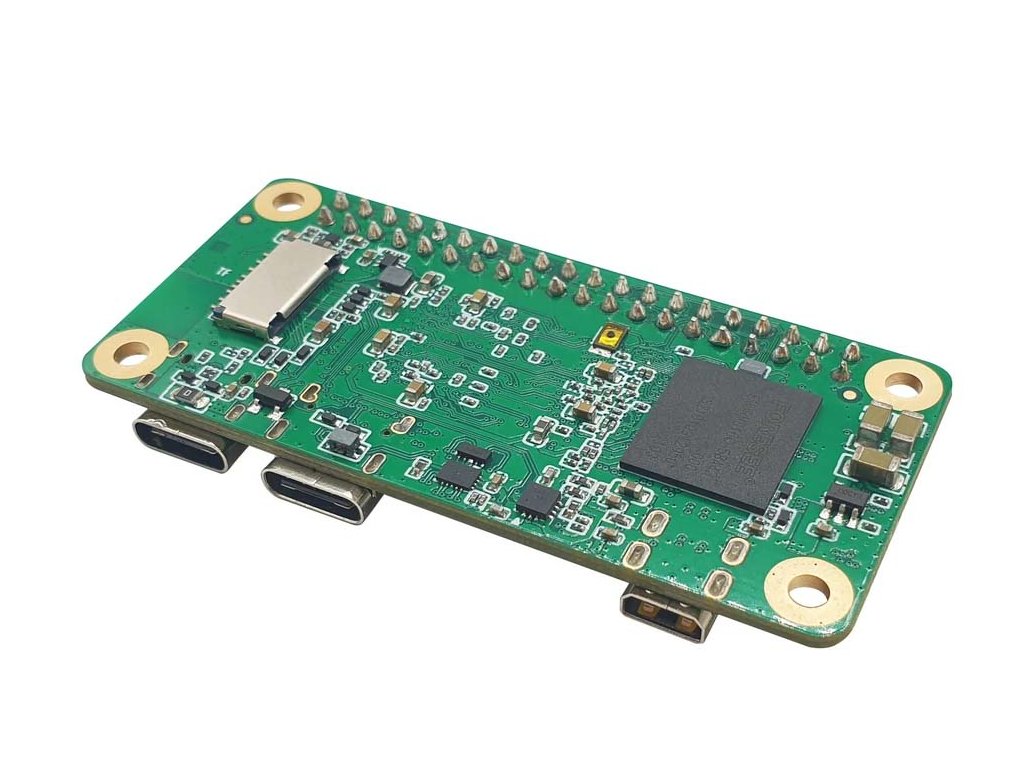

Radxa Zero D4E16T 4GB RAM 16GB eMMC External antenna

Product detailed description

The single-board Radxa Zero is the Radxa company's newest addition to their portfolio of single-board computers. The Zero is based on the Amlogic S905Y2, which is a quad-core processor with a frequency of up to 1.8 GHz.

The RAM memory size of the Zera ranges from 512 MB to 4 GB, and with that comes the eMMC memory directly on the board.

The Zero with 512MB/1GB memory has only a microSD card slot, while the Zero with 2GB/4GB also includes 8GB eMMC (for 2GB RAM) or 16GB to 128GB RAM for the model with 4GB RAM.

The Zero with 512MB/1GB has a circuit for Wi-Fi connectivity 802.11 a/b/g/n/ and Bluetooth 4, while the version with larger RAM has 802.11 b/g/n/ac and Bluetooth 5.

Radxa Zero can also boast of HDMI 4K@60 video output. USB ports include 1x USB 2.0 and 1x USB 3.0 with USB-C connector.

Supported operating systems include Android 9, Ubuntu, Debian and others.

Specifications (English):

• Amlogic S905Y2 64bit quad core processor

  • Quad Cortex-A53@1.8GHz, ARM G31 MP2 GPU, supporting OpenGL ES 3.2, Vulkan 1.0, and OpenCL 2.0.
• GPU
  • HDMI 2.0 up to 4K@60
• Memory LPDDR 4
  • 32bit LPDDR4@3200Mb/s
• Wifi/BT Antenna
  • 802.11 ac (WiFi 5), BT 5.0 with on board antenna (optional external antenna)
• Storage eMMC 5. 1
  • soldered high performance eMMC 5.1 with capacities of 16GB
• Micro SD card
  • uSD slot supports up to 128G uSD card
• Display Micro HDMI
  • HDMI 2.1, 4K@60 HDR
• Peripherals
  • HD codec H265/VP9 decode 4Kx2K@60
• USB 3.0 Type-C HOST x1
  • USB 3.0 HOST
  • dedicated USB3.0 channel
• USB 2.0 Type-C OTG x1
  • USB 2.0 OTG
• Network
  • Wireless 802.11 ac wifi 2.4/5GHz, Bluetooth 5.0
• IO 40-pin expansion header (depending on the model):
  • 2 x UARTs
  • 2 x SPI bus
  • 3 x I2C bus
  • 1 x PCM/I2S
  • 1 x SPDIF
  • 2 x PWM
  • 1 x ADC
  • 6 x GPIOs
  • 2 x 5V DC power in
  • 2 x 3.3V DC power in
• Others
  • Crypto Engine
  • one button
  • Size 66mm x 30mm

Delivery components:

• 1pc Radxa Zero D4E16T 4GB RAM 16GB eMMC External antenna

Remark:

• Required for operation: microSDHC card
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Pin rail not included
