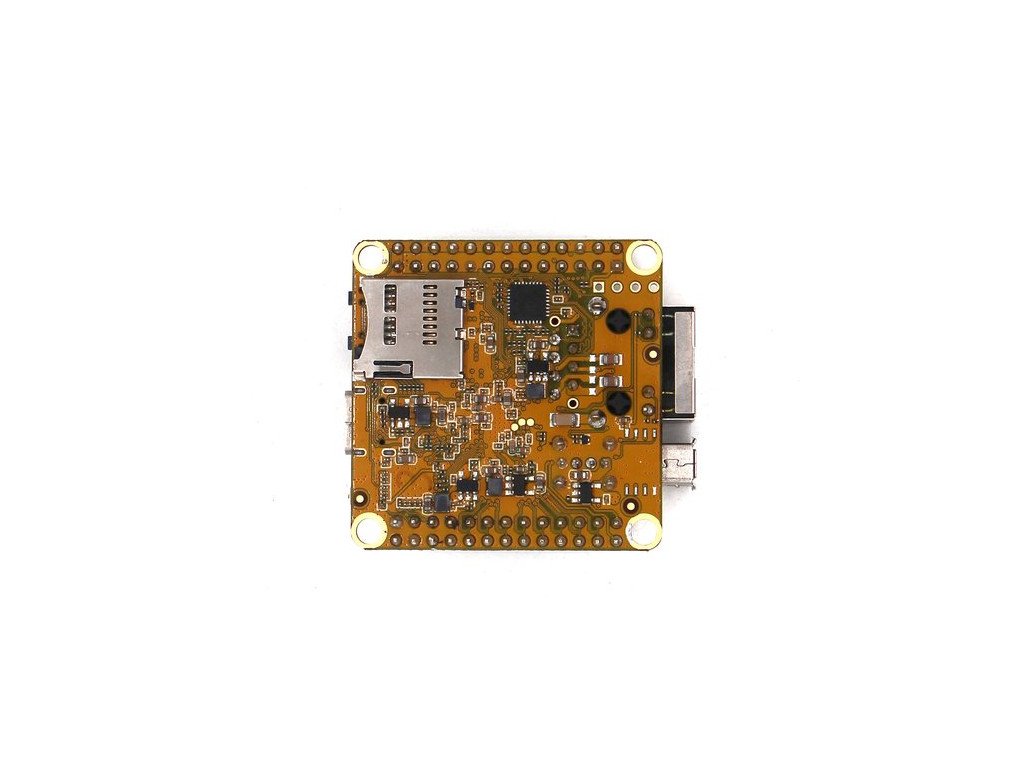

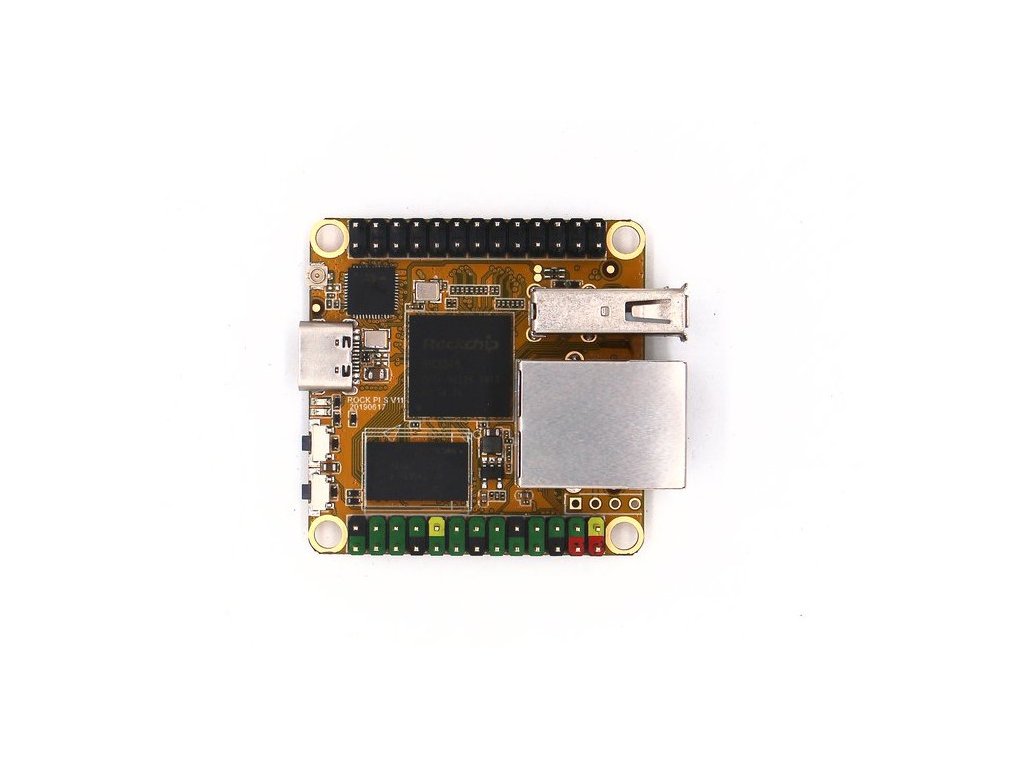

Radxa Rock Pi S D4WN8 512MB RAM 1GB NAND BT/WIFI

Product detailed description

Even smaller than the small one - that's the Rock Pi S. Supercharged RK3308 processor on a 43x43 mm board. The RK3308 processor contains four cores with a frequency of up to 1.3 GHz. On such a small single board computer you will also find an Ethernet connector (100 Mbps), USB-A connector (USB 2.0), Wi-Fi connectivity 802.11 b/g/n and Bluetooth 4.0.

You can power the Rock Pi S via the USB-C connector, pin spike.

Supported operating systems include Debian, Ubuntu, Armbian, Diet Pi and others.

• So don't look for any option with a graphical interface, or there is no point in installing one.
• System disk images can be downloaded from the manufacturer's website - https://wiki.radxa.com/RockpiS/downloads
• The downloaded image needs to be unzipped with gzip so that the result is a *.img file.

Specifications:

• Rockchip RK3308 Quad A35 64bit processor with built-in VAD
• 512MB RAM versions
• USB 2.0 OTG (type C) + USB 2.0 HOST (type A)
• RJ45 10/100Mbit Ethernet
• 802.11 b/g/n Wifi + Bluetooth 4.0 with external antenna connector
• 26 pin GPIO header
• 26 pin voice/audio header includes I2S, PCM, TDM, PDM, SPDIF, and HDMI ARC
• Size 1.7x1.7inch (~38.1x38.1mm)
• Debian, Ubuntu, Armbian and Slackware ARM support
• 1Gb SLC NAND flash (data protection in case of power failure)
• Power demand idle: 0.5W / full load: 2.8W
• The CPU needs no cooling!

Included in delivery:

• 1pc Radxa Rock Pi S D4WN8 512MB RAM 1GB NAND BT/WIFI

Remark:

• Suitable to purchase for full wifi and bluetooth functionality: Antenna 10cm 2.4G + Pigtail U.FL (IPEX)- SMA Female
• Required for operation: microSDHC card - recommended size at least 8GB, but 2GB is fine
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
