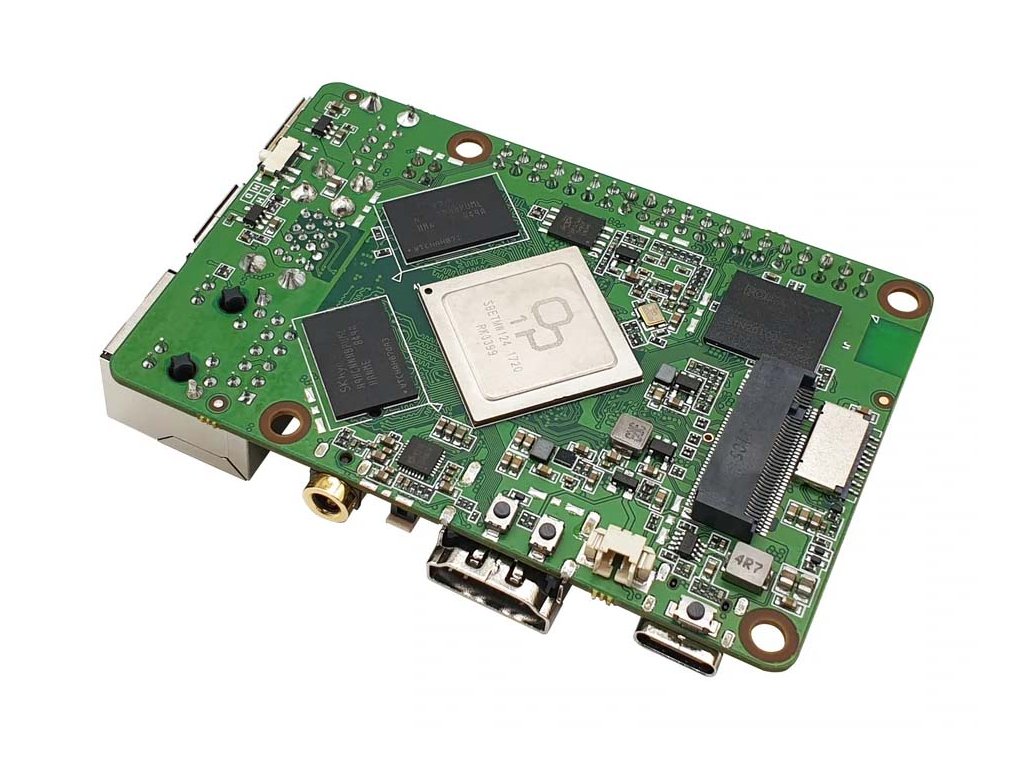

Radxa Rock Pi 4 B+ B4E32 4GB RAM 32GB eMMC

Product detailed description

Small, portable and very powerful single board computer Rock Pi 4B+. Thanks to the Rockchip OP1 64bit processor, it achieves very high performance and outperforms most commonly available single board computers from competitors. And you just have to have that.

And a more powerful processor isn't the only feature in which it excels over the competition. Rock Pi 4B+ has eMMC memory from 16 to 128GB. Additionally, the 4B+ includes an M.2 SSD slot, Wi-Fi 802.11 b/g/n/ac , Bluetooth 5.0 connectivity, and gigabit Ethernet with PoE HAT support (only with the PoE HAT expansion board).

There are also 4 USB - 2x USB 2.0 and 2x USB 3.0 with USB-A connector. You can connect a display with up to 4k@60Hz resolution thanks to the HDMI connector on the board.

Supported operating systems include Android 9 TV, Android 7, 9, 10, Ubuntu Server, Debian, Armbian, LibreElec, Diet Pi and many others - so you really don't have to worry about any system not running.

Specifications (English):

• OP1 64bit hexa core processor
  • Dual Cortex-A72 (up to 2.0Ghz) plus quad Cortex-A53 (up to 1.5Ghz) Harvard Superscalar processor cores
• GPU
  • Mali T860MP4 GPU, supports OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11.
• Memory LPDDR 4
  • 64bit dual channel LPDDR4@3200Mb/s, 4GB
• SPI Flash
  • 4MB SPI flash not soldered - NVMe booting from SPI supported / suitable memory can be purchased here: W25Q64FVSSIQ
• Wifi/BT Antenna
• Wifi/BT with external antenna support*
• *an uFL connector must be soldered on the board, which will then disable the on board antenna. Connector and soldering service available in the store!
• Onboard eMMC module
  • Industrial level high performance eMMC storage, 32G (soldered)
• Micro SD card
  • uSD slot supports up to 128G uSD card
• M.2 SSD
  • M.2 connector supports up to 2T M.2 NVME SSDs
  • note: M.2 extension board plus heat-sink is recommended for proper mounting on Rock Pi 4 "+"
• Display HDMI
  • HDMI 2.0 up to 4k@60
• Peripherals
  • MIPI DSI 2 lanes via FPC connector
  • HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode.
  • Audio 3.5mm jack with mic with improved mechanics
  • HD codec that supports up to 24-bit/96kHz audio.
  • Camera MIPI CSI
  • MIPI CSI 2 lanes via FPC connector, support up to 8MP camera
• USB 3. 0 OTG x 1
  • hardware switch for host/device switch, upper one
  • USB 3.0 HOST x1
  • dedicated USB3.0 channel, lower one
• USB 2.0 HOST x 2
  • Ethernet GbE
• Network
  • Wireless 802.11 ac wifi 2.4/5GHz
  • Bluetooth 5.0
• Network
  • GbE LAN with PoE support
  • additional HAT is required for powering via PoE
• IO 40-pin expansion header :
  • 1 x UART
  • 2 x SPI bus
  • 2 x I2C bus
  • 1 x PCM/I2S
  • 1 x SPDIF
  • 1 x PWM
  • 1 x ADC
  • 6 x GPIOs
  • 2 x 5V DC power in
  • 2 x 3.3V power pin
• Others
  • RTC battery connector for time backup
  • Power USB PD
  • Support USB Type-C PD 2.0, 9V/2A, 12V/2A
  • Power Supply Qualcomm® Quick Charge™
  • Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A
  • Size 85mm x 54mm

Delivery components:

• 1pc Radxa Rock Pi 4 B+ B4E32 4GB RAM 32GB eMMC

Remark:

• Required for operation: microSDHC card
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
