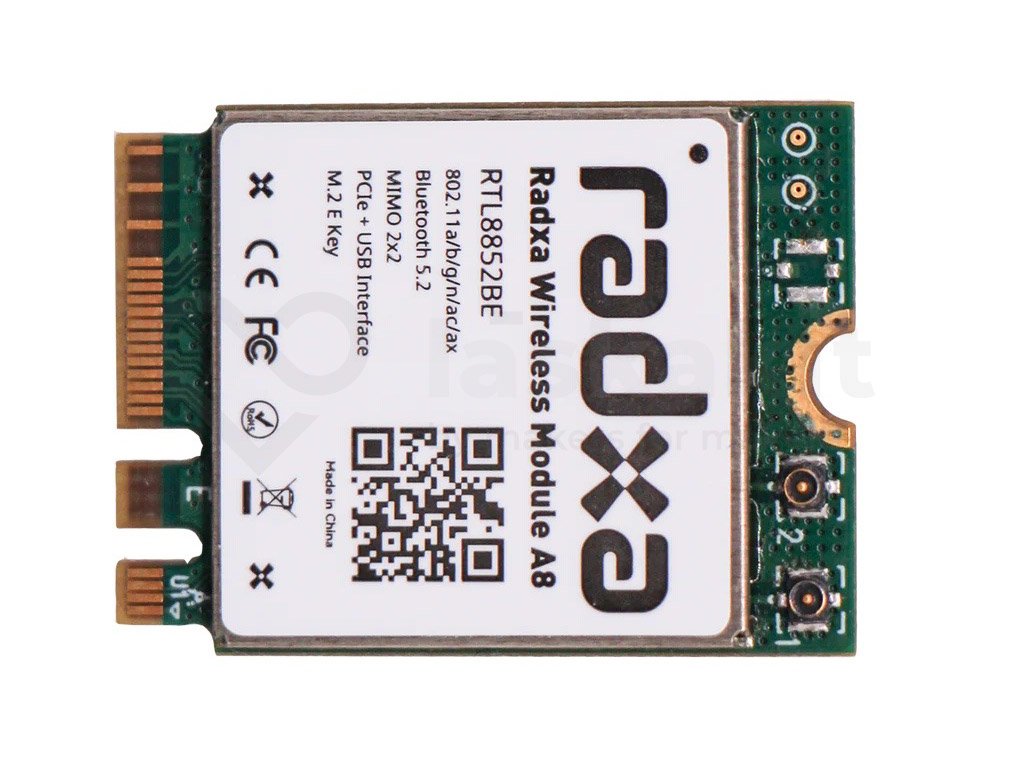

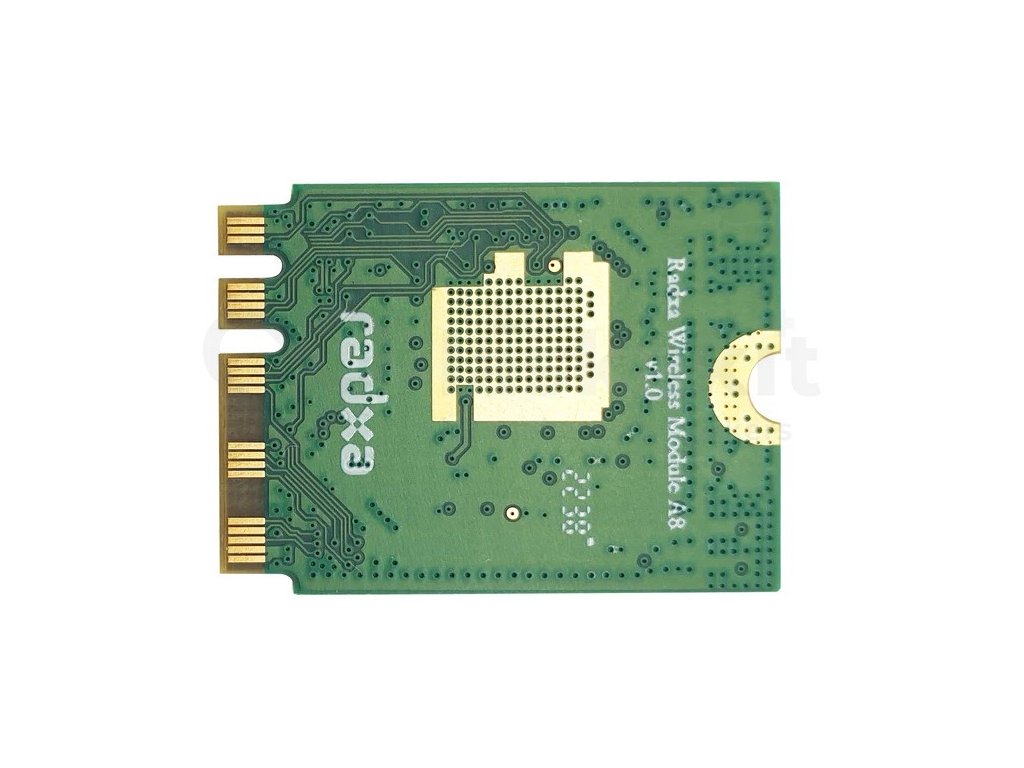

RADXA M.2 WiFi 6 and BT5.2 Wireless Module A8

Product detailed description

Wireless module Radxa A8 M.2 is a combination module with WiFi 6 and Bluetooth 5.2, based on Realtek RTL8852BE

Specifications (English):

• IEEE 802.11a/b/g/n/ac/ax compatible WLAN
• DBBT5.0 (BT 5.2 Compliant)
• Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band
• Maximum PHY data rate up to
  • 286.8 Mbps using 20MHz bandwidth
  • 573.5Mbps using 40MHz bandwidth
  • 1201Mbps using 80MHz bandwidth
• Backward compatible with 802.11a/b/g devices while operating at 802.11n data rates
• Backward compatible with 802.11a/n/ac devices while operating at 802.11ax data rates
• Compliance with Windows operating system host-implemented FIPS 140-2 security requirements
• Support 20/40/80MHz 5GHz
• Supports WLAN‑Bluetooth coexistence
• Supports low power Bluetooth
• Support Bluetooth 5 system (BT 5.2 Logo Compliant)
• Compatible with Bluetooth v2.1+EDR

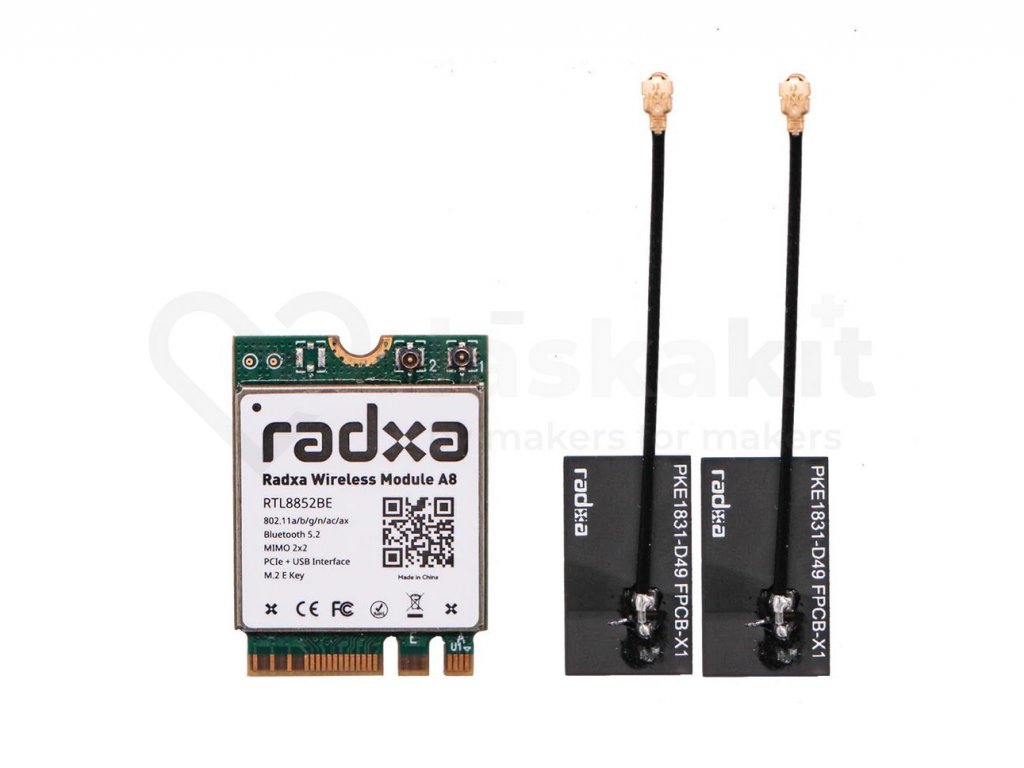

• 2x uFL connector

Included in delivery:

• 1pc RADXA M.2 WiFi 6 and BT5.2 Wireless Module A8

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
