    Home / Electronics & Accessories / PWM motor speed controller 10A, 80W

    PWM motor speed controller 10A, 80W

    Code: LA230015
    4 ratings
    pwm
    €4,70 €3,88 excl. VAT
    Skladem (59 pcs)
    Delivery to:
    16/12/2024

    PWM motor speed controller up to 10A and 80W with the possibility of changing the direction of rotation

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    LaskaKit laskakit sada imbus sroubu matic a podlozek m3 1290ks 2
    LaskaKit set of IMBUS screws, nuts and washers M3 1290 pcs
    Momentálně nedostupné
    €15,40 excl. VAT
    €18,63

    LaskaKit set of brass screws, nuts and spacers, perfect for fixing and organizing your projects.

    LA180065B
    LaskaKit threaded inserts, set M2 M2.5 M3 500 pcs, brass
    LaskaKit threaded inserts, set M2 M2.5 M3 500 pcs, brass
    Skladem (22 pcs)
    €15,40 excl. VAT
    €18,63

    LaskaKit threaded inserts, set M2 M2.5 M3 500 pcs, brass

    LA180015
    SunFounderRaspberryPiPicoRobotCarKit01 600x
    SunFounder robotic car Pico-4WD Car, kit
    Skladem (4 pcs)
    €92,07 excl. VAT
    €111,41

    The Pico-4wd robot car is based on the Raspberry Pi Pico development board, which is a small, fast and versatile board designed by Raspberry Pi. Motherboard je equipped with...

    LA180048
    Show all related products

    Product detailed description

    The controller can be used to control the speed of small motors. The wiring does not include feedback to maintain the set speed. The controller uses PWM (Pulse Width Modulation), which uses changes in the width of the current pulse to the motor. In pulse control, the current and voltage remain the same, but the active time when the current passes through the motor changes. A motor regulated in this way then has the same power over the entire speed range. The module has the possibility to change the direction of rotation of the connected motor by means of a switch.

    Specifications:

    • Supply voltage: 6-30V DC
    • Current: max 10A 80W
    • Control range: 10-95% by changing the pulse width
    • Fuse: NO
    • Dimensions: 60x55x28mm
    • Module weight: 66g

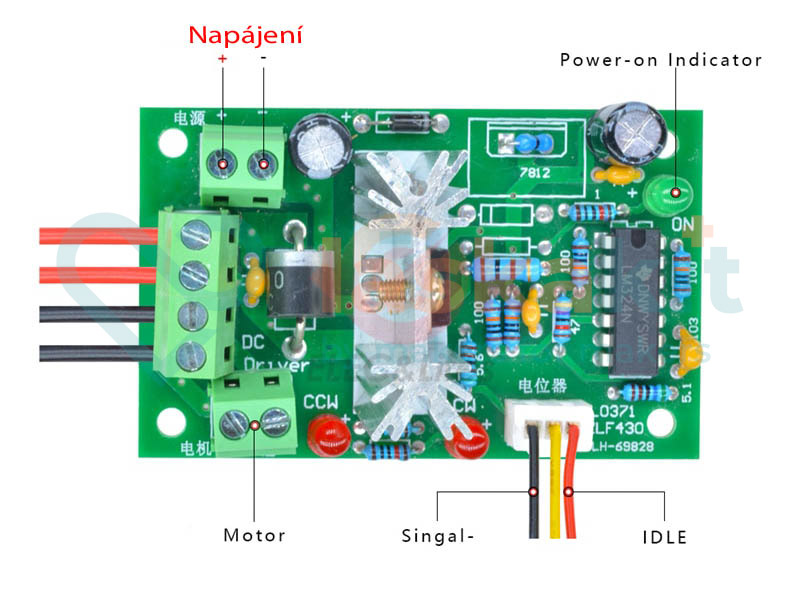

    PWM-10A-80W-conn

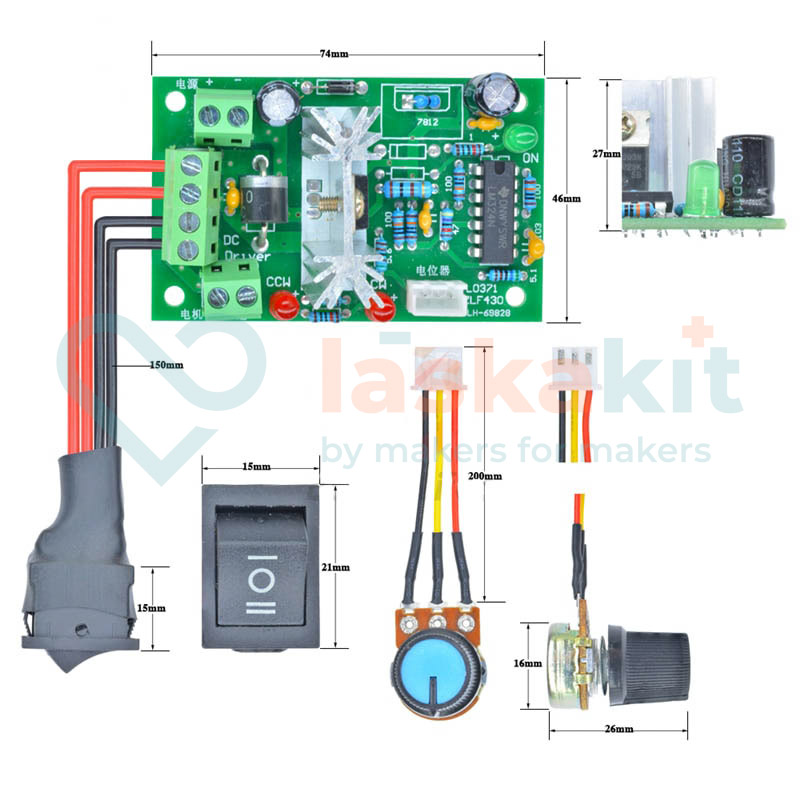

    PWM-10A-80W-dim

    Included in delivery:

    • 1pc PWM motor speed controller 10A, 80W

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Pre-Made Electronic Modules & Accessories
    Warranty: 2 years
    Weight: 0.066 kg
