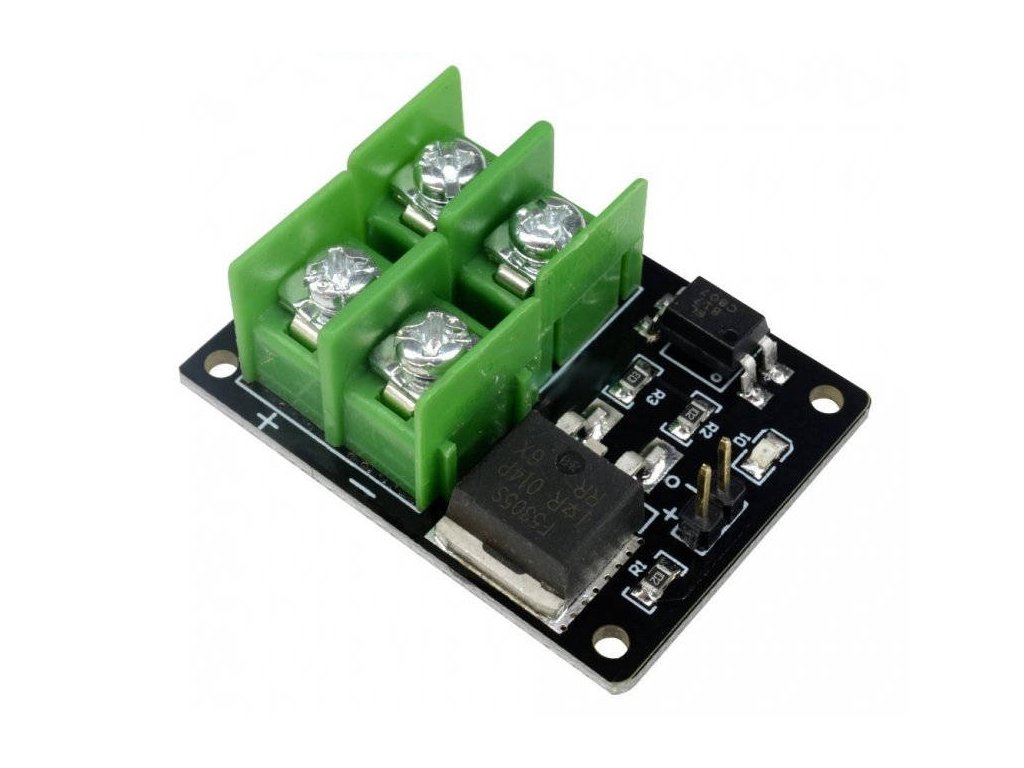

    PWM MOSFET module F5305S 35VDC 5A, switches plus

    Code: LA143038
    1 rating
    2159 pwm mosfet modul f5305s 35vdc 5a spina minus
    €2,55 €2,11 excl. VAT
    Skladem (56 pcs)
    Delivery to:
    16/12/2024

    A MOSFET based module that allows you to quickly switch larger loads even with a PWM signal.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    RuiDeng DPS3005 DIY laboratorní zdroj 0-32V, 0-5A
    RIDEN DPS3005 DIY laboratory power supply 0-32V, 0-5A
    Skladem (2 pcs)
    €48,97 excl. VAT
    €59,25

    DC voltage converter for creating DIY lab power supply with usb and bluetooth connection.

    LA122030
    2579 1 step down menic s lm2576hv
    Step-down converter with LM2576HV
    Skladem (8 pcs)
    €2,57 excl. VAT
    €3,11

    Step-down DC-DC converter with LM2576HV chip.

    LA122027
    menic 5v 1
    Step-down converter 5V 5A TPS40057
    Skladem (24 pcs)
    €3,22 excl. VAT
    €3,90

    Step-down converter from 9-35V to 5V, maximum current 5A with TPS40057 chip

    LA122032
    Show all related products

    Product detailed description

    PWM MOSFET module F5305S 35VDC 5A, switching plus

    The IRF5305S MOSFET module is based on the IRF5305S P-FET transistor , which can be used to control the speed of DC motors, the brightness of powerful LEDs, heaters, etc.

    Thanks to PWM you can control the power of devices such as LED lights, DC motors, etc. The control signal connection is via a pin rail suitable for Dupont connectors.

    Specifications:

    • Load voltage: 0-35V
    • Control voltage: 3.3-12V
    • Output current: 0-5A (Depends on heat dissipation conditions)
    • Dimensions: 30x40mm

    Included in delivery:

    • 1pc PWM MOSFET module F5305S 35VDC 5A, switching plus

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Relay Modules & MOSFET
    Warranty: 2 years
    Weight: 0.01 kg
    5,0 1 rating
    5
    1x
    4
    0x
    3
    0x
    2
    0x
    1
    0x
    Do not fill out this field:
    5
    FH Avatar of author | 13/11/2021
    Funguje jak ma,vse OK
    Do not fill out this field:
    P Avatar of author Použitie 19/11/2023 20:34
    Je tento komponent vhodný na ovládanie čerpadla? Chcem tam zapojiť plavákový spínač aby som zabránil behu čerpadla nasucho keď by klesla hladina. Teda predpoklad je, že to bude bežať prakticky stále. Len teda čerpadlo má tabuľkovo odber 2A pri 12V, čo by ten plavák asi dlho neprežil (aj keď čerpadlu chcem dávať len okolo 6V)
    Reply
    MF Avatar of author Použitie 20/11/2023 14:24
    Dobrý den, to by s tímto modulem neměl být problém. V každém případě je nutné vždy otaestovat v reálných podmínkách.
    J Avatar of author Max. napětí zátěže 22/11/2019 05:11
    Dobry den, pouzity optoclen EL817 ma Vceo pouze 35V. Coz omezuze max. napeti zateze na tuto hodnotu. Lze vyresit vymenou za PC817B (K10101B), ktery ma Vceo 60V. (stejne pouzdro, v GME za 5,-)
