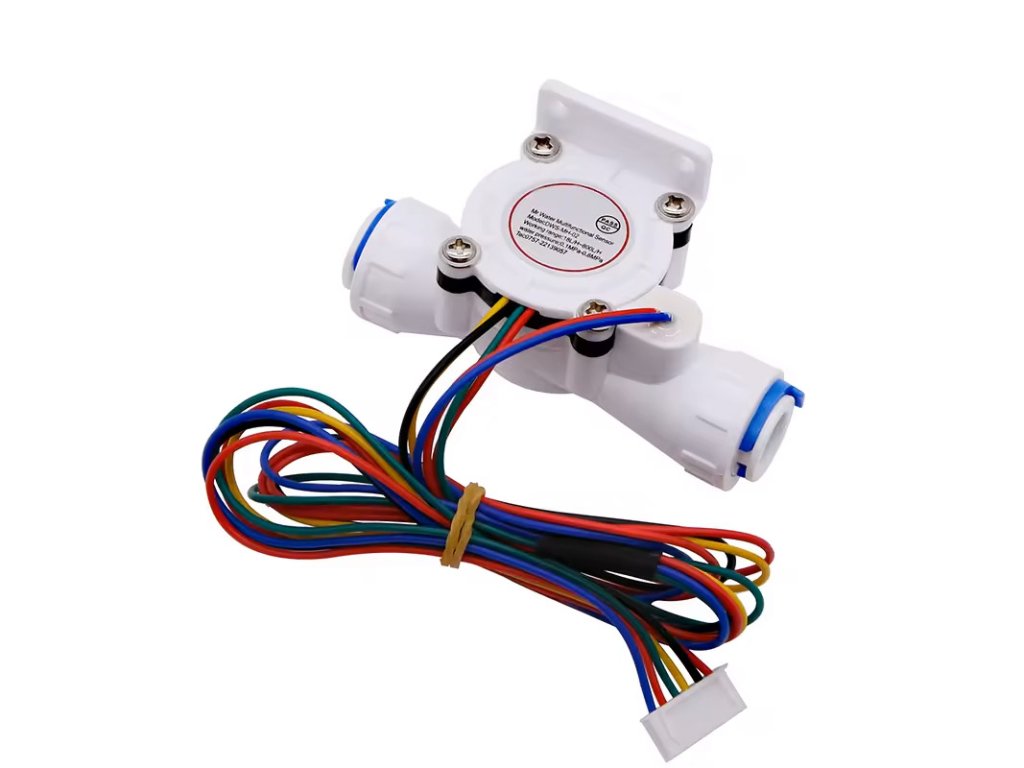

Flowmeter with thermistor DWS-MH-02 3/8" 18-800L/h

Product detailed description

Flowmeter DWS-MH-02 with thermistor is a precision sensor designed to measure the flow rate of water and other liquids in the range of 18 to 800 litres per hour. Thanks to the integrated thermistor allows not only flow monitoring, but also monitoring the temperature of the liquidmaking it ideal for cooling systems, solar water heating, industrial applications or home automation.

Thanks to its compact design and wide flow range is DWS-MH-02 is an excellent choice for all applications where accurate flow and temperature measurement of liquid is required. It works perfectly with Arduino, Raspberry Pi and other microcontrollers , allowing easy integration into smart systems.

Specifications:

• Connection: for PE hose 3/8"
• Measured flow rate: 0.3 - 10 litres/m
• Max. working pressure: 0.8MPa
• Power supply: 3.5-24VDC
• Max. consumption: 15mA (5V power supply)
• Output High: ≥ 4.5V (5V supply), ≥23.5V (24V supply)
• Output Low: < 0.5v (5V supply)
• Output Duty Ratio: 50% ± 10%
• Max. working temperature: up to 80°C
• Operating humidity: 35%~90% RH (no frost)
• K factor / frequency: 15*Q, Q=L/min
• Pulse characteristics: 1L = 900 pulses
• Measurement accuracy: ±2%
• Cable length: ~50cm
• Pinout:
  • Red: +; 5V
  • Yellow: NPN signal output
  • Black: GND

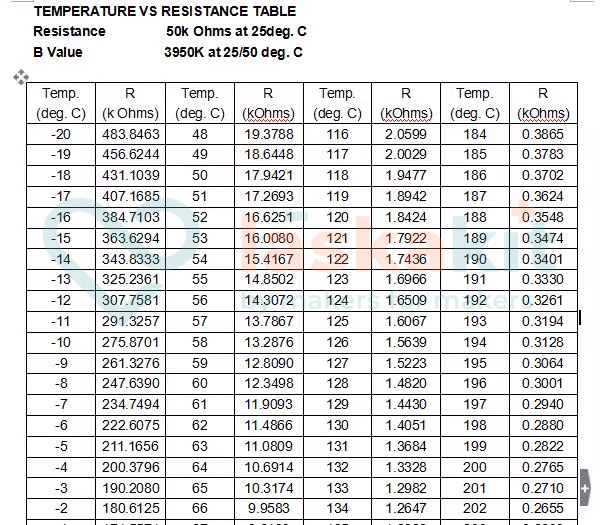

  • Green: NTC 3950 50K
  • Blue and Red: Water quality sensor TDS (Total Dissolved Solids).

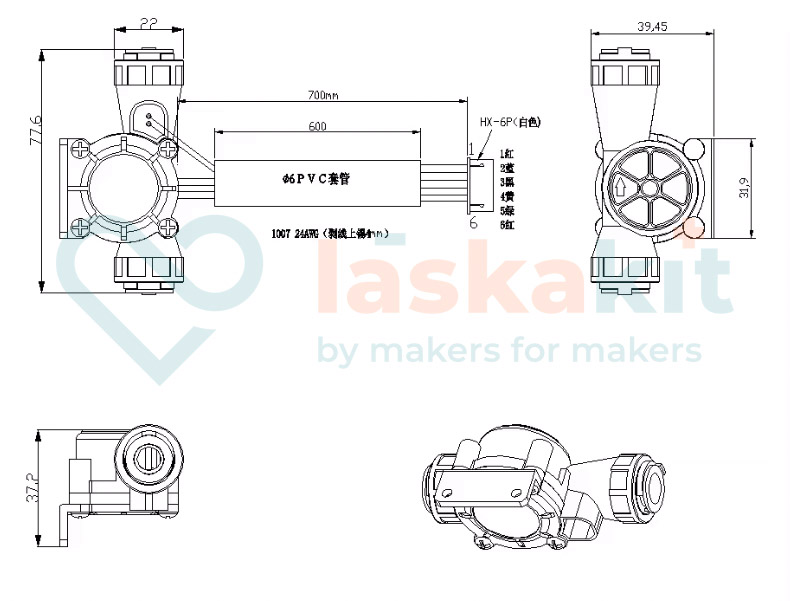

• Dimensions: 77.6x39.45x37.2mm
• Weight: 56g

Included in delivery:

• 1pc Flow meter with thermistor DWS-MH-02 3/8" 18-800L/h

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Magnetic materials in the vicinity may affect the measurement
