Description
Product detailed description

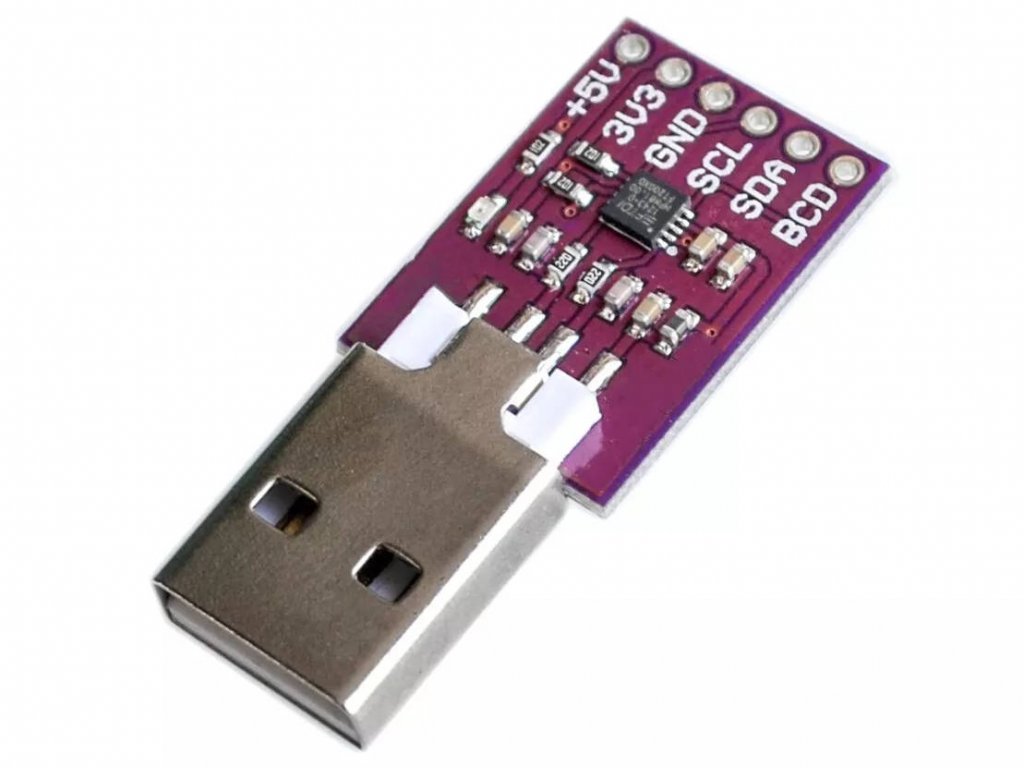

Suitable as a universal development converter for PC applications that need to communicate with devices with I2C communication interface.
Specifications:
- Power supply: DC 5V
- USB version: 2.0 full speed
- I 2 C modes: slave only
- Integrated stabilizer: 3.3V / 50mA
- Logic voltage: 3.3V
- Transmission speed: up to 3.4MHz
- Operating temperature range: -40°C-85°C
- Drivers: FTDI royalty-free virtual COM port (VCP), or direct (D2XX)
Included in delivery:

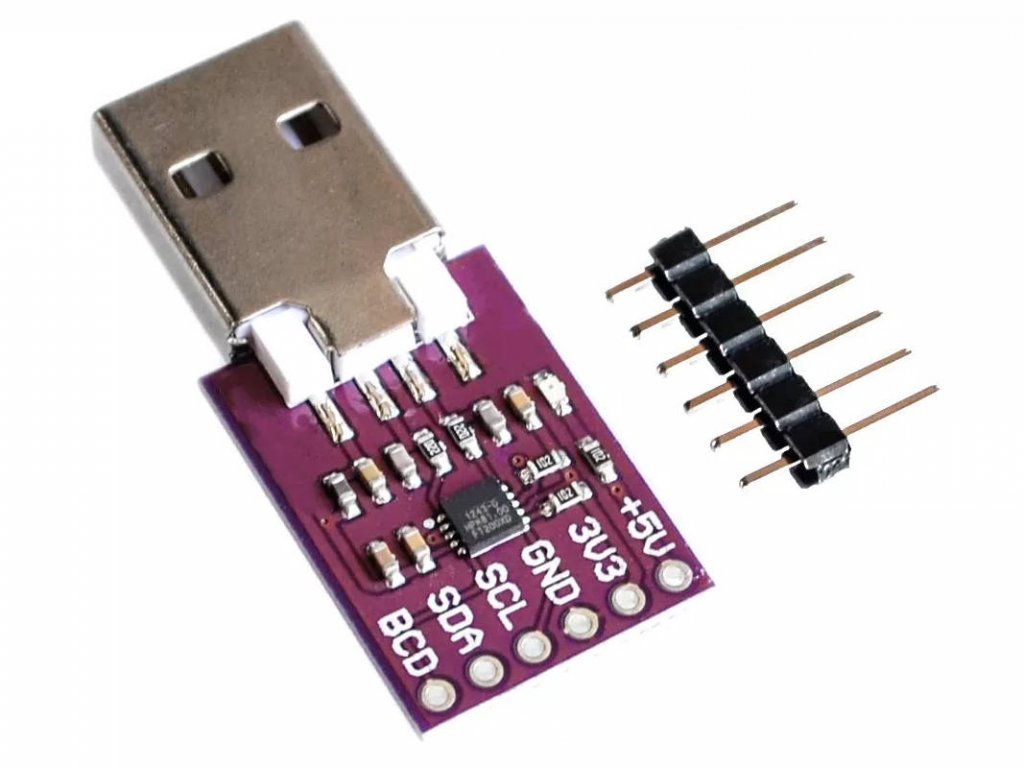

- 1pc USB to I2C converter, FT200XD
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Converters & Programmers |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.004 kg |
Ano
-
Datasheet FT200XD (1.2 MB)
-
D2XX a VCP ovladače v2.12.28 - 30.08.2017 (1.6 MB)
-
Stránky výrobce
Related files (3)
Discussion (1)
RJ
I2C slave only!
Richard Jelinek
I2C slave only!
Richard Jelinek
Možná by stálo za zmínku, že toto zařízení může fungovat pouze jako I2C slave, nikoliv master. :-/
Reply
Reply
MF
I2C slave only!
Martin Frajdl
I2C slave only!
Martin Frajdl
Dobrý den, tak tuto informaci jsme v datasheetu výrobce opravdu přehlédli. Omlouváme se a údaj jsme do popisu doplnili.
