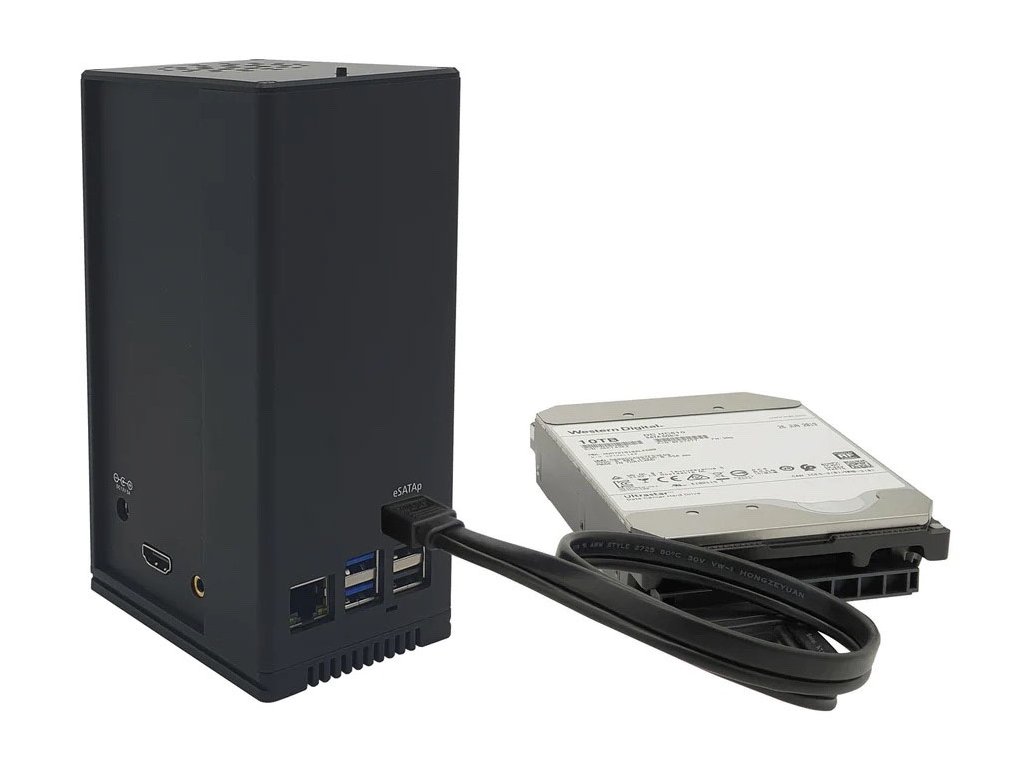

PENTA SATA KIT for Radxa Rock Pi 4 Model A/B, A/B+ and Rock3A

Product detailed description

Rock Pi 4 makes it easy to build your own PCIe-based NAS / Media server

Specifications:

• Material: Aluminum casting
• Mount up to 4x 2.5" HDDs or SSDs (maximum height 9.5 mm) + 1x external HDD or SSD
• you have a connector for external SSD/HDD
• Software RAID 0/1/5
• LED: HDD/SSD online/activity/error status
• Uses PCIe gen2 4 lanes interface on Rock Pi 4
• 4x 2.5" sata drives and 1x esatap 2.5 or 3.5" HDD/SSD
• HDD suspend mode supported
• UASP support
• Internal capacity up to 32 TB (e.g. 4x 8 TB SSDs)
• PWM controlled fan for heat dissipation
• OLED display for IP address/storage information
• Works only with Rock Pi 4 Model A/B, A/B+ and Rock 3A
• Includes large cooler for Rock Pi 4 (30% larger)
• Dimensions 94x70x175 mm

Build:

Delivery components:

• Board PENTA SATA HAT
• Top plate including OLED status display and HAT active cooling
• Cable with connector
• EcoPI Penta Sata box (aluminium)
• High performance flat data cable and connector
• Cooler for Rock Pi 4
• Power adapter 12V/5A

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Rock Pi board and HDD not included
