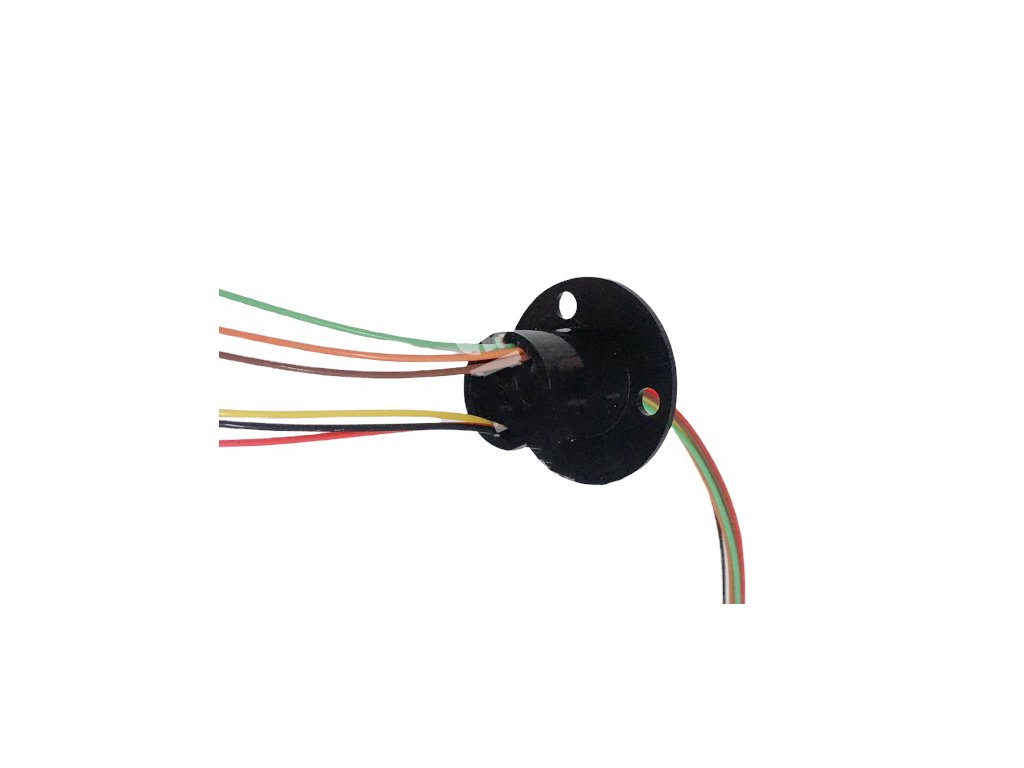

Rotary contact grommet, 6 wires

Product detailed description

This grommet can be used wherever there is a need for a swivel connection. E.g. rotary joints of robotic devices. The grommet allows the transmission of signals up to a rotation speed of 200 rpm.

Specifications:

• Working angle: 360°
• Maximum working speed: 200 rpm
• Number of wires: 6
• Wire cross-section: 0.14mm ² (26AWG)
• Wire length: approx. 20cm
• Body diameter: 12.5mm
• Material: plastic

Included in delivery:

• 1pc Swivel contact grommet, 6 wires

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
