    OPEN-SMART 2.4" LCD display 128x64 ST7565

    Code: LA141061
    Not rated
    Brand: OPEN-SMART
    3899 open smart 2 4 lcd displej 128x64 st7565
    €7,50 €6,20 excl. VAT
    In stock (4 pcs)
    Delivery to:
    14/02/2025

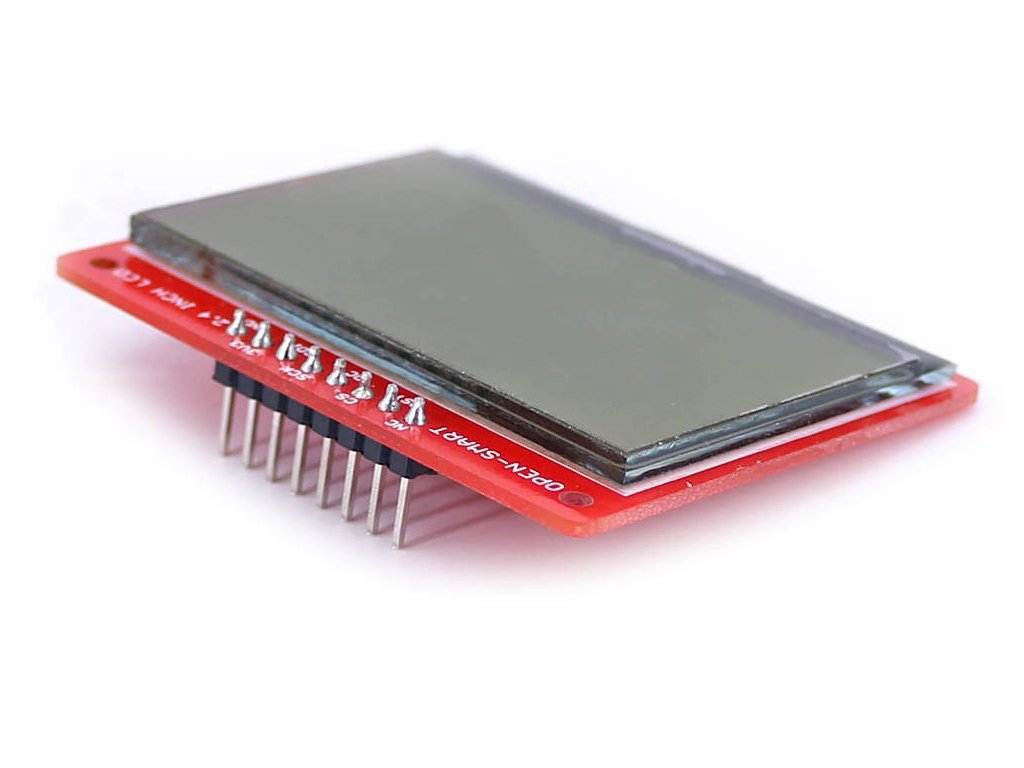

    2.4" LCD display with 128x64 resolution and ST7565 controller. No backlight.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    foto 3
    Ai-Thinker ESP32-S 2.4GHz WiFi+Bluetooth Module
    Vyřazeno
    €2,40 excl. VAT
    €2,90

    Ai-Thinker ESP32-S module with an ESP32 chip that allows it to communicate wirelessly via WiFi and Bluetooth.

    LA100065

    Product detailed description

    It is a monochrome LCD display of 2.4" size with a resolution of 128x64 dots, without backlight. It uses the ST7565 controller with SPI interface.

    Adafruit ST7565-LCD library can be used for Arduino, with contrast setting glcd.begin(0x07); The contrast can be adjusted in the range of approx. 0x00-0x0A (0-10).

    For the display to work properly, a modification in the ST7565.cpp library file is required:

    Change pagemap setting to: const uint8_t pagemap[] = { 7, 6, 5, 4, 3, 2, 1, 0 };
    Comment out the line: #define enablePartialUpdate

    Specifications:

    • Resolution: 128x64
    • Power supply: 3.3V
    • Current consumption: up to 10mA
    • Logic level 3.3V
    • Interface: 4w SPI
    • Module dimensions: 85x51.2mm
    • Driver IC: ST7565

    Delivery components:

    • 1pc OPEN-SMART 2.4" LCD display 128x64 ST7565

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: LCD displays
    Warranty: 2 years
    Weight: 0.042 kg
