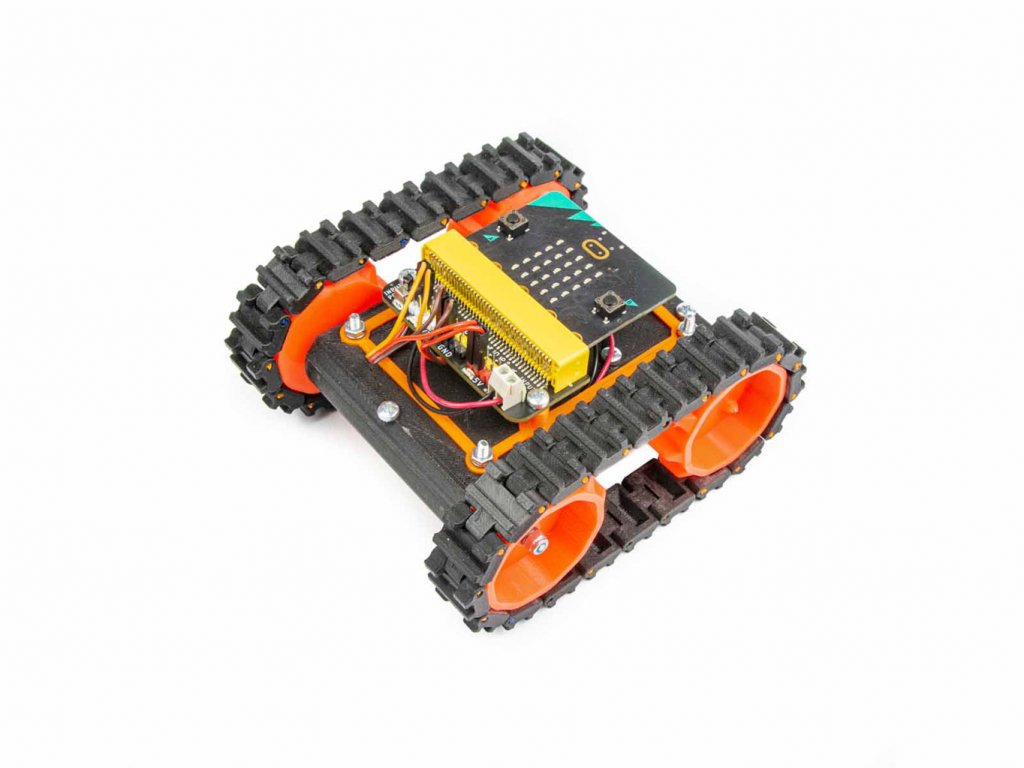

OMG Robotics Robotic tank
Code: LA180055N LA180055J Choose variantRelated products
Product detailed description
Would you like to build your own robotic vehicle from a 3D printer that is controlled by a micro:bit? So we have OMG Robotics robotic tank for micro:bitfor you. It is a 3D printer kit designed by the Czech company OMG Robotics for teaching basic and more complex programming in the makecodeenvironment. During the construction you will test your fine motor skills and work with simple tools.
The kit comes with complete instructions in Czech, so you won't have any problems with assembly. The robotic programming vehicle is suitable for ages eight and up, but even smaller children can build the kit with the help of their parents. You can buy the kit OMG Robotics in two variants, namely with controller or without controller.

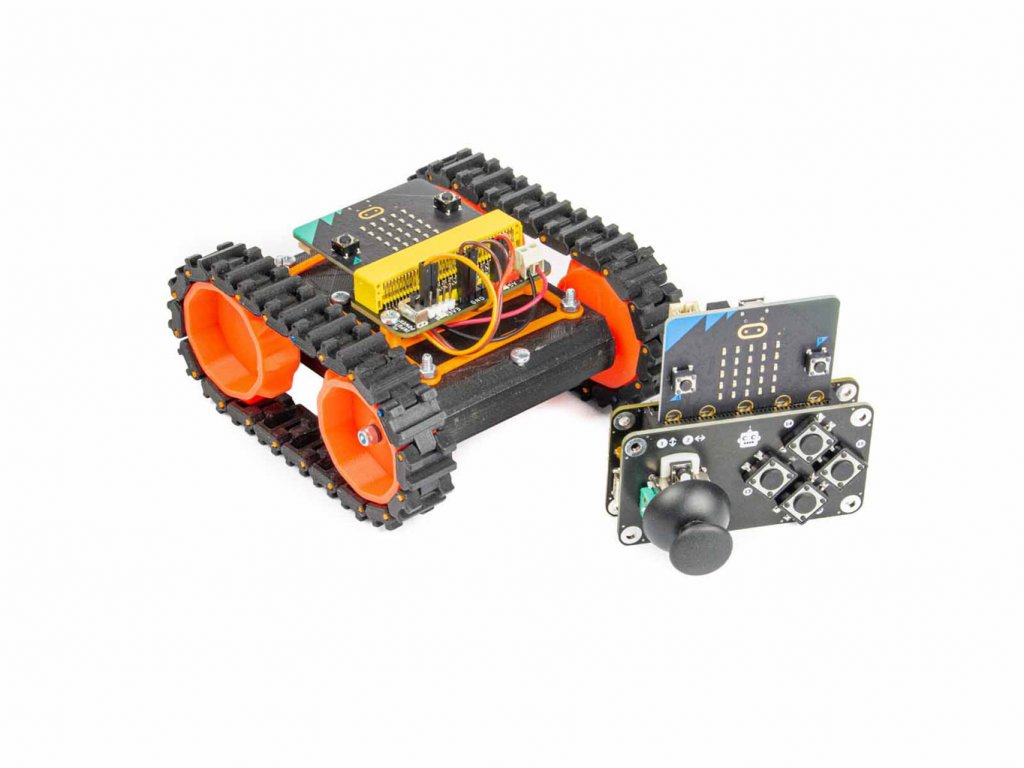

Robotic tank variant with controller:
The controller version contains OMG Robotics electronics for the tank and a controller into which you insert the micro:bit and you can start playing or learning to program. The driver version includes everything you need to complete the tank and controllers including micro:bits. With these components, you don't have to stick with just the tank, but can use the components for other projects such as the Simple Robotic Vehicle.
Robotic tank variant without controller:
The driverless version contains all the necessary components to build and operate the robotic tank, which you can program using the micro:bit or control via the mobile app.
Instructions for building and reviving the rover can be found in the projects section under the robotic tank project. In the project you can also find how to program this tank in the makecode environment, or you can download ready-made programs for controlling it, both via the controller and via a mobile device or tablet.
Specifications:
- Manufacturer: OMG Robotics
- Variability: micro:bit V1/V2
Package contents version:
- Mechanical parts:
- M3 x 20mm – 2 pcs
- M3 x 10mm – 16 pcs
- M3 washer – 20 pcs
- M3 nut – 6 pcs
- M3 self-locking nut 2 pcs
- Electronic components:
- Micro:bit V2 - 2pcs (version with driver)
- Micro:bit V2 - 1pc (version without driver)
- Continuous servo – 2 pcs
- Battery holder 4 x AAA - 1pc
- Extension OMG Robotics MB3 – 1 pc
- Expansion OMG Robotics MB2 – 1pc (version with driver)
- Joystick OMG Robotics with battery - 1pc (version with controller)
- 3D printed parts:
- Wheels – 4 pcs
- Parts of the belt - 40 pcs
- Filament 1.75mm – 1m
- Chassis body – 2 pcs
- Battery cover - 1 pc
- MB3 expansion board holder - 1pc
Delivery components:
- 1pc OMG Robotics Robotic tank
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
Category: | LaskaKit DIY & Arduino Starter Kits |
---|---|
Warranty: | 2 years |
