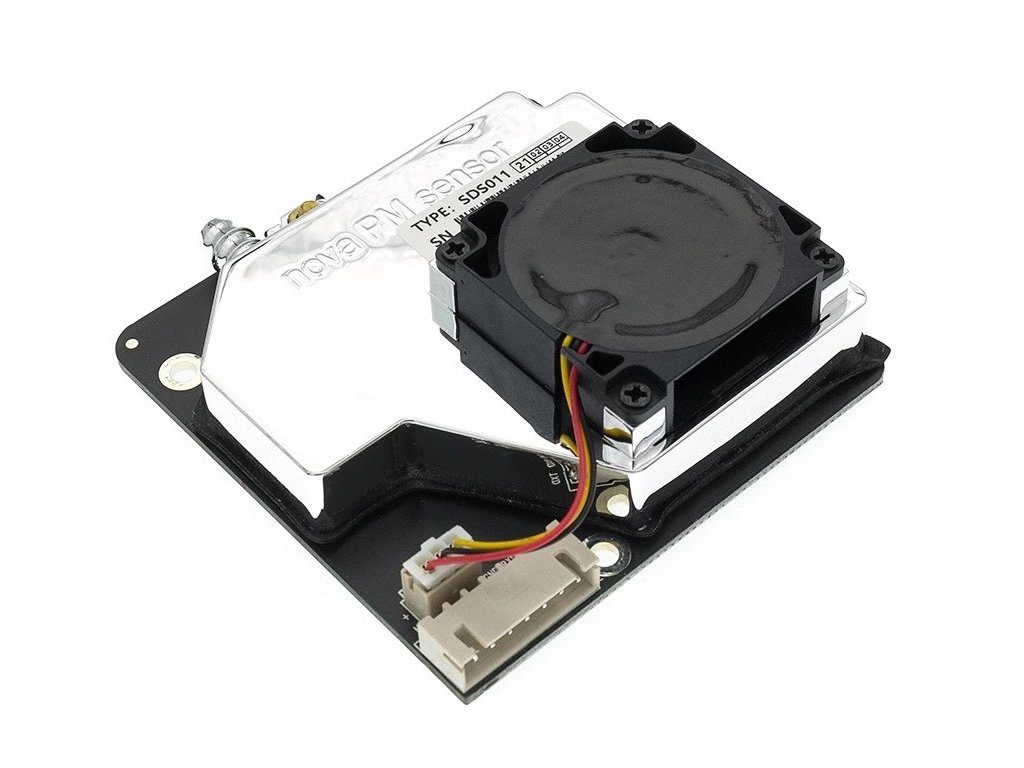

Nova PM SDS011 Optical air quality sensor PM2.5 PM10

Product detailed description

Laser dust sensor for monitoring air cleanliness. It can detect particles with a diameter greater than 03μm, designed to measure PM2.5 and PM10. It has a fan that sucks in air. The system is powered by voltage from 4.7V to 5.3V, communicates via UART or PWM signal with Arduino or Raspberry Pi.

To connect to our board LaskaKit AirBoard- 8266 you can use connecting cable

Specifications:

• Manufacturer: Nova
• Power: 4.7V to 5.3V
• Current consumption: 70mA
• Sensitivity: 0.3μm
• Measuring range: from 0µg/m³ to 999.9µg/m³
• Communication: UART / PWM
• Connector: JST-XH-7
• Operating temperature: from -10°C to 50°C
• Atmospheric pressure: from 86kPa to 110kPa
• Weight: 60g
• Dimensions: 71x70x23mm

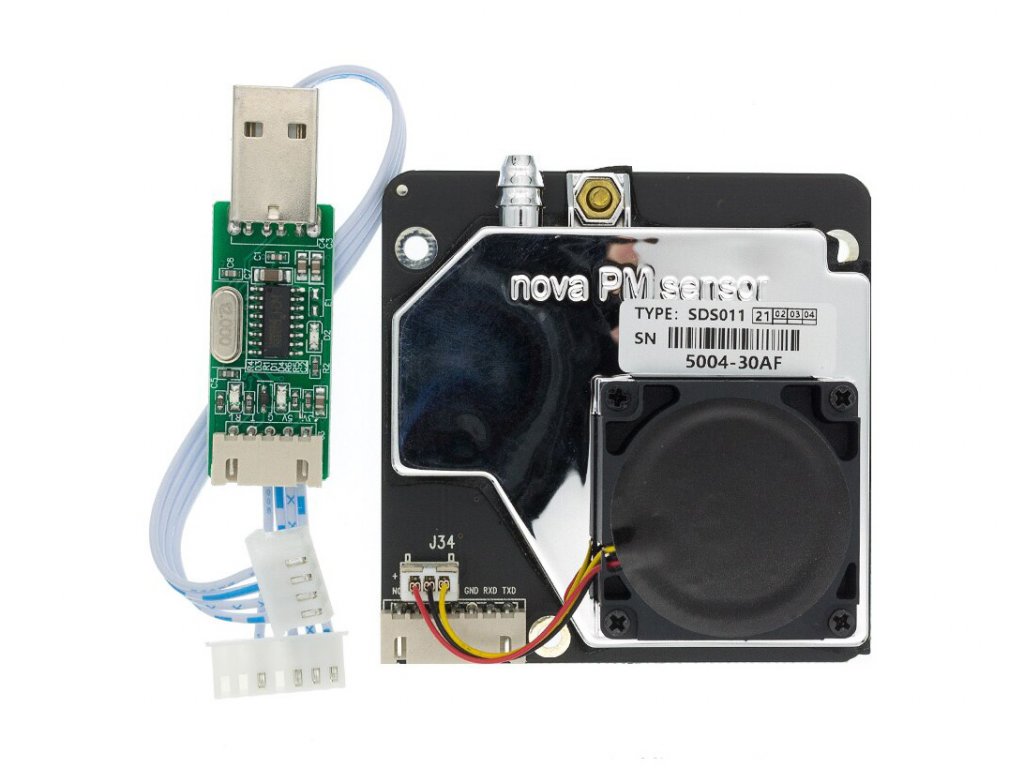

Included in delivery:

• 1pc Nova PM SDS011 Optical air quality sensor PM2.5 PM10
• 1 pc USB - UART converter
• 1pc Cable

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
