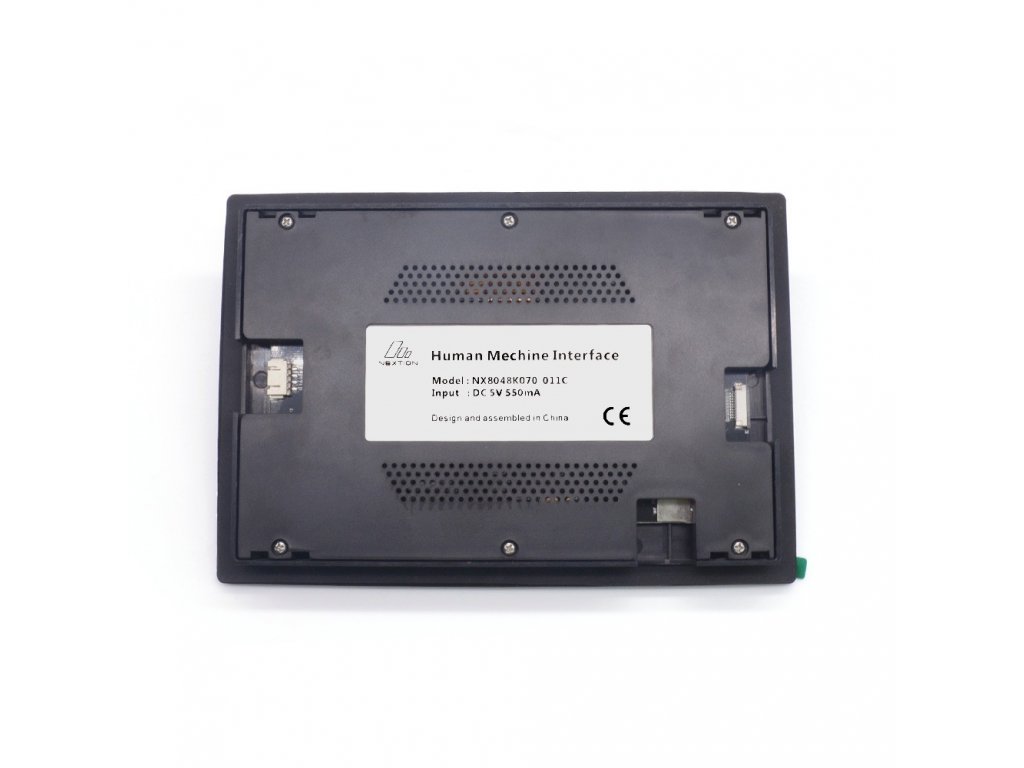

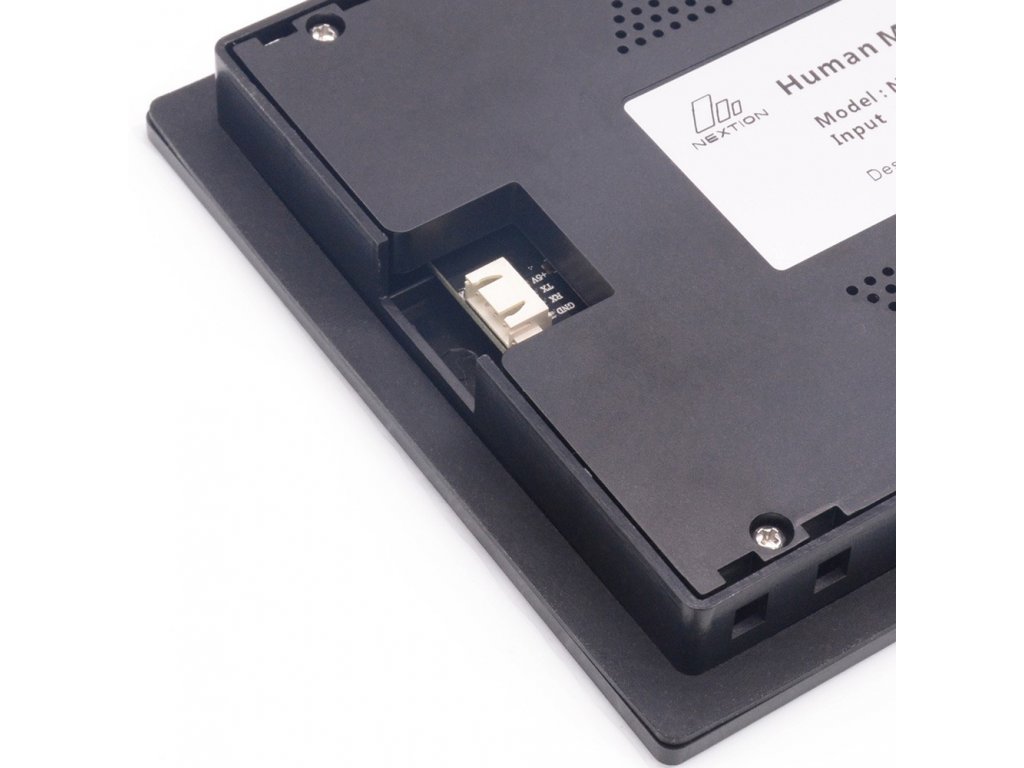

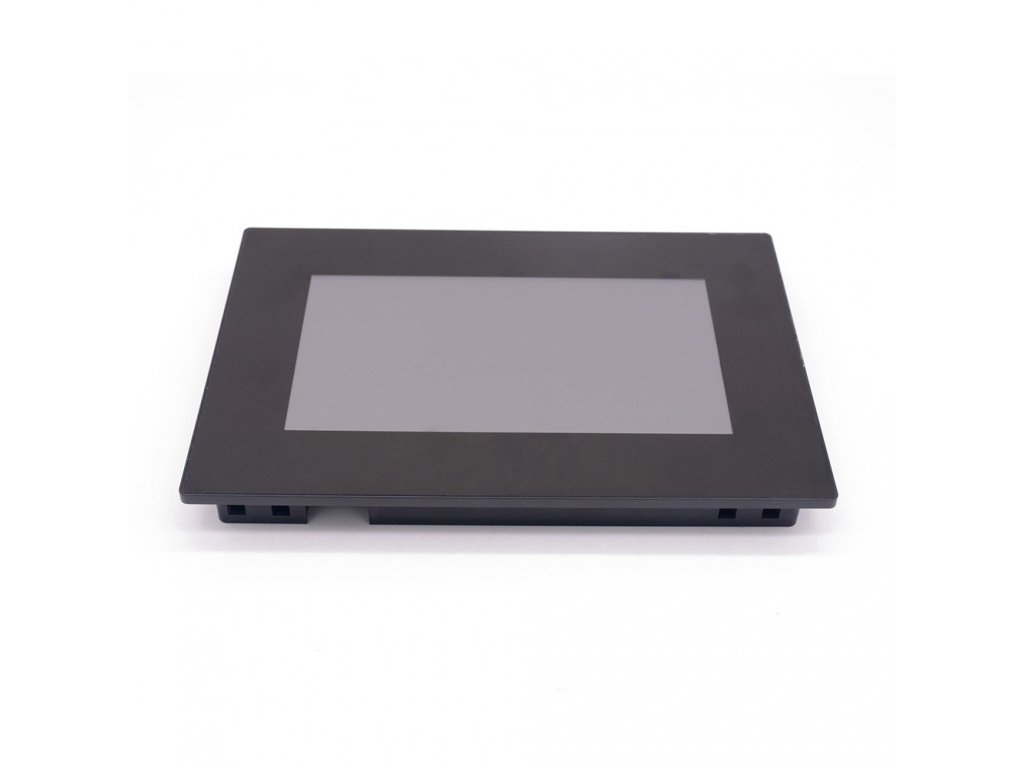

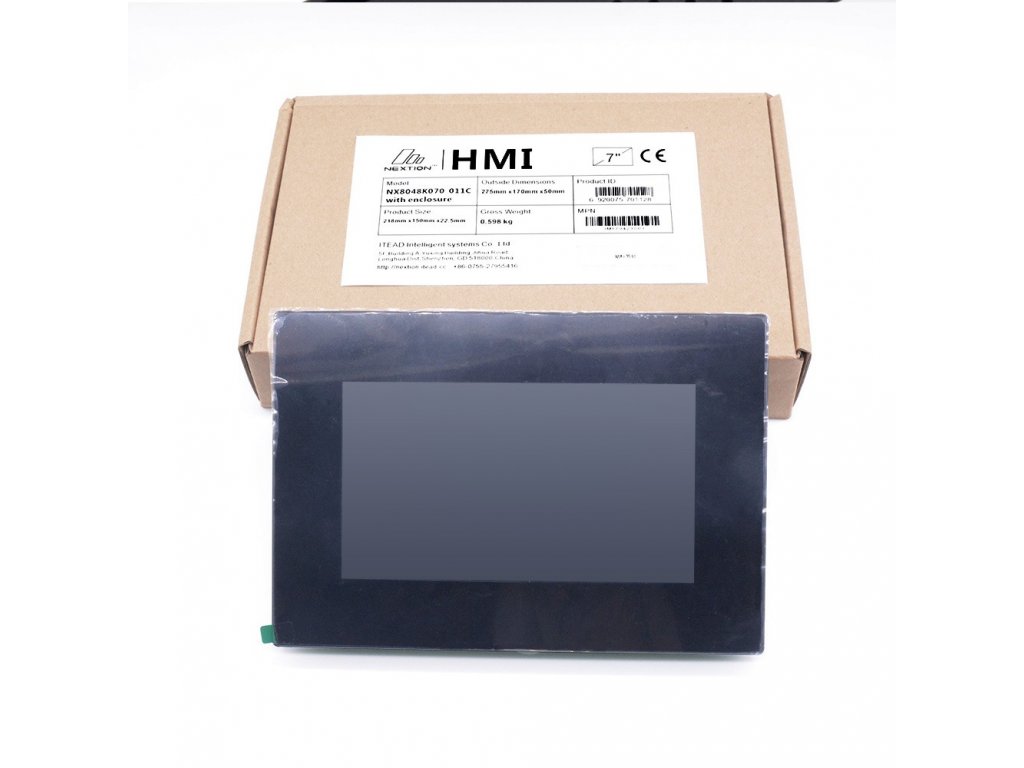

Nextion orig. Enhanced NX8048K070_011R 7.0" 800 x 480 TFT resistive display

Product detailed description

Nextion orig. Enhanced NX8048K070_011R 7.0" 800 x 480 TFT display resistive

Excellent LCD panel, with touch control and SD card slot. Highly suitable for embedded systems that require a high quality colour display or video with interactive control. 4 UART pins and power supply. 32M Flash memory for applications and data.

Specifications:

• Display size: 7.0"
• Processor: ARM 7 108MHz
• FLASH memory: 32MB
• RAM: 8192
• Touch panel: RTP (resistive)
• Resolution: 800x480 pixels
• Screen: 65 thousand colors
• MicroSD slot: YES (max. 32GB, FAT32)
• Working voltage: 5V (Use an adapter!)
• Working current: 550mA
• Communication: UART

Included in delivery:

• 1 pc Nextion orig. Enhanced NX8048K070_011R 7.0" 800 x 480 TFT display resistive
• 1 pc Connecting cable
• 1pc USB adapter

Sources:

• Nextion Editor
• Library for arduino
• NX8048K070 Datasheet
• Nextion Display with Arduino – Getting Started

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Attention! You will need a microSD card to get it working.
