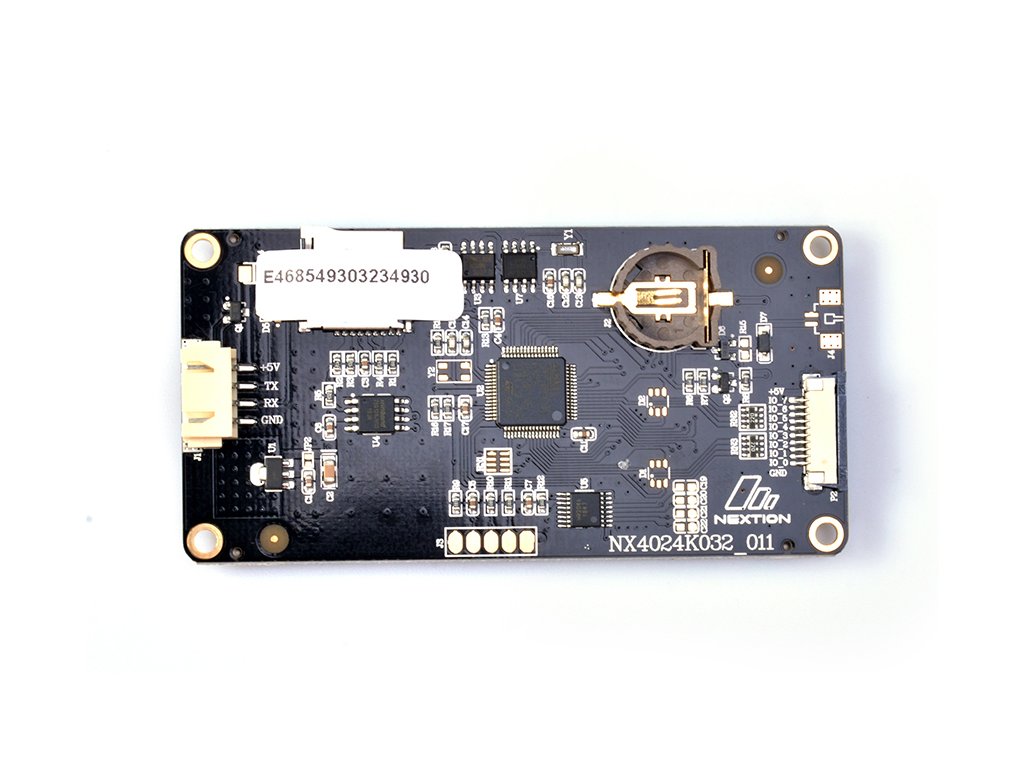

Nextion orig. Enhanced NX4024K032 3.2" 400 x 240 TFT display

Product detailed description

Excellent LCD panel, with touch control and SD card slot. Highly suitable for embedded systems that require a high quality colour display or video with interactive control. 4 UART pins and power supply. 16M Flash memory for applications and data.

Specifications:

• Display Size: 3.2″
• Resolution: 400*240
• Touch Pane: RTP
• MCU: 48 MHz
• Flash: 16MB
• SRAM: 3584 Byte
• EEPROM: 1024 Byte
• GPIOs: 8, IO0-IO7 support input, output and component binding event, IO4-IO7 support PWM
• RTC: Yes (CR1220)
• Input Power: DC 5V 500mA
• USART Port: XH2.54 4P
• Working Temperature: -20 ~ 70 °C
• Nextion Editor Components: Text, Scrolling Text, Number, Xfloat, Button, Progress Bar, Picture,
• Crop, Hotspot, TouchCap, Gauge, Waveform, Slider, Timer, Variable, Dual-state Button, Checkbox, Radio, QRcode
• Character Encoding: ascii, utf-8, iso-8859-1~15, gb2312, ks_c_5601-1987, big5, windows-874/1255/1256/1257/1258, koi8-r, shift-jis
• Anti-aliasing font: Yes

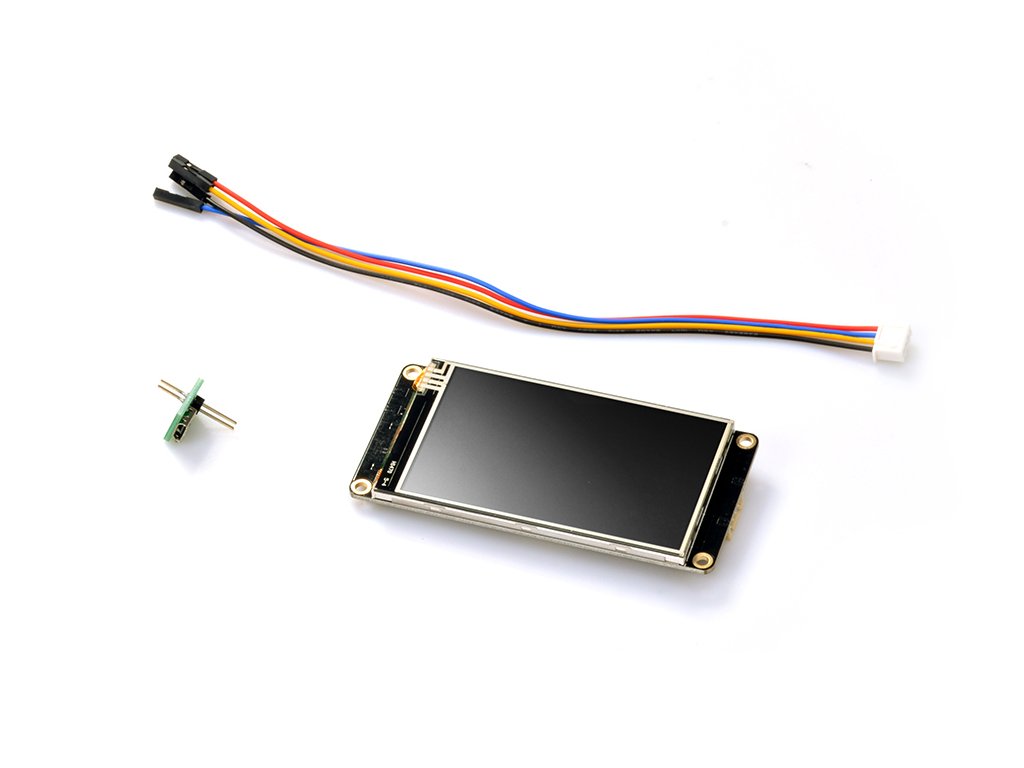

Included in delivery:

• 1 pc Nextion orig. Enhanced NX4024K032 3.2" 400 x 240 TFT display
• 1 pc Connecting cable
• 1pc USB adapter

Sources:

• itead.cc
• Nextion Editor
• Library for arduino
• NX4024K032 Datasheet
• Nextion Display with Arduino – Getting Started

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
• Attention! You will need a microSD card to get it working.
