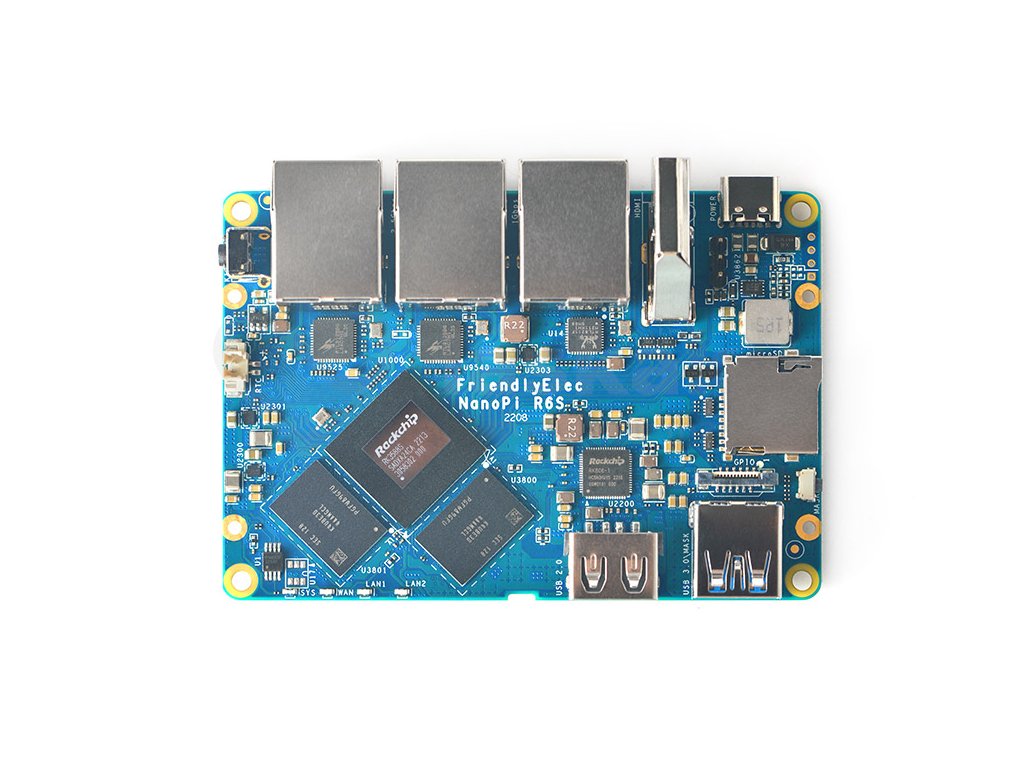

NanoPi R6S RK3588S 8GB RAM 32GB eMMC Dual 2.5G + 1G Ethernet Port with box
Code: LA100109
Related products
Product detailed description
NanoPi R6S (as “R6S*) is an open source and high-performance platform developed and designed by FriendlyElec for edge computing. It has two 2.5G and Gbps Ethernet ports. It is integrated with a Rockchip RK3588S CPU and 32GB eMMC flash.
It supports multiple operating systems including FriendlyWrt, Android, Debian, Ubuntu and more. In addition, it supports GPU and VPU acceleration. The R6S has a wealth of hardware resources, all in a compact 90×62mm size. It has one HDMI port capable of decoding 8K@60fps H.265/VP9, 8K@30fps H.264 and more. The R6S has two USB Type-C ports and supports PD, making it a good power source for an external hard drive.
Specifications (English):
| CPU | Model: Rockchip RK3588S Number of Cores: Quad-core ARM Cortex-A76 & Quad-core Cortex-A55 CPU Frequency: 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz |
| GPU | Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 |
| VPU | 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder |
| NPU | 6TOPs, supports INT4/INT8/INT16/FP16 |
| Memory | RAM: 64-bit 8GB LPDDR4X at 2133MHz |
| Storage | MicroSD Slot: MicroSD x1, support up to SDR104 mode Flash: 32GB eMMC, at HS400 mode |
| Connectivity | Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip |
| Video Output | HDMI: compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation support up to 7680x4320@60Hz Support RGB/YUV(up to 10bit) format |
| USB | USB 3.0 Host x1: USB Type A USB 2.0 Host x1: USB Type A USB-C x1: Power input(5V/9V/12V/20V), support PD |
| Pin-header | GPIO: 12-pin 0.5mm FPC connector with up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 8x GPIOs Debug: Debug UART x1, 3 Pin 2.54mm header, 3.3V level, 1500000bps |
| LED | SYS LED(Red) x1 WAN LED (Green) x1 LAN1 LED(Green) x1 LAN2 LED(Green) x1 |
| Button | MASK Button x1 for eMMC update User Button x1 |
| Others | RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low-power RTC IC HYM8563TS IR receiver x1 and the carrier frequency is 38Khz Fan Connector(ZH1.5-2A) x1, 5V Working Temperature: 0℃ to 70℃ |
| Power | DC USB-C, support PD, 5V/9V/12V/20V input |
Delivery components:
- 1pc NanoPi R6S RK3588S 8GB RAM 32GB eMMC Dual 2.5G + 1G Ethernet Port with box
Remark:
- Required for operation: microSDHC card
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Mini PC Development Boards |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.5 kg |
| Type: | Mini PC |
| Frequency: | 2.4GHz |
| Flash memory: | 32GB |
| SRAM memory: | 8GB |
| EEPROM memory: | Ne |
| Connector with battery charger: | No |
| Microcontroller: | ARMv8-A, RK3588 |
| Converter: | No |
| Bluetooth: | Yes |
| WiFi: | Yes |
