Charger + boost LX-LBC3.1 for USB Powerbank IP5310 5V 3.1A, USB-C
Code: LA123133Related products

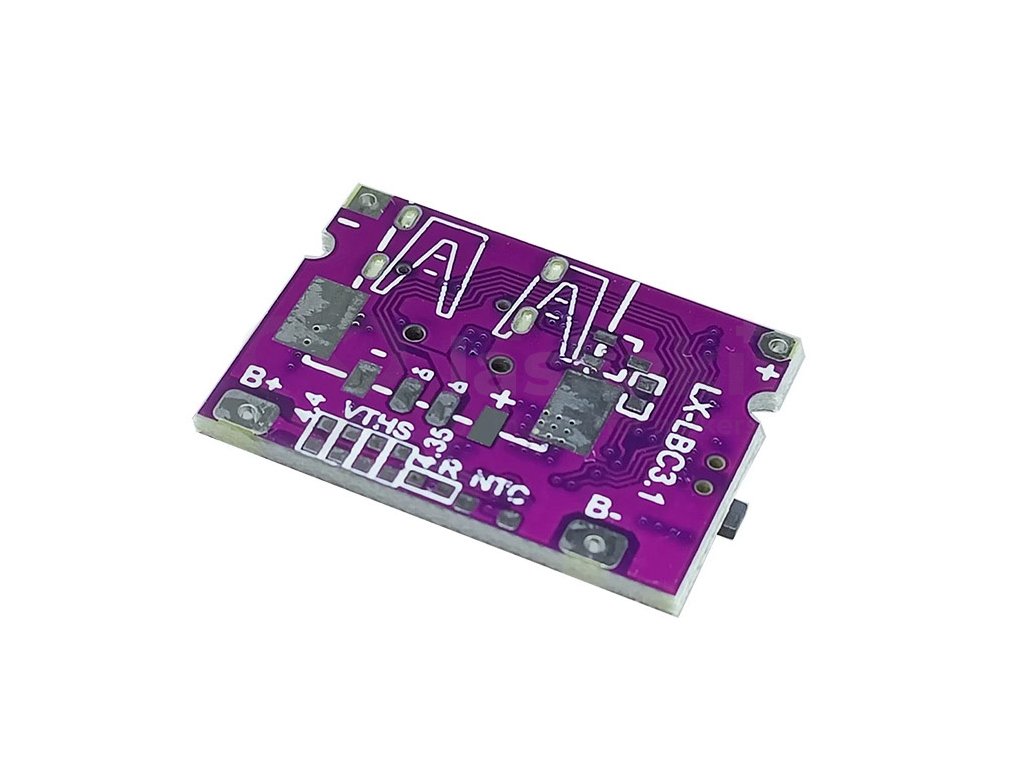

Product detailed description
Boost converter and Li-Ion/Li-Po battery charger in one. The module has an integrated LED charge indicator. If the current drawn is less than 50mA, the output is switched off. The module allows selection of charging voltage 4.2V, 4.35V, or 4.4V.
1. Before connecting the battery, connect the charger to your mobile phone using the USB-C data cable and check that the four lights light up gradually. This will test that the module is functional.
2. Check the module's charging voltage setting to ensure it matches your battery type.
3. Connect the battery to the B+ and B- solder pads with wires of sufficient cross-section. Soldering is necessary, imperfect contact (e.g. using a step clamp) can cause damage to the charger!
Charging the battery can be done via the USB-C connector or by applying 5V to the 5V(+) and IN-(-) solder pads. Charging current is up to 3A when using the USB-C connector. If soldering plates are used, a charging current of only 2A is possible.
Specifications:
- Input voltage: 5-5.5V
- Output voltage: 5V USB-C
- Output current max: 3.1A
- Battery charging: 4.2V, 4.35V, or 4.4V - factory setting is 4.2V (LiION)
- Charging current max.: 3A
- 4 LEDs
- Automatically detects phone connection and disconnection
- Press the button twice to turn the output off and once to turn the output on
- USB-C supports input and output
- Intelligent recognition of DCP mobile phone charging current
- Output and input over-current, over-voltage and short-circuit protection, over-charge and over-discharge protection

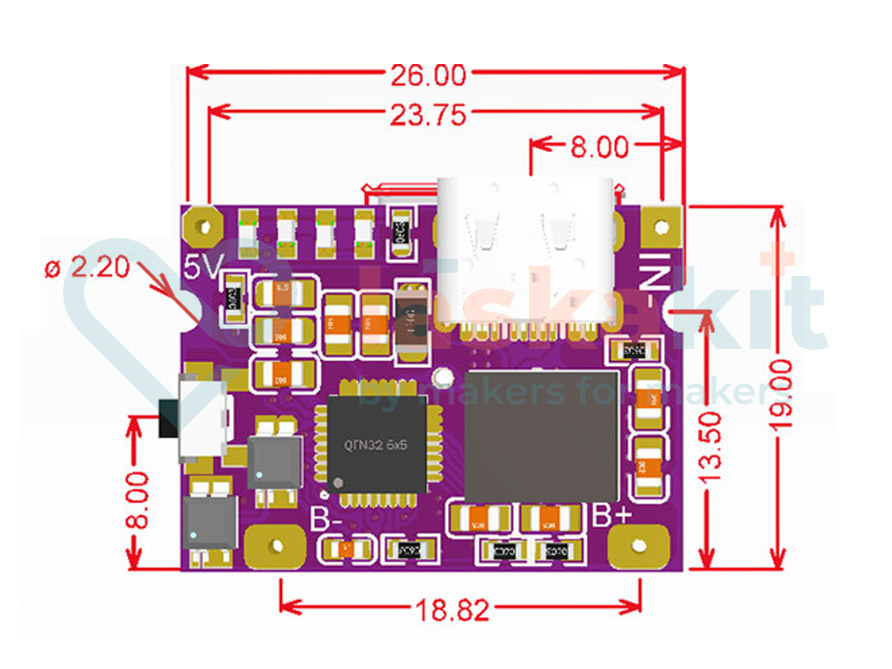

- Dimensions: 27x20x5mm
- Weight: 4g
Included in delivery:

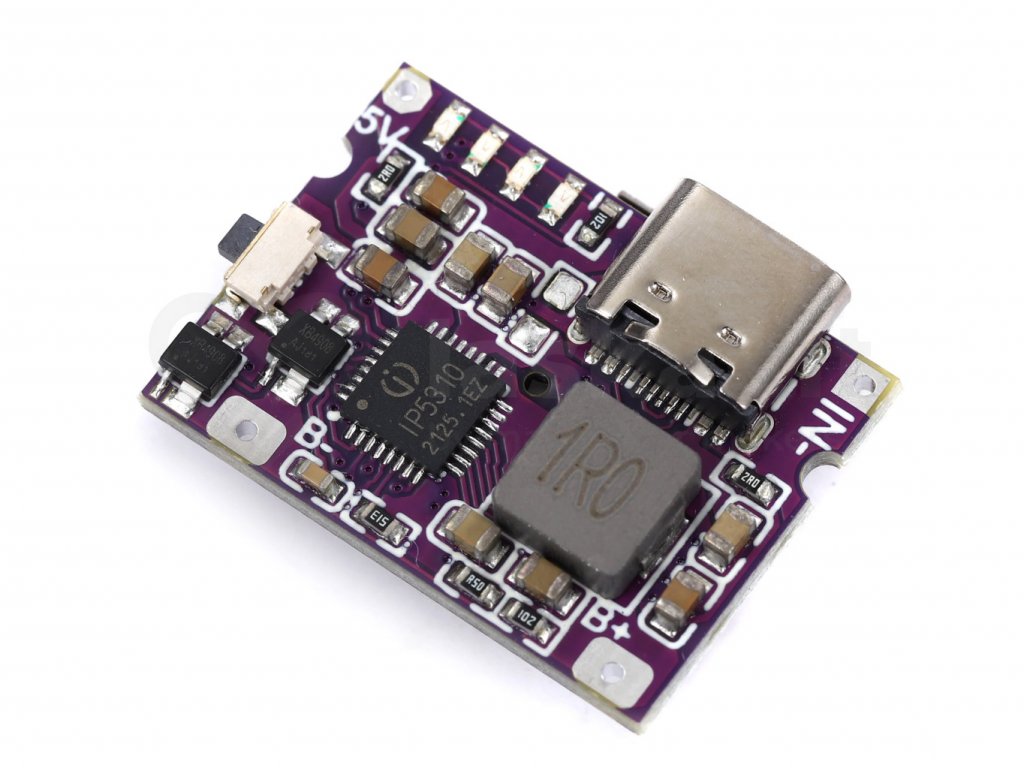

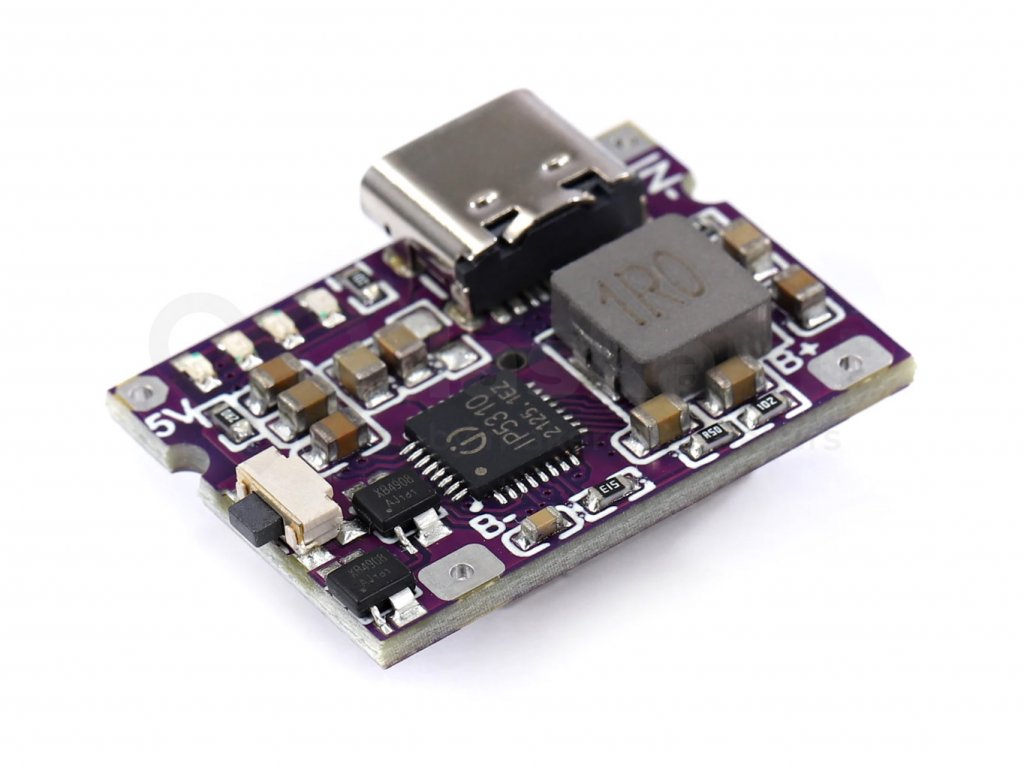

- 1pc Charger + boost LX-LBC3.1 for USB Powerbank IP5310 5V 3.1A, USB-C
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
