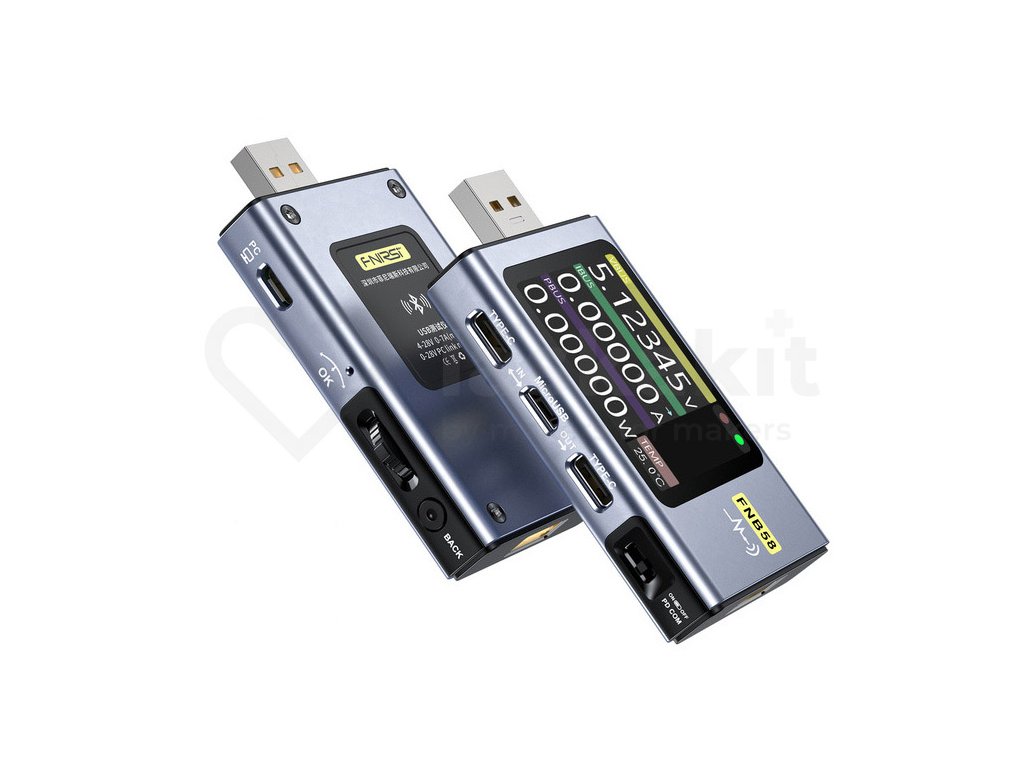

Multifunctional USB 3.0 meter-tester FNB58 Bluetooth

Code: LA240095
€76,77 €63,45 excl. VAT
Skladem (7 pcs)
Delivery to:
16/12/2024

Multifunctional USB meter-tester. Detects fast charge protocols APPLE2.4A, QC2.0, QC3.0, PD, Samsung AFC, FCP, SCP, VOOC/WARP, Supervooc, MTK-PE

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

The FNB58 tester is a highly reliable and safe USB device that allows current measurement and detection of the fast charging protocol of mobile devices. It has a 2" TFT LCD display and integrated USB-A, microUSB and USB-C interfaces. It uses an external 16-bit ADC and a separate PD fast charging circuit for measurement. It can be used to measure the power or energy consumption of USB interface products such as mobile phone chargers, U drives, etc. It can be used to measure the charging performance of mobile phone chargers and the input and output charging conditions of mobile devices. Detects fast charging protocols APPLE2.4A, QC2.0, QC3.0, PD, Samsung AFC, FCP, SCP, VOOC/WARP, Supervooc, MTK-PE.

The device can be connected to a PC or mobile phone and display the measured values in the app.

Specifications:

  • Voltage measurement range: 4-28V
  • Current measurement range: 0-7A
  • Power measurement range: 0-120W
  • USB cable resistance measurement range: 0-9999.9Ω
  • Internal resistance measurement range: 0-9999.9Ω
  • Battery capacity measurement range: 0-9999.99Ah
  • Measured energy range: 0-9999.99Wh
  • Voltage measurement resolution: 0.00001V
  • Voltage measurement accuracy: ±(0.2‰+2)
  • Current measurement resolution: 0.00001A
  • Current measurement accuracy: ±(0.5‰+2)
  • Power measurement resolution: 0.00001W
  • Power measurement accuracy: ±(0.5‰+2)
  • Display type: 2" TFT LCD
  • Measuring time: 0-99days 23h 59min 59s
  • Measurement record: 99 days 23h 59min 59s
  • Dimensions: 82x42x13mm
  • Weight: 45g

FNB58-disc

Included in delivery:

  • 1pc Multifunctional USB 3.0 Meter-Tester FNB58 Bluetooth

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: Measuring Instruments & Tools
Warranty: 2 years
Weight: 0.089 kg

Be the first who will post an article to this item!

Do not fill out this field:
Do not fill out this field:
F Avatar of author 16/11/2023 10:26
Šikovné zařízení, škoda, že se něco podobného nedá sehnat pro výstupní napětí 3.3 V - potřeboval bych měřit spotřebu zařízení s ESP32 v praktickém provozu (střídání deep_sleep a provozu, škálování frekvence procesoru,... >> pulsní charakter zátěže - rychlé a velké změny odběru mezi řádově mikroampéry a vyššími desítkami mA). Pokud máte někdo typ na podobné zařízení dejte sem vědět.
Reply
JD Avatar of author Výstupní napětí 3.3 V 28/11/2023 20:59
Dobrý den, dnes mi zařízení FNB58 přišlo z obchodu LaskaKit. Vyzkoušel jsem nastavit ve "Fast Charge > PD trigger" napětí 3.3V. Vyzkoušel jsem, že nižší napětí než 4V to umí pouze pokud je připojený zároveň PC link (USB micro vedle tlačítek) na 5V (nemusí být připojen k PC, ale třeba k USB nabíječce). Ostatně, je to napsáno i na zadní straně zařízení: "4-28V 0-7A, 0-28V PC link mode"
