Multifunctional USB 3.0 meter-tester FNB48S

Product detailed description

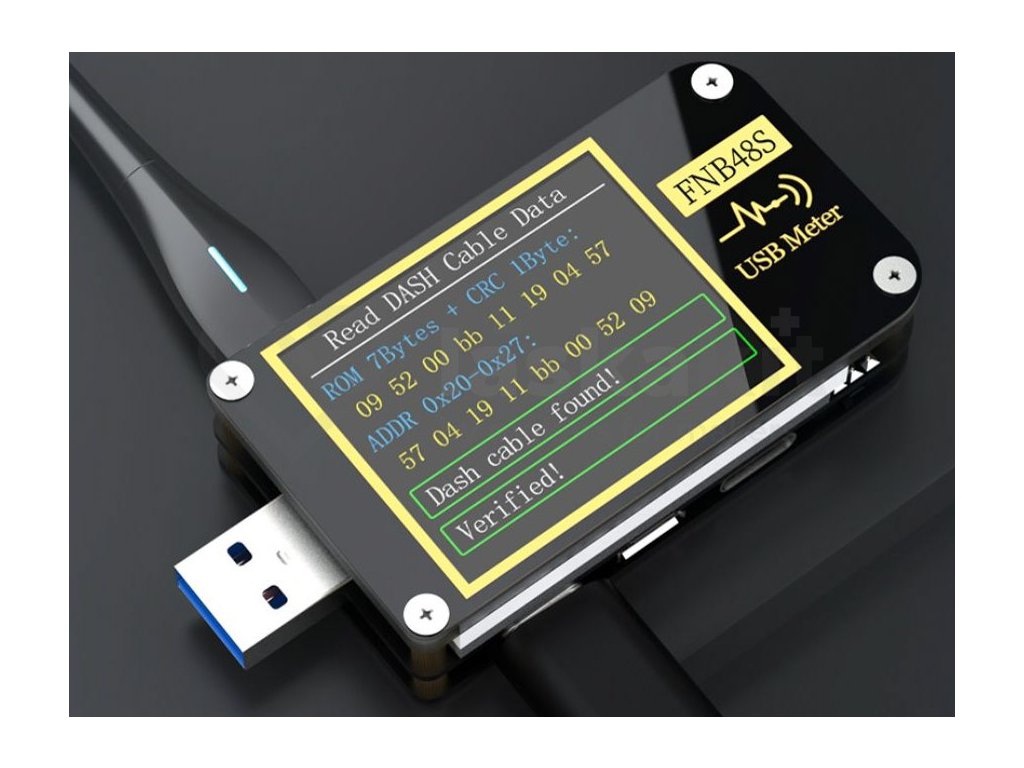

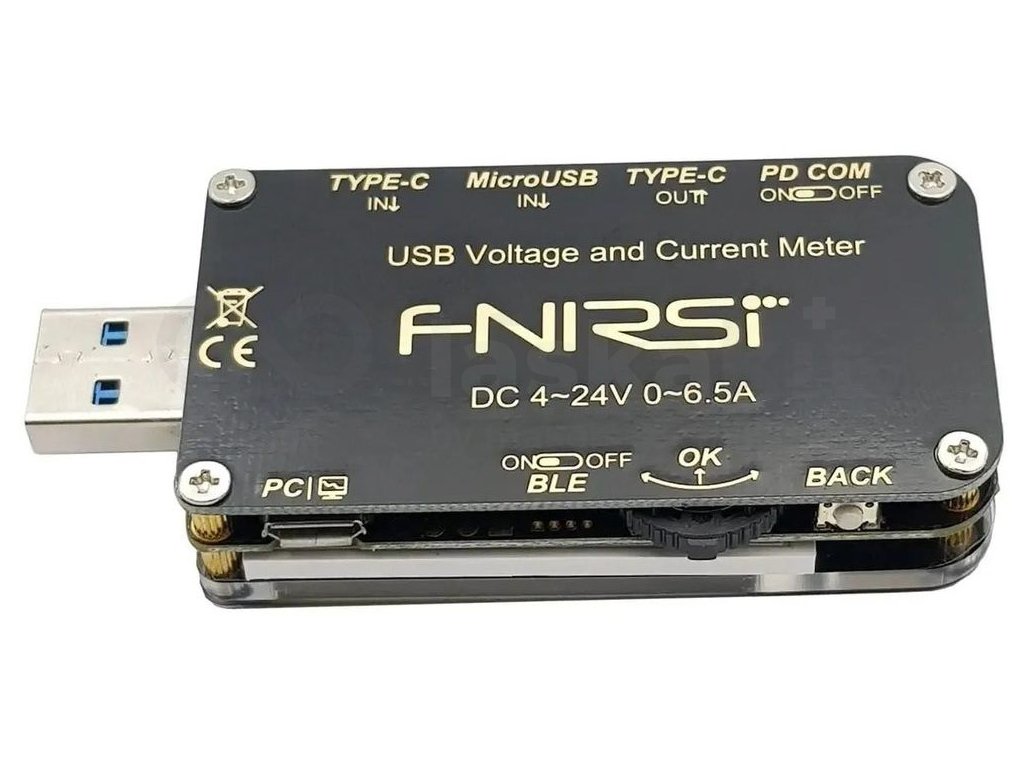

The FNB48S tester is a highly reliable and safe USB device that allows current measurement and detection of the fast charging protocol of mobile devices. It has a 1.77" TFT LCD display and integrated USB-A, microUSB and USB-C interfaces. It uses an external 16-bit ADC and a separate PD fast charging circuit for measurement. It can be used to measure the power or energy consumption of USB interface products such as mobile phone chargers, U drives, etc. It can be used to measure the charging performance of mobile phone chargers and the input and output charging conditions of mobile devices.

Specifications:

• Fast charging protocols:
  • Apple 2.4A
  • QC 2.0
  • QC 3.0
  • Power Delivery
  • Samsung AFC
  • Huawei FCP
  • Huawei SCP
  • VOOC/WARP
  • Super VOC
  • MTK-PE
• Voltage measurement range: 4 - 24 V
• Voltage measurement accuracy: ±(0.2‰+2)
• Voltage measurement resolution: 0.00001 V
• Current measurement range: 0 - 6.5 A
• Current measurement accuracy: ±(0.5‰+2)
• Current measurement resolution: 0.00001 A
• Power measurement range: 0 - 156 W
• Power measurement accuracy: ±(0.5‰+2)
• Power measurement resolution: 0.00001 W
• Internal resistance measurement range: 0-9999.9 ohm
• Internal resistance measurement resolution: 0.0001 ohm
• Internal resistance measurement accuracy: ±(0.5‰+2)
• USB cable resistance measurement range: 0-9999.9ohm
• USB cable resistance measurement resolution: 0.0001 ohm
• Battery capacity measurement range: 0 - 9999.99Ah
• Capacitance measurement resolution: 0.00001 Ah
• Energy measurement range: 0 - 9999.99 Wh
• Resolution of USB cable resistance measurement: 0.00001 Wh
• Device temperature: ℃/℉
• Display type: 1.77" TFT LCD
• Measuring time: 99days 23h 59min 59s
• Measurement record: 99days 23h 59min 59s
• Dimensions: 91×63×19 mm
• Weight: 55g

Dimensions:

Included in delivery:

• 1pc Multifunctional USB 3.0 Meter-Tester FNB48S
• 1pc USB-C cable

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
