Brass flow meter YF-B6 3/4" 1-30L/min
Code: LA131182B
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Related products
Product detailed description
The YF-B6 brass flowmeter is a high-precision sensor designed to measure fluid flow rates in the range of 1-30 litres per minute. Its robust brass body makes it resistant to corrosion and mechanical wear, making it an ideal choice for industrial and domestic applications.

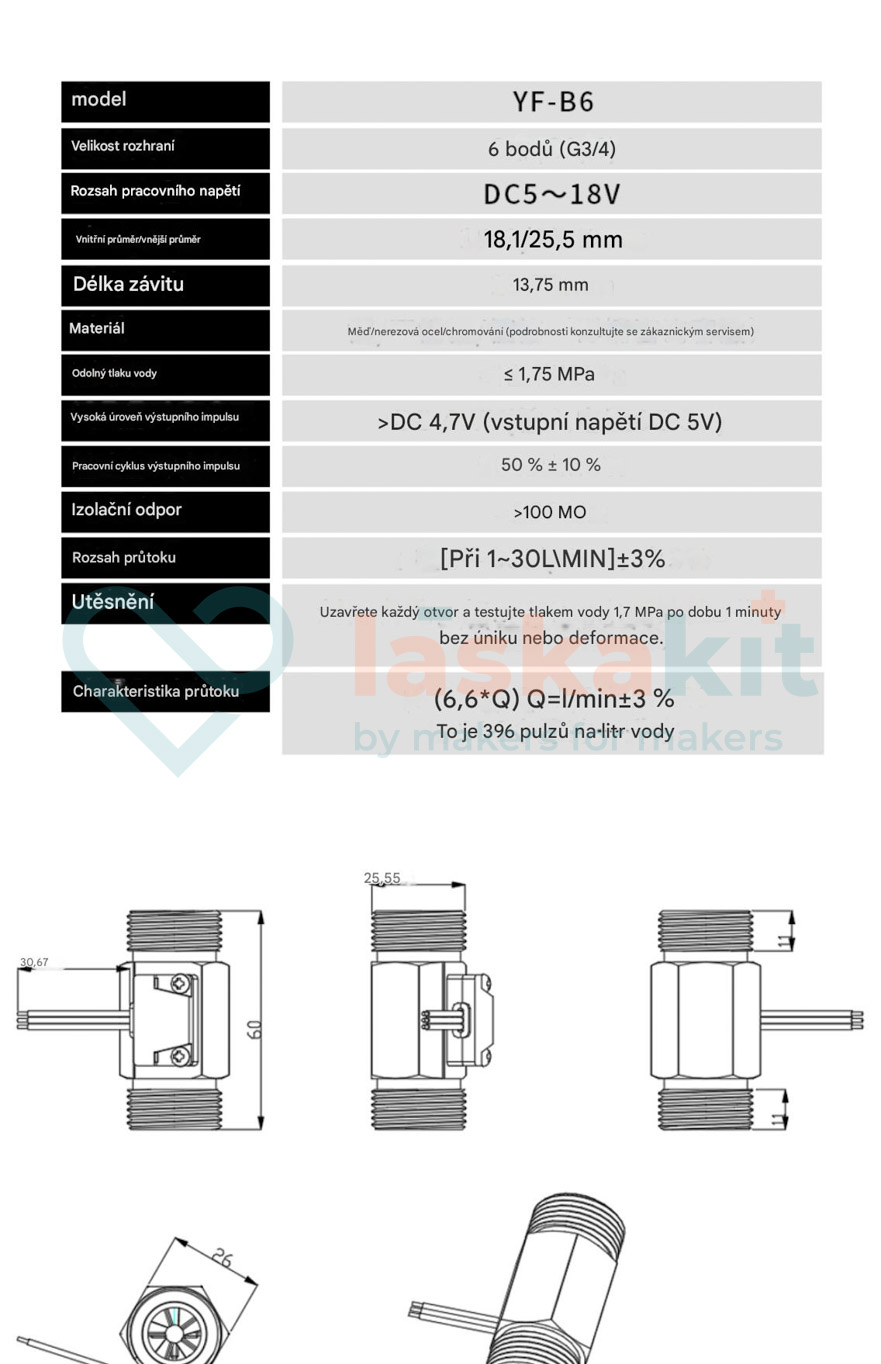

Specifications:
- Working voltage: DC 5-18V
- Liquid flow: 1-30L/min
- Maximum current: 15mA (DC 5V)
- Operating temperature: - 25 ~ + 80°
- Operating humidity: 35%~90% RH
- External thread: 3/4"
- Output: 5V TTL (5V power supply)
- Pulse characteristics: 198 Hz (Q - 30 l/min), 99 Hz (Q - 15 l/min), 33 Hz (Q - 5 l/min); F = 6.6 * Q
- Cable length: ~ 15cm
- Thread length: 11mm
- Body length: 60mm
- Connector: JST-SM-3
- Red: VCC
- Yellow: Signal output
- Black: GND
Included in delivery:
- 1pc Brass flowmeter YF-B6 3/4" 1-30L/min
Note:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
- Magnetic materials in the vicinity may affect the measurement
Additional parameters
| Category: | Liquid sensors - rain sensors and water level sensors |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.15 kg |
| Output: | Digital |
| Sensor type: | Temperature, Flow |
