    Home / Sensors / Gas and air quality / MH-Z16 NDIR CO2 sensor 50000ppm

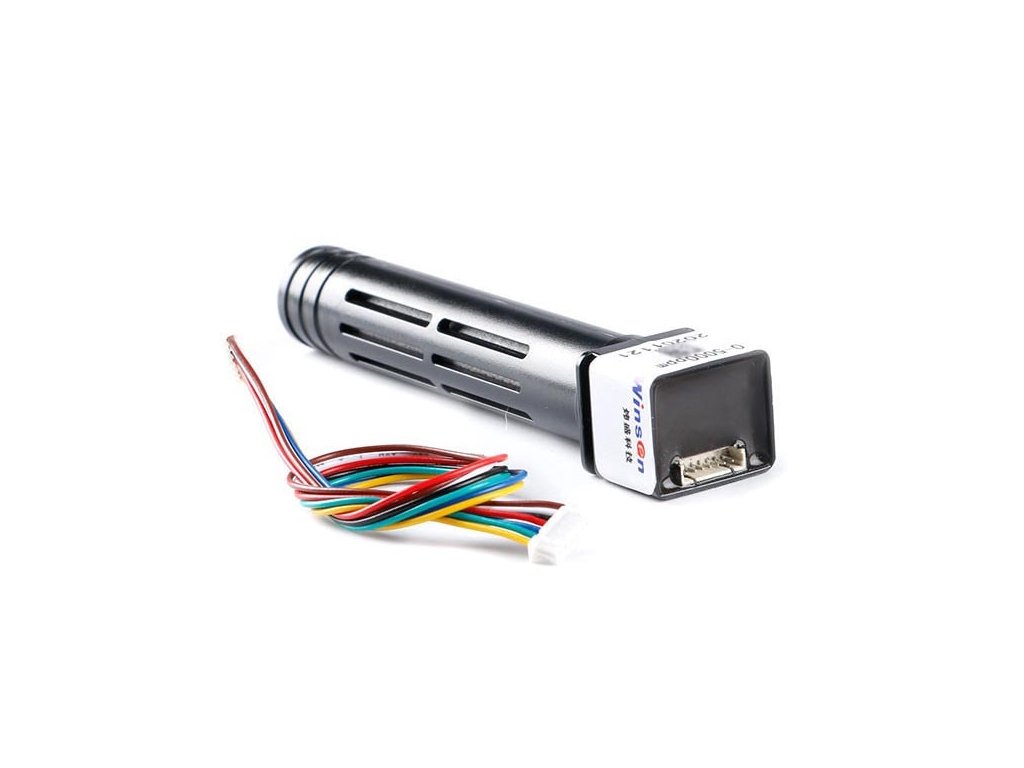

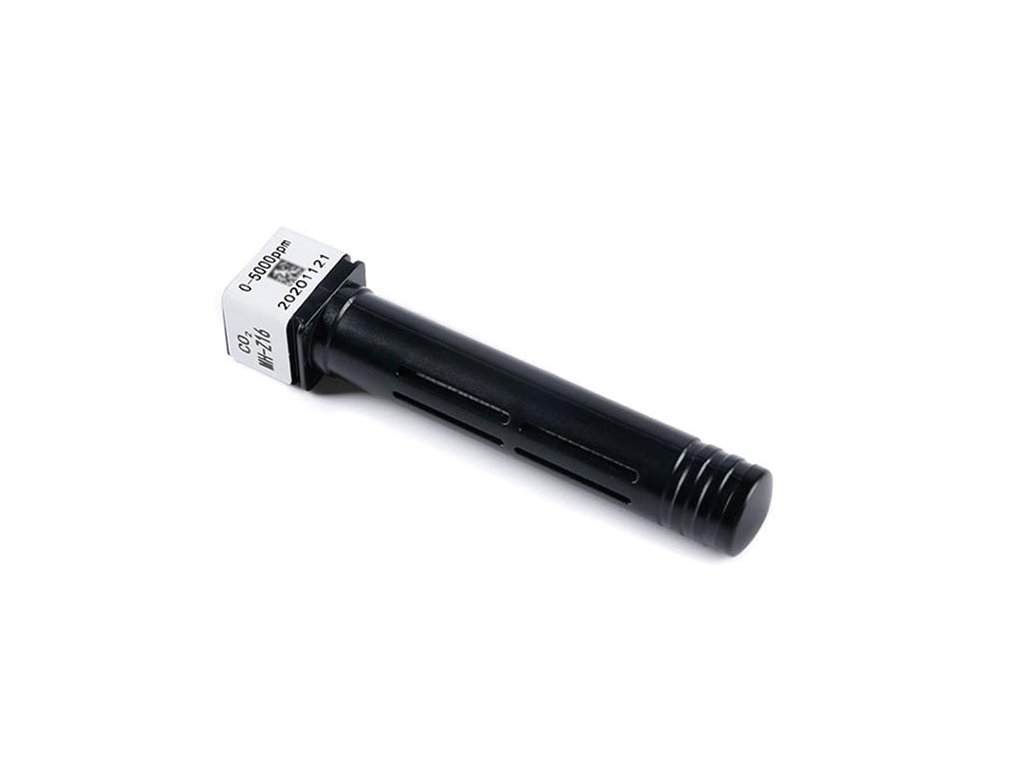

    MH-Z16 NDIR CO2 sensor 50000ppm

    Code: LA131060
    Not rated
    Brand: WINSEN
    S91194a78e9c34b9ca764571144e7634fo
    €53,28 €44,03 excl. VAT
    Skladem (10 pcs)
    Delivery to:
    16/12/2024

    MH-Z16 NDIRCO2 sensor

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    foto 3
    Ai-Thinker ESP32-S 2.4GHz WiFi+Bluetooth Module
    Skladem (3 pcs)
    €2,39 excl. VAT
    €2,89

    Ai-Thinker ESP32-S module with an ESP32 chip that allows it to communicate wirelessly via WiFi and Bluetooth.

    LA100065

    Product detailed description

    Optical NDIR sensor. Its output is a digital value read via UART or PWM. Uses optical NDIR measurement and is sensitive to the purity of the measured gas

    The sensor detects:

    • Carbon dioxideCO2 (carbon dioxide)

    Specifications:

    • Working voltage: 4.5-5.5VDC
    • Logic level: 3.3V
    • Operating current: < 85mA
    • Detection range: 0-50000ppm (0-5%VOL)
    • Preheating time: 3 min
    • Exit:
      • PWM
      • UART (9600, N, 8, 1)
    • Response time: < 30s
    • Working temperature: 0-50 °C
    • Working humidity: 0 - 95% RH
    • Size: 97x20x17mm
    • Weight: 25 g

    Included in delivery:

    • 1pc MH-Z16 NDIRCO2 sensor 50000ppm

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Air quality sensors and gas sensors
    Warranty: 2 years
    Weight: 0.025 kg
    Output: PWM, UART
    Sensor type: Carbon dioxide
    LaskaKit laskakit sada imbus sroubu matic a podlozek m2 660ks 3
    LaskaKit set of IMBUS screws, nuts and washers M2 660 pcs
    Momentálně nedostupné
    €7,83 excl. VAT
    €9,48

    LaskaKit set of brass screws, nuts and spacers, perfect for fixing and organizing your projects.

    LA180065A
    7386 4 laskakit simple joystick stavebnice
    LaskaKit Simple Joystick kit
    Skladem (26 pcs)
    €26,26 excl. VAT
    €31,77

    Looking for a transmitter and receiver kit that you can easily program? Then you might like our transmitter and receiver set, which is based on the Arduino development boards...

    LA180031
    LasKKit Čirá LED sada 300ks 3 a 5mm
    LaskaKit Clear LED set 300 pcs 3 and 5 mm
    Skladem (2 pcs)
    €4,54 excl. VAT
    €5,49

    LaskaKit set of clear LEDs with several colors in 3 and 5 mm.

    LA180026
    Show all alternative products

    Be the first who will post an article to this item!

    Do not fill out this field:
    Do not fill out this field:
    V Avatar of author Dostupnost, dosah 2 18/11/2024 10:04
    Dobrý den, přidávám se k předřečníkovi Pavlovi s úplně stejnou otázkou – kdy bude, prosím, senzor dostupný? A můžete prosím dodat také senzor s rozsahem 0-10%? Mnohokrát děkuji.
    Reply
    KL Avatar of author Dostupnost, dosah 2 18/11/2024 11:44
    Zdravím, cca 6.12. 0-10 můžeme taký dodat.
    P Avatar of author Dostupnost, rozsah 14/10/2024 19:21
    Dobrý den, kdy bude dostupný tento senzor? Můžete dodat také senzor s rozsahem 0 - 10% CO2? Děkuji.
    Reply
    M Avatar of author Rozlišení senzoru 20/05/2024 12:47
    Dobrý den, rád bych se zeptal na rozlišení tohoto senzoru. Výrobce v datasheetu uvádí chybu měření pouze z hodnoty (a ne z rozsahu), je tedy možné že senzor bude rozumně přesný i při nižších měřených hodnotách. Bohužel mi chybí údaj o rozlišení senzoru. Data se posílají ve dvou bytech, ale jednoznačné jestli má tedy výstup 16bit rozlišení či menší. Děkuji.
    Reply
    MF Avatar of author Rozlišení senzoru 20/05/2024 12:51
    Dobrý den, víc informací, než je v datasheetu bohužel nemáme. Můžete zkusit kontaktovat výrobce - https://www.winsen-sensor.com/product/mh-z16.html
