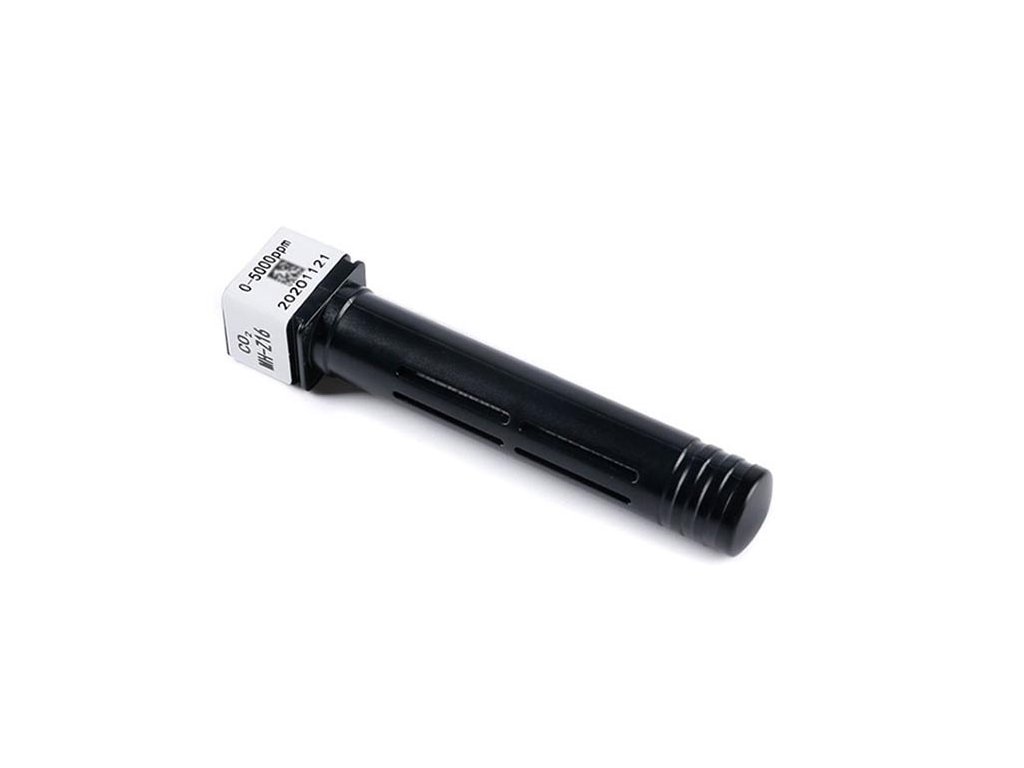

MH-Z16 NDIR CO2 sensor 5000ppm

Product detailed description

Optical NDIR sensor. Its output is a digital value read via UART or PWM. Uses optical NDIR measurement and is sensitive to the purity of the measured gas

The sensor detects:

• Carbon dioxide_CO2 (carbon dioxide)

Specifications:

• Working voltage: 4.5-5.5VDC
• Logic level: 3.3V
• Operating current: < 85mA
• Detection range: 0-5000ppm
• Preheating time: 3 min
• Exit:
  • PWM
  • UART (9600, N, 8, 1)
• Response time: < 30s
• Working temperature: 0-50 °C
• Working humidity: 0 - 95% RH
• Size: 97x20x17mm
• Weight: 25 g

Included in delivery:

• 1pc MH-Z16 NDIR_CO2 sensor 5000ppm

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
