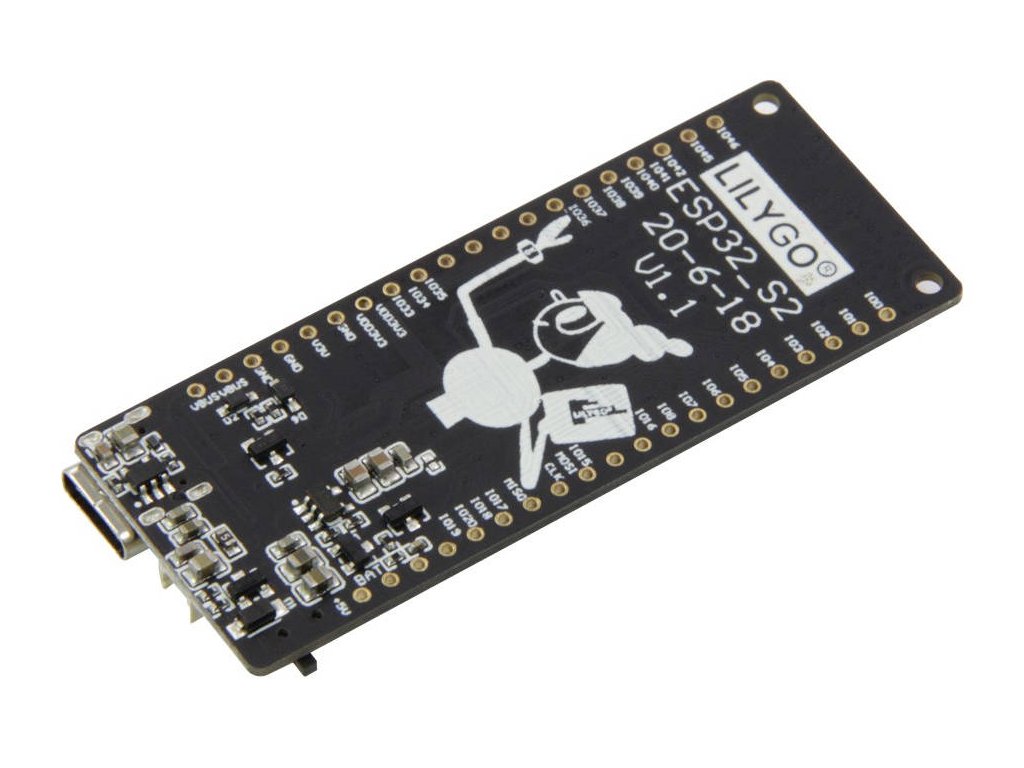

LilyGO TTGO T8 ESP32-S2 V1.1 Development Board
Code: LA100107
Free Shipping
From 100 EUR
30 Days to Return
For Registered
30 Days to Return
For Registered Customers
Free Shipping
For orders from 100 EUR
Customer Care
We handle complaints within 5 days
Quick dispatch
Within 24 hours
Product detailed description

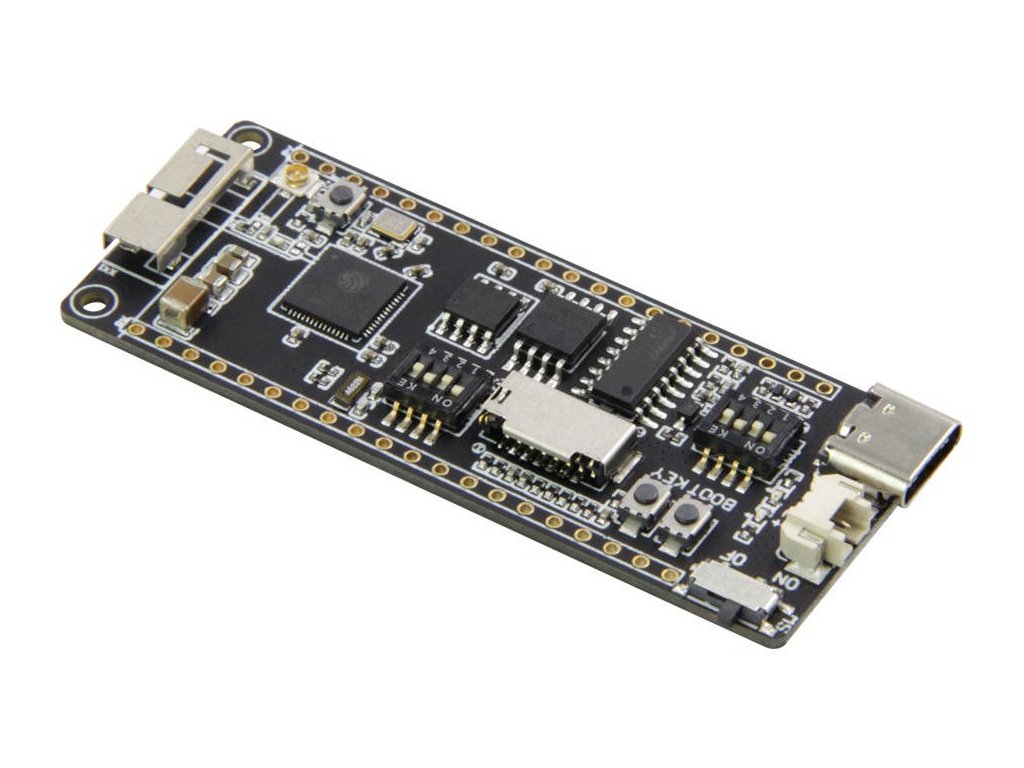

Development board based on ESP32-S2 microcontroller. The board includes a USB-to-UART converter with USB-C connector for easy programming and debugging, TF card slot (microSD), I/O expansion connector, power/charging circuit for battery powered applications.
Specifications:
|
Hardware |
|
| Chipset | ESPRESSIF-ESP32-S2 |
| FLASH | 4MB |
| PSRAM | 8MB |
| SRAM | 320kB |
| Button | Power, Reset, Boot, Customize, DPI |
| USB to TTL converter | CH340C |
| External device | TF card - microSD |
| Communication interface | SD card, UART, SPI, I2C, PWM, I2S, ADC |
| Oscillator | 32.768KHz crystal oscillator |
| Supply voltage | 2.7-3.6V |
| Operating temperature range | -40 - +85℃ |
| Dimensions | 65.21x25.95x5mm |
|
|
|
| Power | USB 5V/1A |
| Charging current | 500mA |
| Batteries | 3.7V lithium |
|
|
|
| Standard | FCC/CE/TELEC/KCC/SRRC/NCC(esp32 chip) |
| Protocols | 802.11 b/g/n/e/i (802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Output power | 22dBm |
Delivery components:
- 1pc LilyGO TTGO T8 ESP32-S2 V1.1 Development Board
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | ESP Development Boards |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.01 kg |
| Type: | ESP |
| Logical levels: | 3.3V |
| I/O pins: | 35 |
| PWM pins: | 35 |
| ADC pins: | 20 |
| Frequency: | 40MHz |
| Flash memory: | 4MB |
| SRAM memory: | 8.3MB |
| EEPROM memory: | Ne |
| Connector with battery charger: | Yes |
| Microcontroller: | ESP32 |
| Converter: | CH340 |
| Bluetooth: | No |
| WiFi: | Yes |
| The item has been sold out… | |
5,0
1 rating
Add a rating
5
4
3
2
1
5
O
OSi
OSi
Funguje bezproblemove jak v USB, tak v OTG modu. Pro ty co radeji programuji v Pythonu nezli v C/C++ (Arduinu), je mozne nahrat MicroPython (ci CircuitPython) image. Trochu podrobnejsi navod jak na to naleznete zde:
https://www.jarutex.com/index.php/2022/01/03/9190/
Posledni python image lze stahnout zde:
https://micropython.org/download/ESP32_S2_WROVER/
Je take mozne nainstalovat CircuitPython, viz tato stranka (ozkouseno):
https://circuitpython.org/board/lilygo_ttgo_t8_s2/
Vyhodou oproti klasickemu ESP32 je pristup k celemu obsahu SPI-RAM (V pripade teto desky to je 8MB. Neni zde omezeni na 4MB). Lze tedy pomerne pohodlne provozovat treba s ruznymi typy displeju, ktere vyzaduji implementaci frame bufferu.
Za mne mohu doporucit jako zajimavou alternativu ke klasicke ESP32.
