LilyGO TTGO T-ZigbeePA ESP32-C3 TLSR8258 Zigbee Module

Product detailed description

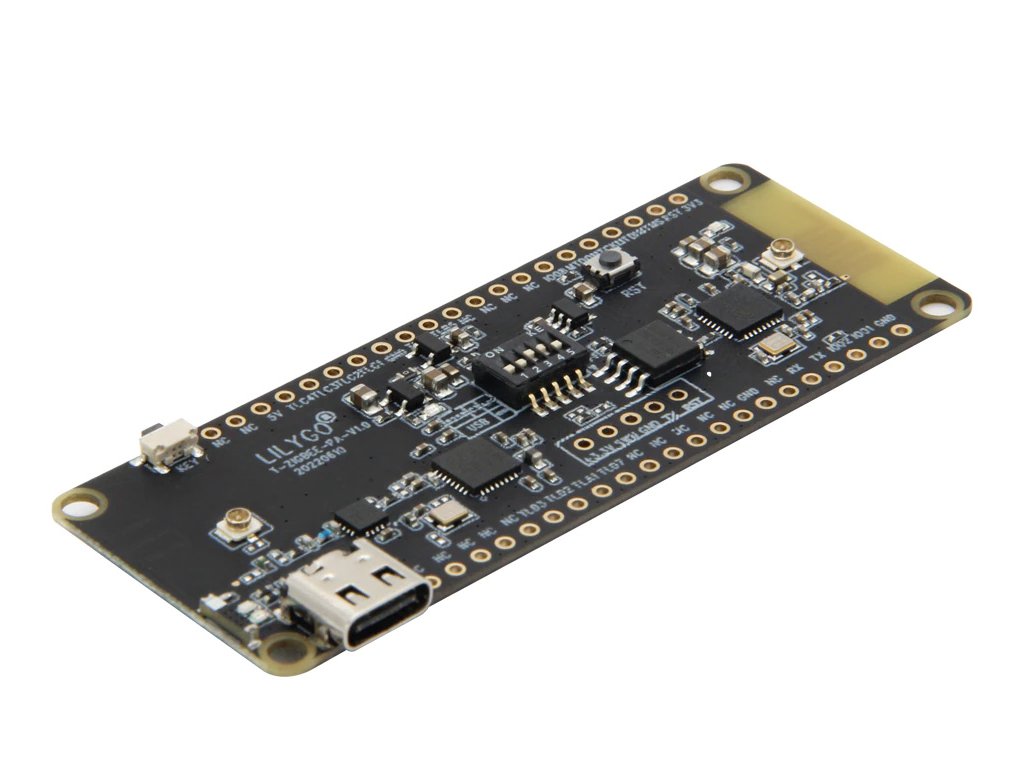

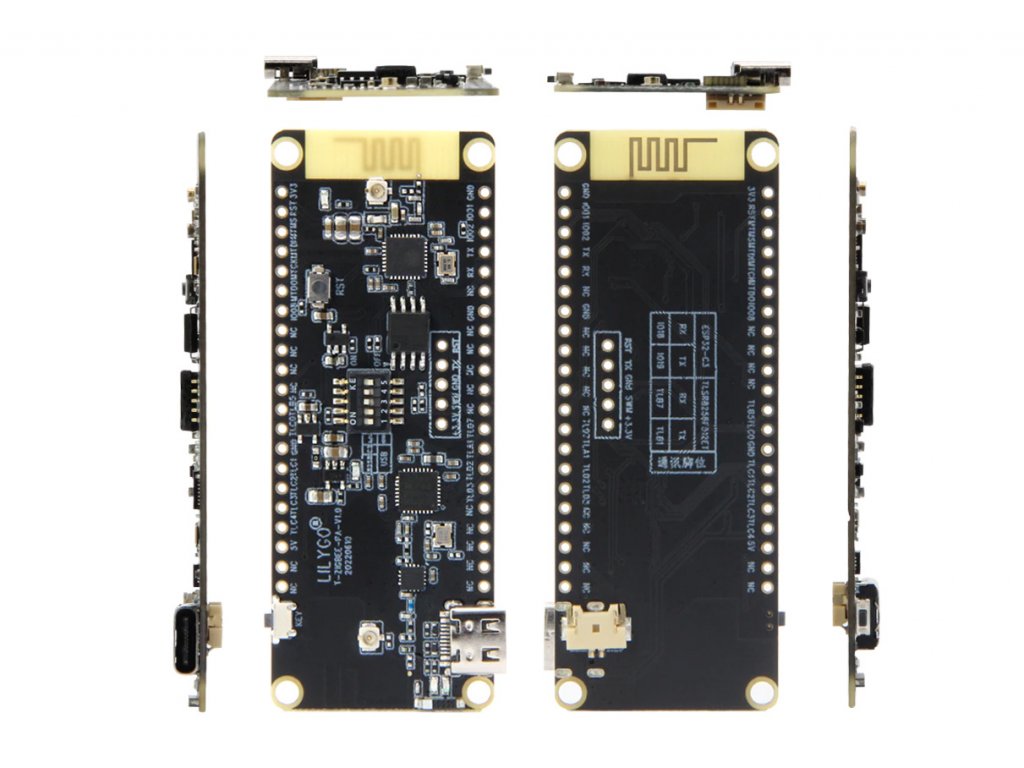

Development board from the manufacturer LilyGO equipped with two independent microcontrollers ESP32-C3 and TLSR8258. It is thus possible to communicate independently using ZigBee and at the same time process other tasks in ESP32. It is also possible to communicate between these microcontrollers to create a complex device.

The board requires a special programmer LilyGO T-U2Tfor programming. If you don't have the option of this programmer, we have prepared an adapter that connects to our programmer and thus replaces the original T-U2T programmer.

ATTENTION! The board has a non-standard USB-C connector due to the use of the T-U2T programmer, so we recommend not to connect a USB-C data cable. Just a cable that carries power only.

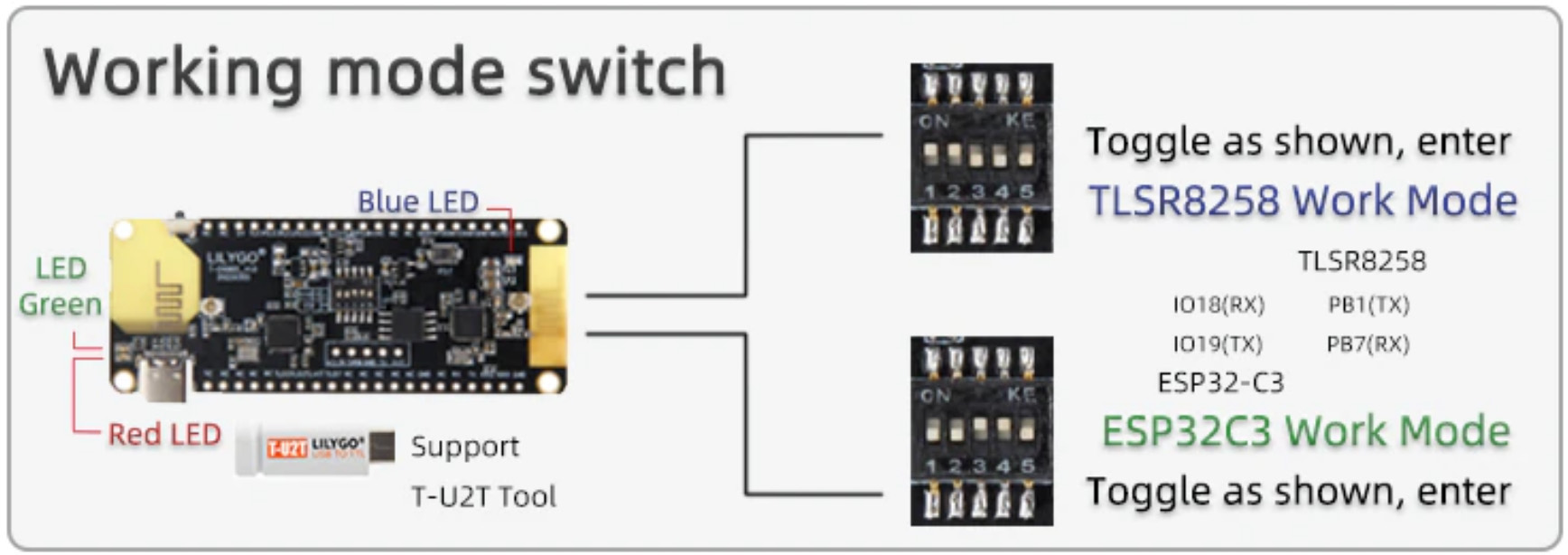

MCU1: TLSR8258 ultra-low power MCU supporting ZigBee and BLE5 Wireless: support BLE 5 Mesh, Zigbee, RF4CE, Thread 6LoWPAN, HomeKit, proprietary 2.4GHz ANT standard with PGA, AMIC, DMIC, 6-channel PWM function. Programmable LED: Red LED:PD04 Green LED: PA00

MCU 2: ESP32-C3 Equipped with RISC-V Soc processor Support 2.4 GHz Wi-Fi and Bluetooth 5 (LE) Main frequency 160 MHz, built-in 400 KB SRAM, 384 KB ROM. Programmable button: IO02, blue LED: IO03

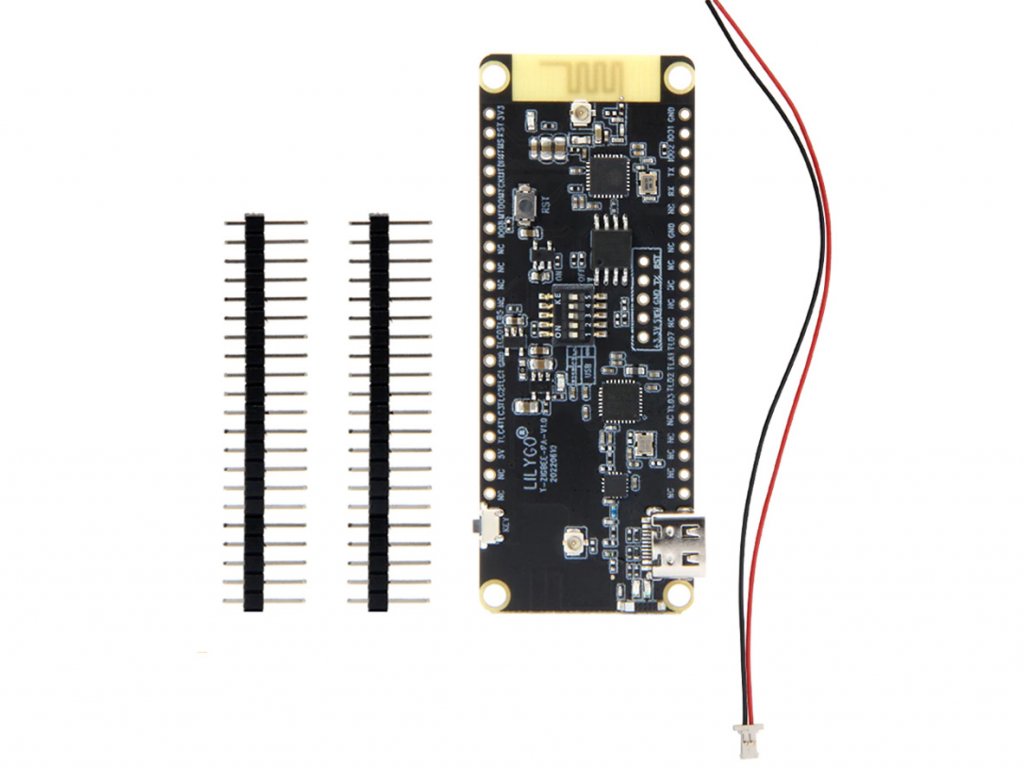

Delivery components:

• 1pc LilyGO TTGO T-ZigbeePA ESP32-C3 TLSR8258 Zigbee Module
• 1pc Cable with battery connector
• 2 pcs Pin bar

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
