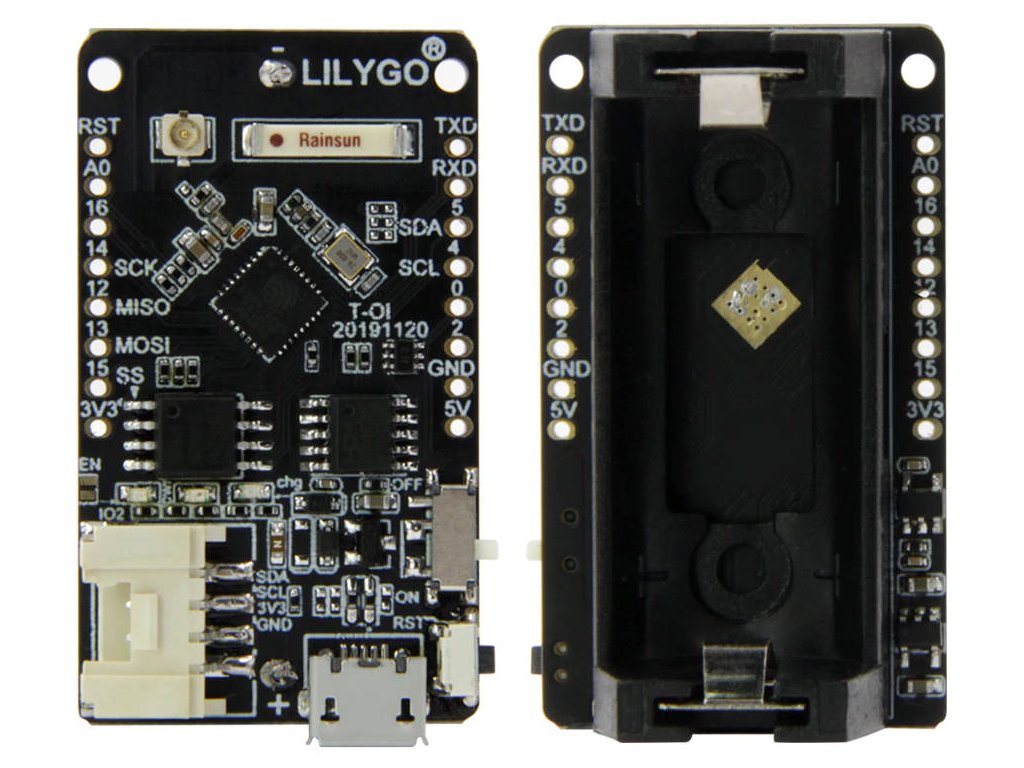

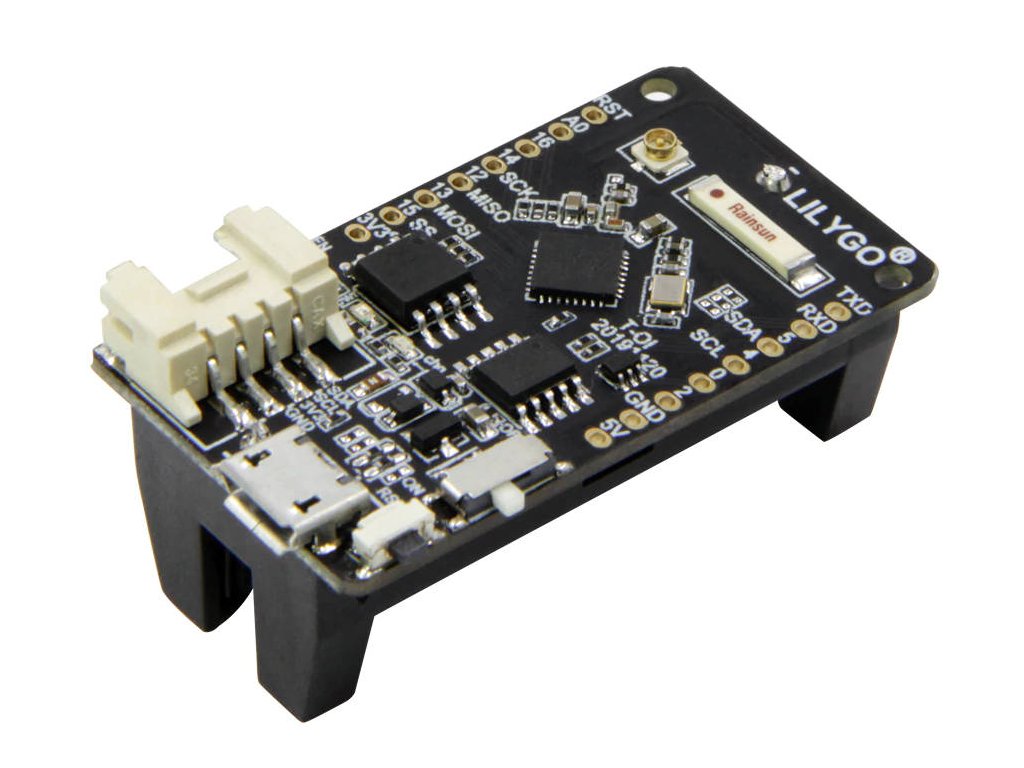

    LilyGO TTGO T-OI ESP8266 16340 Li-Ion WiFi Module

    Code: LA100092
    Not rated
    Brand: LilyGO
    3821 4 lilygo ttgo t oi esp8266 16340 li ion wifi modul
    €11,87 €9,81 excl. VAT
    Skladem (3 pcs)
    Delivery to:
    16/12/2024

    LilyGO TTGO T-OI ESP8266 16340 Li-Ion WiFi Module

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

    LilyGO TTGO T-OI ESP8266 16340 Li-Ion WiFi Module

    Specifications:

    • WiFi
    • 4MB Flash
    • Converter: CH340K
    • External and internal antenna

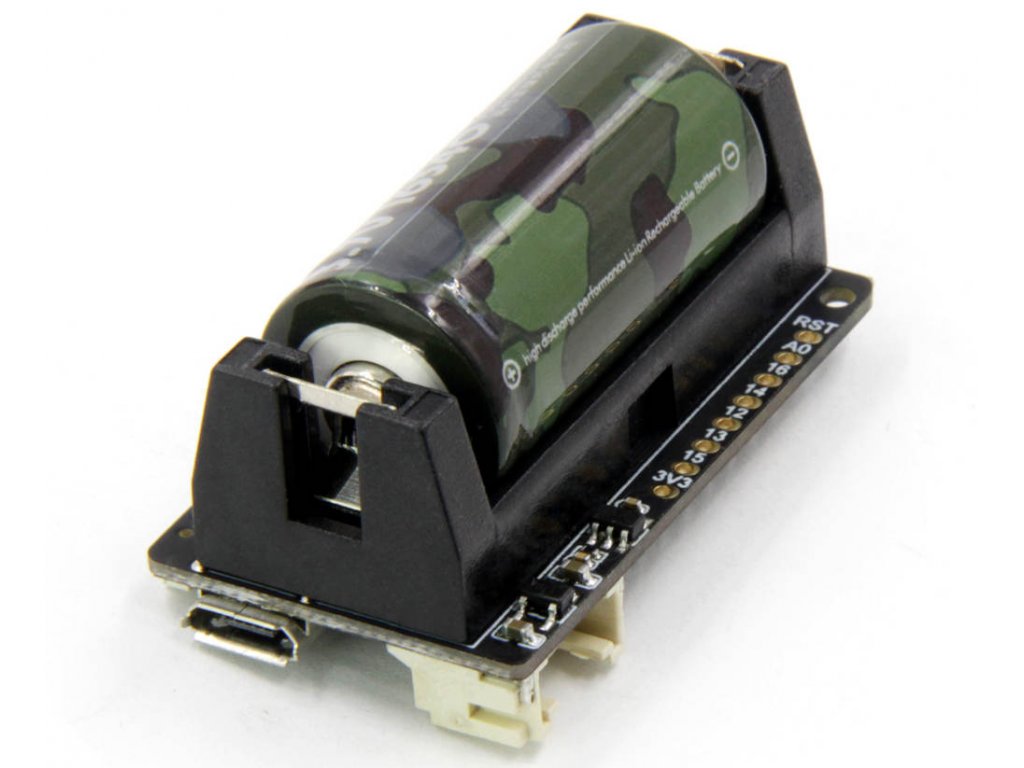

    • Holder for 16340 Li-ION battery, charging max. 500mA
    • TTGO I2C Port
    • Compatible with Arduino, MicroPython, NodeMCU

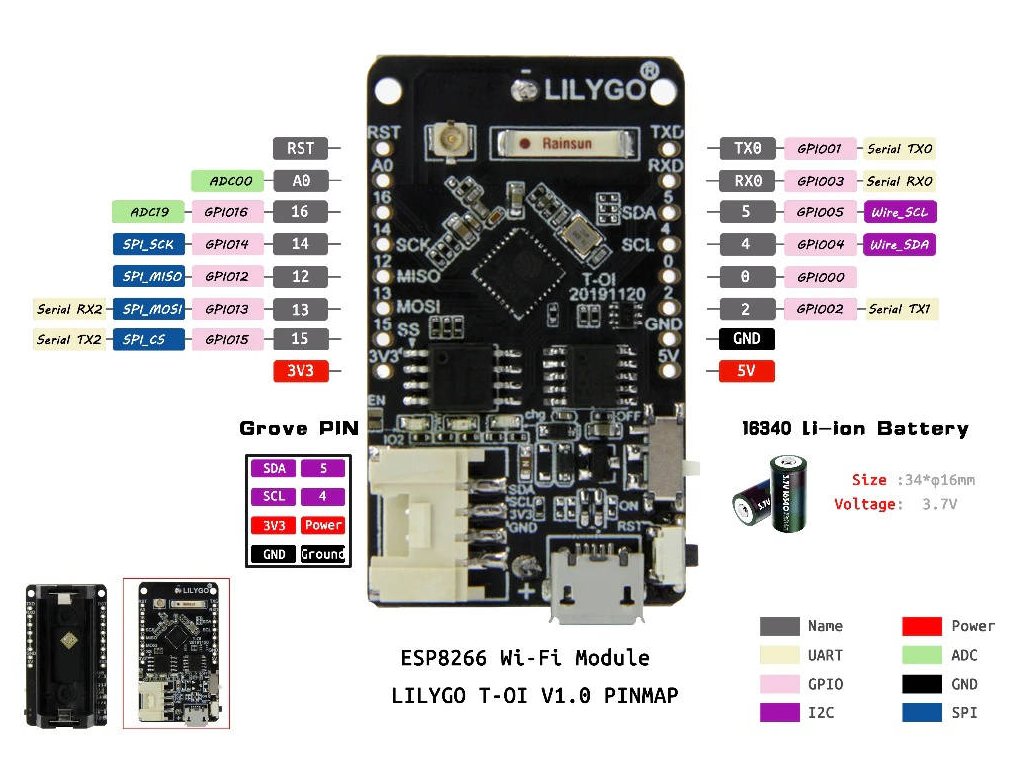

    • Pin and software compatible with Wemos D1 mini

    Included in delivery:

    • 1pc LilyGO TTGO T-OI ESP8266 16340 Li-Ion WiFi Module
    • 2 pcs Pin strips

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
    • Battery type 16340 not included
    • To use the external antenna you need to disconnect the jumper from the position for the internal antenna and connect it to the position for U.FL connector. Without this modification, the connector is not plugged in and the external antenna will not work!

    Additional parameters

    Category: ESP Development Boards
    Warranty: 2 years
    Weight: 0.01 kg
    Type: ESP
    Logical levels: 3.3V
    I/O pins: 9
    PWM pins: 8
    ADC pins: 1
    Frequency: 26MHz
    Flash memory: 4MB
    SRAM memory: 32kB
    EEPROM memory: Ne
    Connector with battery charger: Yes
    Microcontroller: ESP8266EX
    Converter: CH340
    Bluetooth: No
    WiFi: Yes

    Be the first who will post an article to this item!

    Do not fill out this field:
    Do not fill out this field:
    O Avatar of author Micropython 17/12/2022 22:52
    Zdravim a pridavam prispevek ve snaze usetrit spetku casu vsem co by chteli tenhle modulek pouzit s Micropythonem. Deska funguje s celkem v pohode, ale pri flashovani firmware je potreba zvolit mod Dual I/O (parametr esptool -fm dio), tedy: esptool.py --port /dev/ttyUSB0 --baud 460800 write_flash -fm dio --flash_size=detect 0 esp8266-ota-20220618-v1.19.1.bin .... v opacnem pripade nenabehne na UARTu python terminal.
    Reply
    JŠ Avatar of author Ochrana vybití baterie 20/12/2021 15:39
    Zdravím, bastlíři. Nevíte, jestli má tento modul ochranu proti přílišnému vybití baterie a tím pádem jejímu poškození? Díky.
    Reply
    PS Avatar of author Spotřeba při spánku? 25/07/2021 13:43
    Zdravím, modul mne zaujal, ale marně hledám informaci jak je na tom se spotřebou při spánku.
    Reply
    O Avatar of author RE: Avatar autora Spotřeba při spánku? 07/01/2023 17:49
    Bohuzel se obavam ze to bude minimalne 1mA, protoze mezi 3,3V VDD a GND je pripojena pres 2K odpor cervena LED, ktera sviti neustale i kdyz je procesor v deep sleep modu (tedy jen LED bude mit odhadem tak 0,8mA).
    MF Avatar of author Spotřeba při spánku? 26/07/2021 07:37
    Dobrý den, tento údaj bohužel nevíme. Na stránkách výrobce jsme tento údaj nedohledali a osobně jej takto otestován nemáme.
