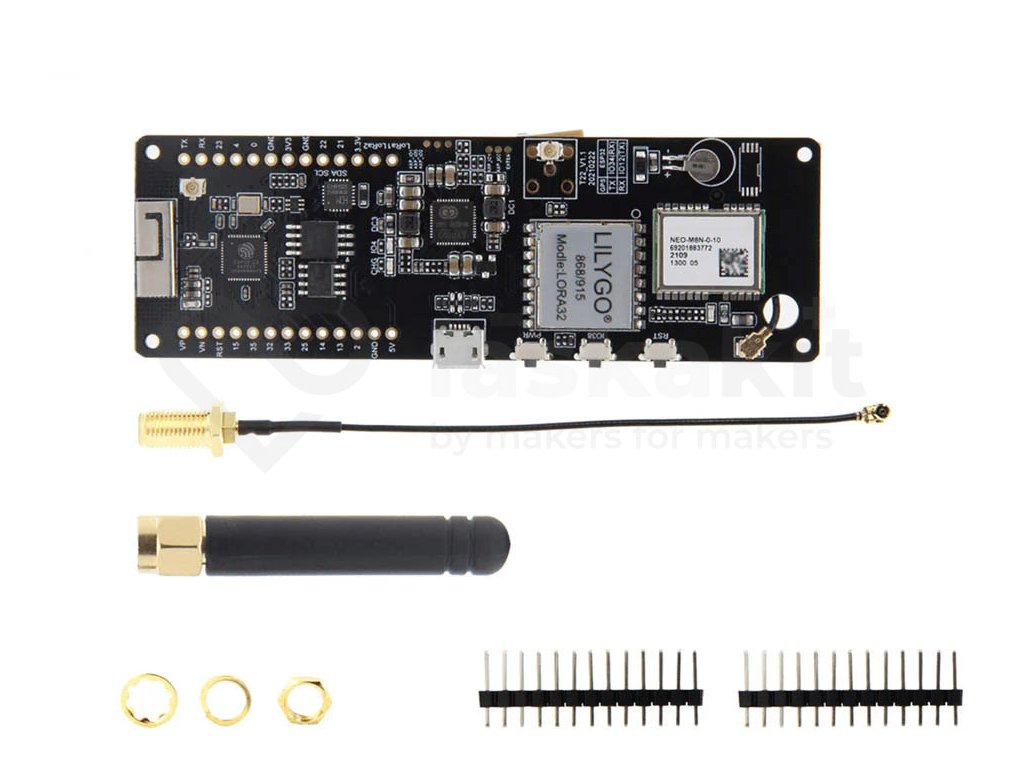

LilyGO TTGO T-Beam v1.2 LoRa32 GPS NEO-6M 868MHz WiFi Module

Code: LA100118B
Meshtastic
Brand: LilyGO
€54,07 €44,69 excl. VAT
Skladem (8 pcs)
Delivery to:
16/12/2024

LilyGO TTGO T-Beam v1.2 LoRa32 is a development board designed for Internet of Things (IoT) projects that combines GPS, LoRa communication module and ESP32 microcontroller.

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

LilyGO TTGO T-Beam v1.2 LoRa32 is a development board designed for Internet of Things (IoT) projects that combines GPS, LoRa communication module and ESP32 microcontroller.

Specifications:

  • Version: REV1.2
  • Wi-Fi & Bluetooth
  • 8MB PSRAM & 4MB Flash
  • 3D Antenna
  • LoRa connector: IPEX
  • LoRa chip: SX1262
  • Working voltage: 1.8~3.7v
  • Acceptable current: 10~14mA
  • Transmit current:
    • 120mA@+20dBm
    • 90mA@+17dBm
    • 29mA@+13dBm
  • Operating frequency: 433/470MHz(433HMz version) /868M/915M(868MHz version)
  • Transmit power: +20dBm
  • Receive sensitivity
    • :-139dBm@LoRa &62.5Khz&SF=12&146bps
    • 136dBm@LoRa &125Khz&SF=12&293bps
    • 118dBm@LoRa &125Khz&SF=6&9380bps
    • 123dBm@FSK&5Khz&1.2Kbps
  • Frequency error: +/-15KHz
  • FIFO space : 64Byte
  • Data rate:
    • 1.2K~300Kbps@FSK
    • 0.018K~37.5Kbps@LoRa
  • Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK
  • Interface form: SPI
  • Sleep current:0.2uA@SLEEP
  • 1.5uA@IDLE
  • Operating temperature: -40℃- +85℃

lilygo-ttgo-t-beam-lora32-gps-neo-6m

Delivery components:

  • 1pc LilyGO TTGO T-Beam LoRa32 GPS NEO-6M 868MHz WiFi Module
  • 1 pc GPS Antenna
  • 1pc 868MHz Antenna

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: ESP Development Boards
Warranty: 2 years
Weight: 0.035 kg
Type: ESP
Logical levels: 3.3V
I/O pins: 12
PWM pins: 12
ADC pins: 7
Frequency: 40MHz
Flash memory: 4MB
SRAM memory: 520kB
EEPROM memory: Ne
Connector with battery charger: Yes
Microcontroller: ESP32
Converter: CH340
Bluetooth: Yes
WiFi: Yes
GPS: Yes

Be the first who will post an article to this item!

Do not fill out this field:
Do not fill out this field:
H Avatar of author Meshtastic 31/05/2024 14:25
Dobrý den. Jsou nějaké zkušenosti s provozováním tohoto module v Meshtastic síti?
Reply
J Avatar of author Jde tam pripojit displej? 23/04/2024 14:36
Jaky displej k tomu jde pripojit (dokoupit) ?
Reply
J Avatar of author display 17/06/2022 21:21
Dobry den, je prosim soucasti baleni i display k vlastnimu pripajeni? Diky. J.
Reply
MF Avatar of author display 20/06/2022 07:28
Dobrý den, displej není součástí balení.
M Avatar of author Lze to spojit s mobilním zařízením? 20/11/2021 22:53
Zdravím, rád bych se zeptal, zda-li lze tuto zařízení spojit s mobilním telefonem? Děkuji
Reply
RK Avatar of author BT 24/01/2022 11:37
Ano, BT je na tomto zařízení k dispozici. Používá se například spolu s firmwarem meshtastic.
MF Avatar of author Lze to spojit s mobilním zařízením? 22/11/2021 07:19
Dobrý den, vzhledem k tomu, že je na modulu mikrokontroler ESP32, který obsahuje i Bluetooth, tak by to mělo být možné. Otestováno to však nemáme.
