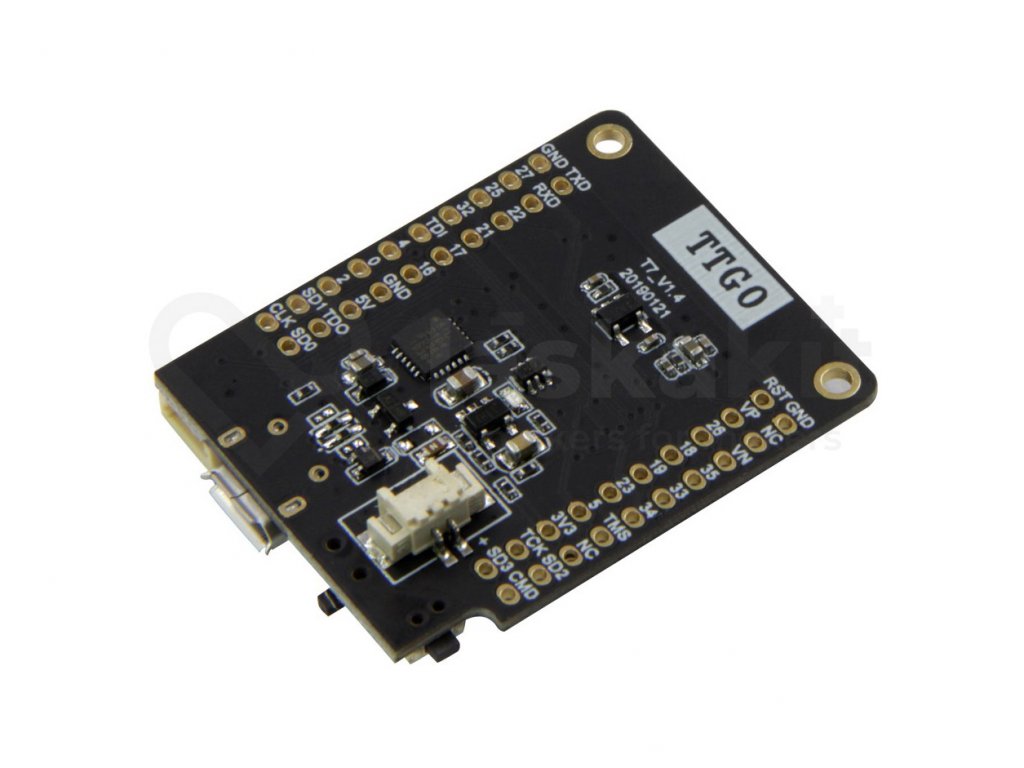

LilyGO TTGO Mini32 ESP32-WROVER-B WiFi Module

Code: LA100080
€17,84 €14,74 excl. VAT
Skladem (5 pcs)
Delivery to:
16/12/2024

Board from LilyGO TTGO dimensionally similar to WeMoss D1 Mini with ESP32-WROVER-B module for wireless communication using WiFi and Bluetooth.

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

LilyGO TTGO Mini32 ESP32-WROVER-B WiFi Module

Specifications:

Hardware Specifications
Chipset ESPRESSIF-WROVER-B 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASH QSPI flash 4MB / PSRAM 8MB
SRAM 520K SRAM
Button reset
Power indicator lamps red
USB to TTL CP9102F
Modular interface UART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、capacitor touch sensor、ADC、DACLNA pre-amplifier
On-board clock 40MHz crystal oscillator
Working voltage 2.7V-3.6V
Working current about 30mA
Sleep current 10uA
Working temperature range -40℃ ~ +85℃
Size&weight 40.27mm*31.07mm*8.13mm(6.42g)
Power Supply Specifications
Power Supply USB 5V/1A
Charging current 500mA
Battery 3.7V lithium battery
Wi-Fi Description
Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
Communication distance 300m
Bluetooth Description
Protocol meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency
Software specifications Description
Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA(Through network/host to download and write firmware)
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction set, cloud server, android/iOS app
OS FreeRTOS

TTGO_Mini32-T7_pinout

Included in delivery:

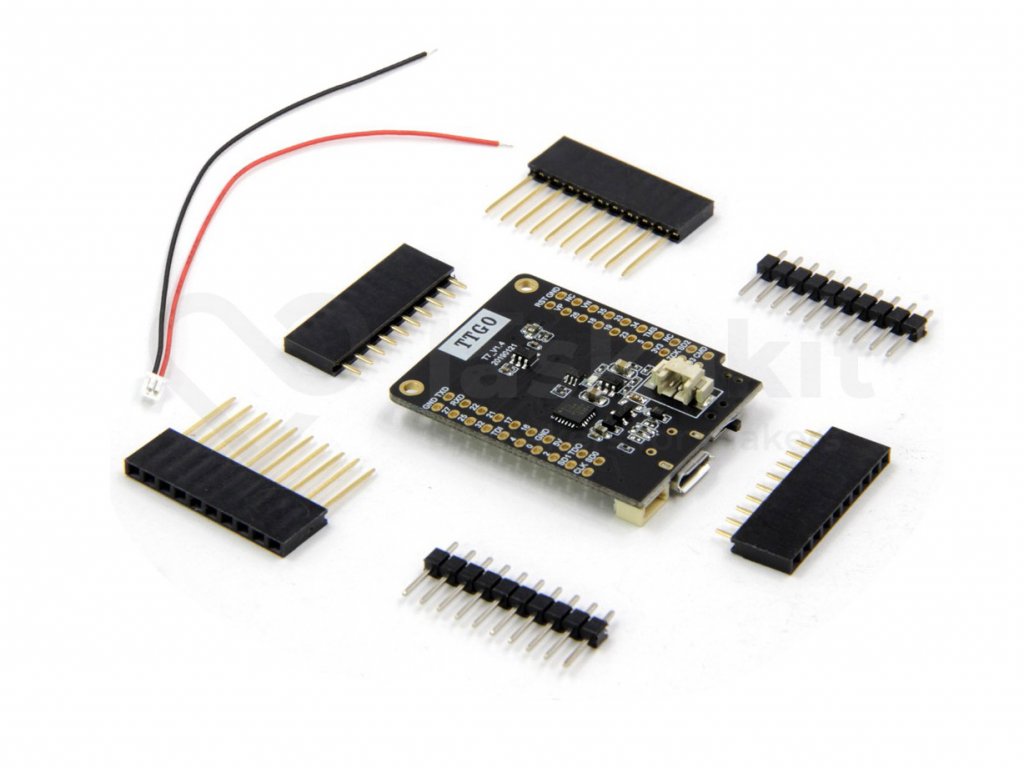

  • 1pc LilyGO TTGO Mini32 ESP32-WROVER-B WiFi Module

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: ESP Development Boards
Warranty: 2 years
Weight: 0.013 kg
Type: ESP
Logical levels: 3.3V
I/O pins: 18
PWM pins: 18
ADC pins: 11
Frequency: 40MHz
Flash memory: 4MB
SRAM memory: 8.5MB
EEPROM memory: Ne
Connector with battery charger: Yes
Microcontroller: ESP32
Converter: CP2104
Bluetooth: Yes
WiFi: Yes

Be the first who will post an article to this item!

Do not fill out this field:
Do not fill out this field:
I Avatar of author LilyGO TTGO Mini32 ESP32-WROVER-B 02/04/2023 14:37
Kúpil som si tento modul, lebo som potreboval vyriešiť problém s nedostatkom RAM, pri svojom projekte s pythonom. Nepodarilo sa mi však tento modul spojiť s PC, nevie nájsť ovladač a ledka signalizujúca komunikáciu stále bliká. Predpokladám, že je vadný USB driver.
Reply
I Avatar of author LilyGO TTGO Mini32 ESP32-WROVER-B 03/04/2023 16:09
Ešte raz som sa večer lupou pozrel na ten driver a zistil som, že je to CH9102F. Stiahol som ovladač a nainštaloval ho. Všetko funguje Ok.
KL Avatar of author LilyGO TTGO Mini32 ESP32-WROVER-B 03/04/2023 07:22
Přidal jsem informace o převodníku, v nové verzi tam CH9102F
