LilyGO TTGO LoRa32 T3_V1.6 868Mhz 0.96" SMA WiFi Module

Code: LA100094
€37,75 €31,20 excl. VAT
Skladem (20 pcs)
Delivery to:
16/12/2024

LilyGO TTGO LoRa32 T3_V1.6 868Mhz 0.96" SMA WiFi Module

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

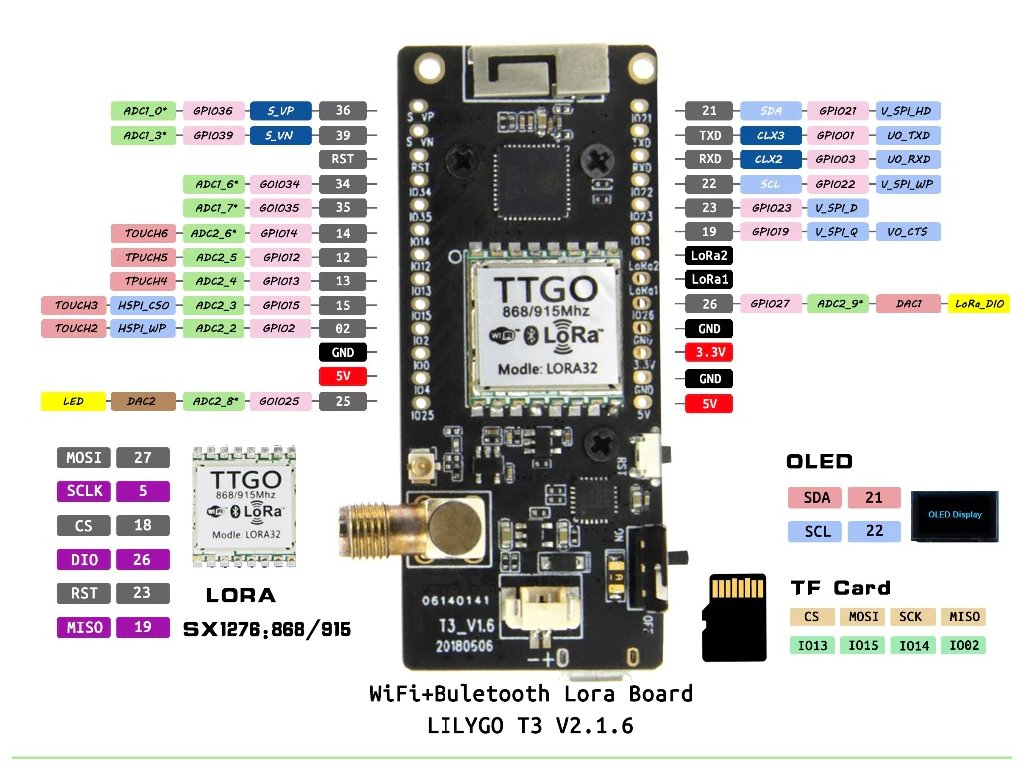

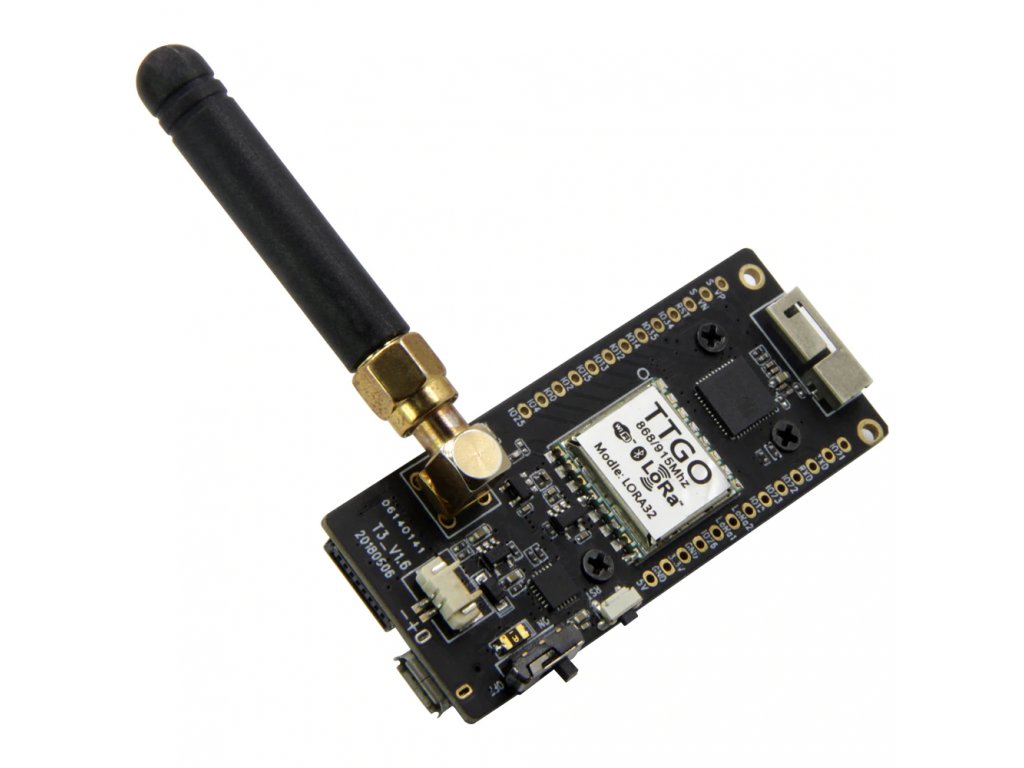

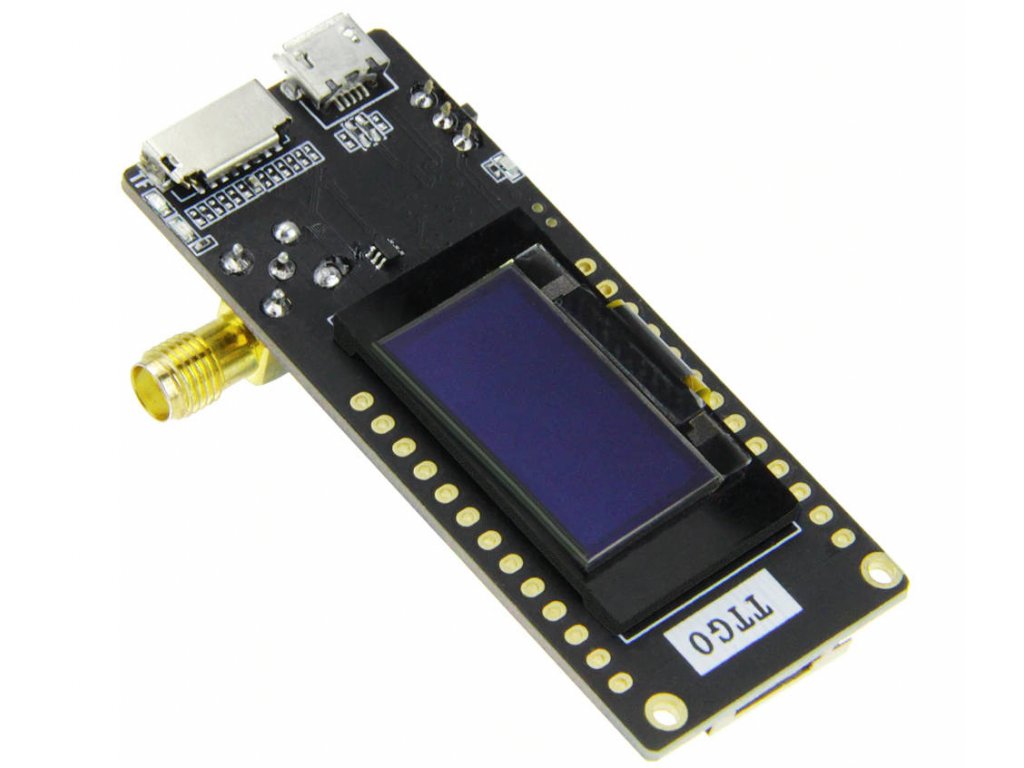

LoRa IoT platform with integrated Bluetooth and WIFI ESP32 moduleand 0.96" OLED display.

Specifications:

  • Working voltage:8~3.7v
  • Acceptable current: 10~14mA
  • Transmit current:
    • 120mA@+20dBm
    • 90mA@+17dBm
    • 29mA@+13dBm
  • Operating frequency: 868MHz
  • Transmit power: +20dBm
  • Receive sensitivity:
    • -139dBm@LoRa &62.5Khz&SF=12&146bps
    • -136dBm@LoRa &125Khz&SF=12&293bps
    • -118dBm@LoRa &125Khz&SF=6&9380bps
    • -123dBm@FSK&5Khz&1.2Kbps
  • Frequency error: +/-15KHz
  • FIFO space:64Byte
  • Data rate:
    • 2K~300Kbps@FSK
    • 018K~37.5Kbps@LoRa
  • Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK
  • Interface form:SPI
  • Sleep current:
    • 2uA@SLEEP
    • 5uA@IDLE
  • Operating temperature: -40℃- +85℃
  • Digital RSSI function
  • Automatic frequency correction
  • Automatic gain control
  • Fast wake-up and frequency hopping
  • Highly configurable data packet handler
  • SMA Antenna
  • TP4054

Delivery components:

  • 1pc LilyGO TTGO LoRa32 T3_V1.6 868Mhz 0.96" SMA WiFi Module
  • 1pc Cable with battery connector
  • 1pc Antenna

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: ESP Development Boards
Warranty: 2 years
Weight: 0.021 kg
Type: ESP
Logical levels: 3.3V
I/O pins: 12
PWM pins: 12
ADC pins: 7
Frequency: 40MHz
Flash memory: 4MB
SRAM memory: 520kB
EEPROM memory: Ne
Connector with battery charger: Yes
Microcontroller: ESP32
Converter: CH340
Bluetooth: Yes
WiFi: Yes
5
2x
4
0x
3
0x
2
0x
1
0x
Do not fill out this field:
5
BD Avatar of author | 06/10/2021
maximálne spokojný
5
JU Avatar of author | 27/04/2020
Jasan, je to konečně jednoduchý modul pro práci s LoRa či LoRaWan
Do not fill out this field:
OD Avatar of author Velmi vážná chyba v návrhu desky !!! 05/06/2020 23:32
TTGO v2.1. 1.6 má chybu v nabíjecí části desky, kdy 5V z USB portu je přivedeno přímo na připojenou Li-Pol baterii !!! To znamená, že je možné připojit baterii, ale V ŽÁDNÉM PŘÍPADĚ nesmí být zároveň nabíjena !!! About the lipo charging circuit problem (Important update in 10th September 2018): After V2.1-1.5 was upgraded to V2.1-1.6, after our tests, the diode components should be used on the charging circuit, but we used a fuse, the diode is unidirectional, and the fuse is bidirectional. This causes the USB voltage to pass directly to the battery. After a long woking time, the battery may become hot or burn, so you cannot use this V2.1-1.6 version to charge the battery! ! ! (Battery can be used, but the battery cannot be charged) If you want to use this V2.1-1.6 version to charge the battery, you need to replace the fuse in the figure with a diode (Type: BS5819 SOD123 1A) to use the charging function normally. The following is an upgraded picture. Potvrzeno přímo výrobcem zde: https://www.banggood.com/LILYGO-TTGO-LoRa32-V2_1-868Mhz-ESP32-LoRa-OLED-0_96-Inch-SD-Card-bluetooth-WIFI-Wireless-Module-p-1327406.html?akmClientCountry=CZ&&cur_warehouse=CN Via: https://www.thethingsnetwork.org/community/berlin/post/warning-attention-users-of-ttgo21-v16-boards-labeled-t3_v16-on-pcb-battery-exploded-and-got-on-fire
Reply
MF Avatar of author Velmi vážná chyba v návrhu desky !!! 08/06/2020 10:43
Dobrý den, děkujeme za informaci, zkontrolovali jsme skladové zásoby a všechny kusy, které momentálně máme jsou v pořádku – mají diodu, ne pojistku. Pouze ve fotkách máme převzatou chybnou fotku s pojistkou, fotku změníme.
