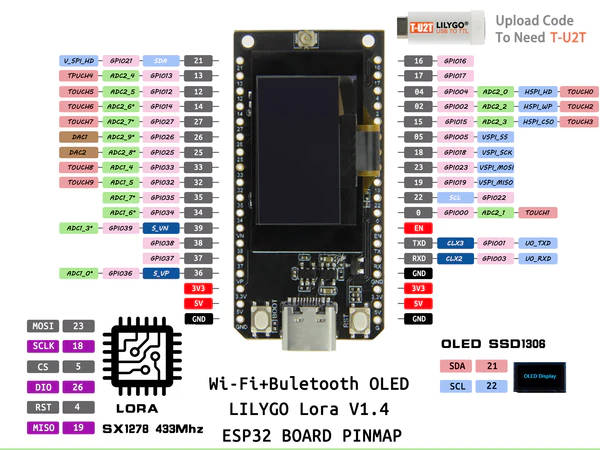

LilyGO TTGO LoRa32 SX1278 433Mhz WiFi Module, T-U2T

Product detailed description

LoRa IoT platform with integrated Bluetooth and WIFI module ESP32.

Requires special programmer LilyGO T-U2T. If you don't have the option of this programmer, we have prepared an adapter that connects to our programmer and thus replaces the original T-U2T programmer.

ATTENTION! The board has a non-standard USB-C connector due to the use of the T-U2T programmer, so we recommend not to connect a USB-C data cable. Just a cable that carries power only.

Specifications:

• Working voltage: 3.3 - 7v
• Acceptable current: 10~14mA
• Transmit current:
  • 120mA@+20dBm
  • 90mA@+17dBm
  • 29mA@+13dBm
• Operating frequency: 433MHz
• Transmit power: +20dBm
• Receive sensitivity:
  • -139dBm@LoRa &62.5Khz&SF=12&146bps
  • -136dBm@LoRa &125Khz&SF=12&293bps
  • -118dBm@LoRa &125Khz&SF=6&9380bps
  • -123dBm@FSK&5Khz&1.2Kbps
• Frequency error: +/-15KHz
• FIFO space：64Byte
• Data rate：
  • 2K~300Kbps@FSK
  • 018K~37.5Kbps@LoRa
• Modulation Mode ：FSK,GFSK,MSK,GMSK,LoRa TM，OOK
• Interface form：SPI
• Sleep current：
  • 2uA@SLEEP
  • 5uA@IDLE
• Operating temperature: -40℃- +85℃
• Digital RSSI function
• Automatic frequency correction
• Automatic gain control
• Fast wake-up and frequency hopping
• Highly configurable data packet handler
• SMA Antenna
• TP4054

Delivery components:

• 1pc LilyGO TTGO LoRa32 SX1278 433Mhz WiFi Module, T-U2T
• 1pc Cable with battery connector
• 1pc Antenna

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
